Rockwell Automation Publication 20B-IN017B-EN-P - September 2011 37
Component Replacement Procedures Chapter 3

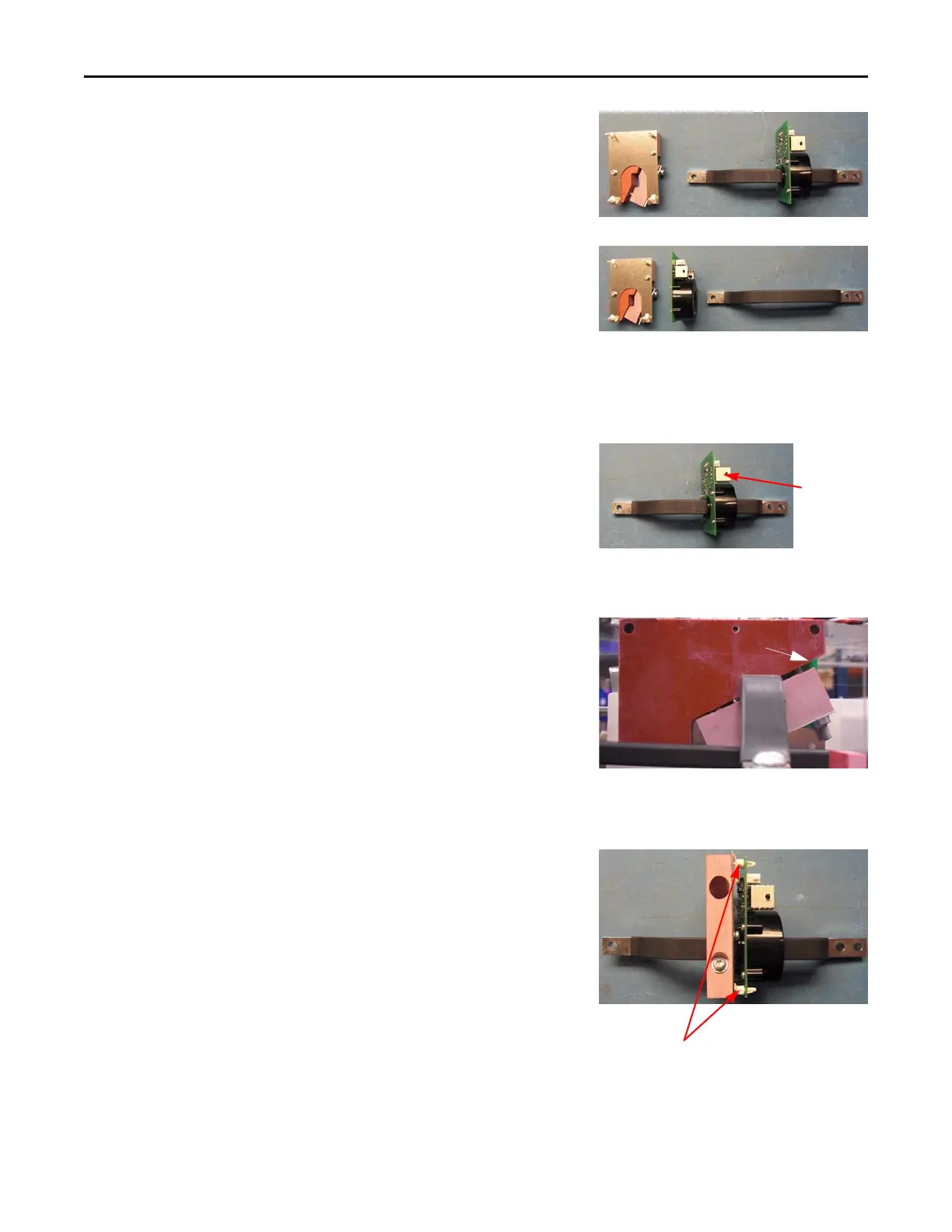

9. Remove transducer
assembly (transducer and
board) from the bus bar by
sliding the gentle bend of
the bus bar (the end with
only one screw hole)
through the assembly,
taking care not to damage
the insulation on the bus
bar or loosen the wiring.
Discard old transducer.
Install Components
1. Position the mounting bar with the end with two screw holes to your
right.
2. Orient the transducer with
the wiring socket away
from you and its board to
your left. Slide transducer
onto the bus bar by sliding
the gentle bend of the bus
bar through the assembly, taking care not to damage the insulation on
the bus bar and not to loosen the wiring.
3. Orient the transducer
mounting clamp with the
smaller section on the
bottom and the notch
toward you.
4. Slide the mounting clamp
onto the bus bar by sliding
the gentle bend of the bus
bar (the end with only one screw hole) through the assembly, taking care
not to damage the insulation on the bus bar or loosen the wiring.
5. Attach the new transducer
to the spacers. Verify that
each spacer locks. Tighten
the clamp screws of the
mounting bracket finger
tight.
6. Position the CT assembly
and bus bar into place.
Tighten its three screws
and torque to 1.6 N•m (14
lb•in.) Use a colored
marker or torque seal to mark each screw after torquing so you know
when all are done and to indicate signs of any tampering.
Wiring
Socket
Notch
Spacers
To Next Page
