Chapter 3 Mechanical and Electrical Installation

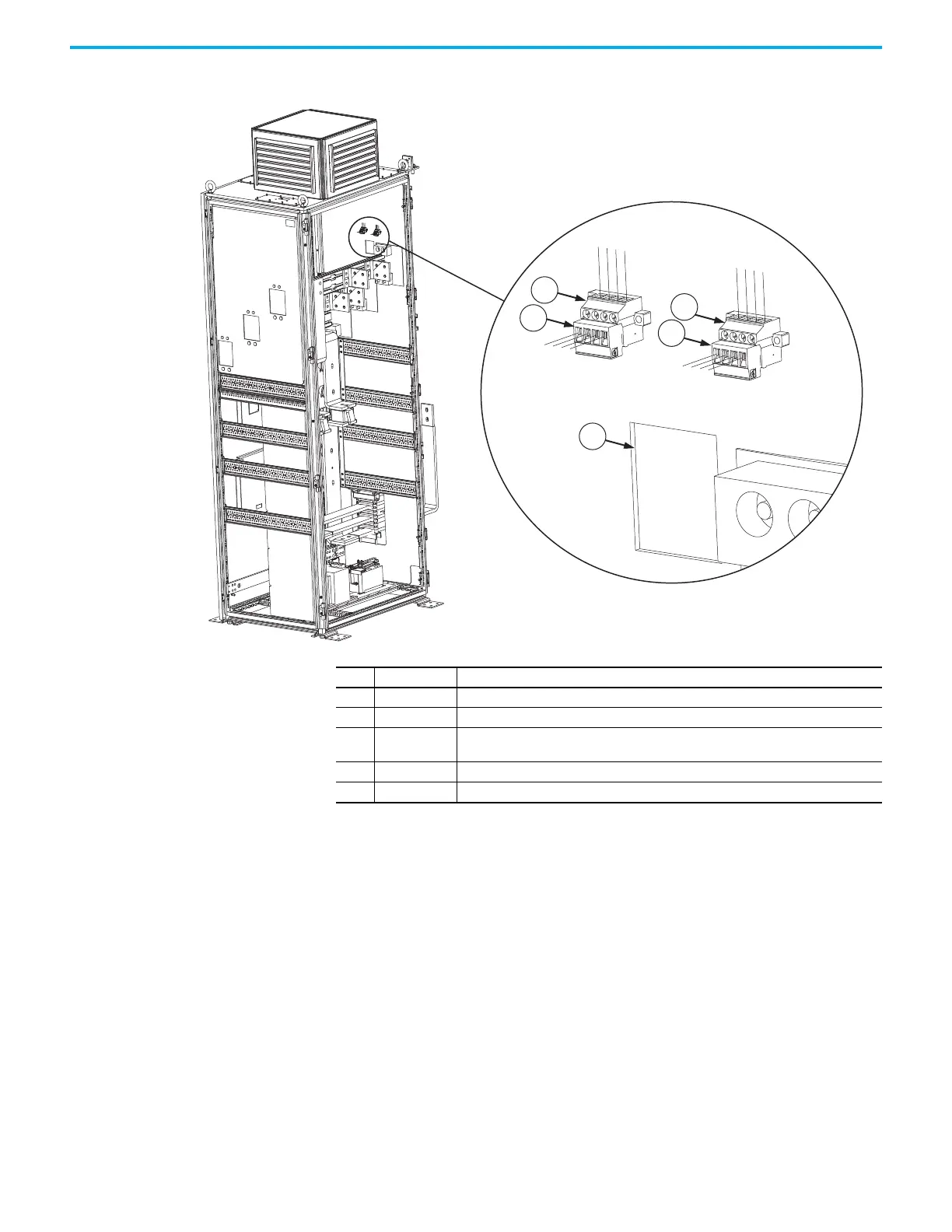

Figure 89 - Configured Bay Control Connections on the Frame 9 Configured Input Bay
Item Identification Description
1 PLUG2 Four-pole socket connector 120V AC
2 PLUG2 Four-pole plug connector 120V AC. Must connect to item 1 during installation.
3—
Cutout for configured bay control connector wires to route between the configured input
bay and the drive input bay
4 PLUG1 Four-pole plug connector 24V DC. Must connect to item 5 during installation.
5 PLUG1 Four-pole socket connector 24V DC
