Operating Menus CMU
1100.4903.12 3.4 E-9
Operating Menus
The CMU offers a large variety of operating modes and applications. To ensure quick and easy
operation, uniform menus have been implemented. They can be divided into three types:
Measurement menu Offers the most important settings controlling a measurement and displays the
main results.
Popup menu Provides extended settings for a measurement menu or function group.
Graphical menu Displays a measurement trace together with settings and further measurement
results, contains softkeys and hotkeys used to access measurement control
settings.
Measurement Menus
A measurement menu provides the basic settings controlling a measurement and at the same time
displays the main results. Together with the graphical measurement menus, measurement menus
constitute the basic level in the operating system of the CMU. They can only be replaced by other
measurement menus or graphical measurement menus. To change the menu, the hotkeys at the lower
edge of the measurement menu are used.
Header with
configuration
softkeys
Hotkey bar
Output fields
for
measurement
results
Connection
Control
Hotkey bar
Measurement
control softkey
and settings
table
Additional
softkeys for
important
settings

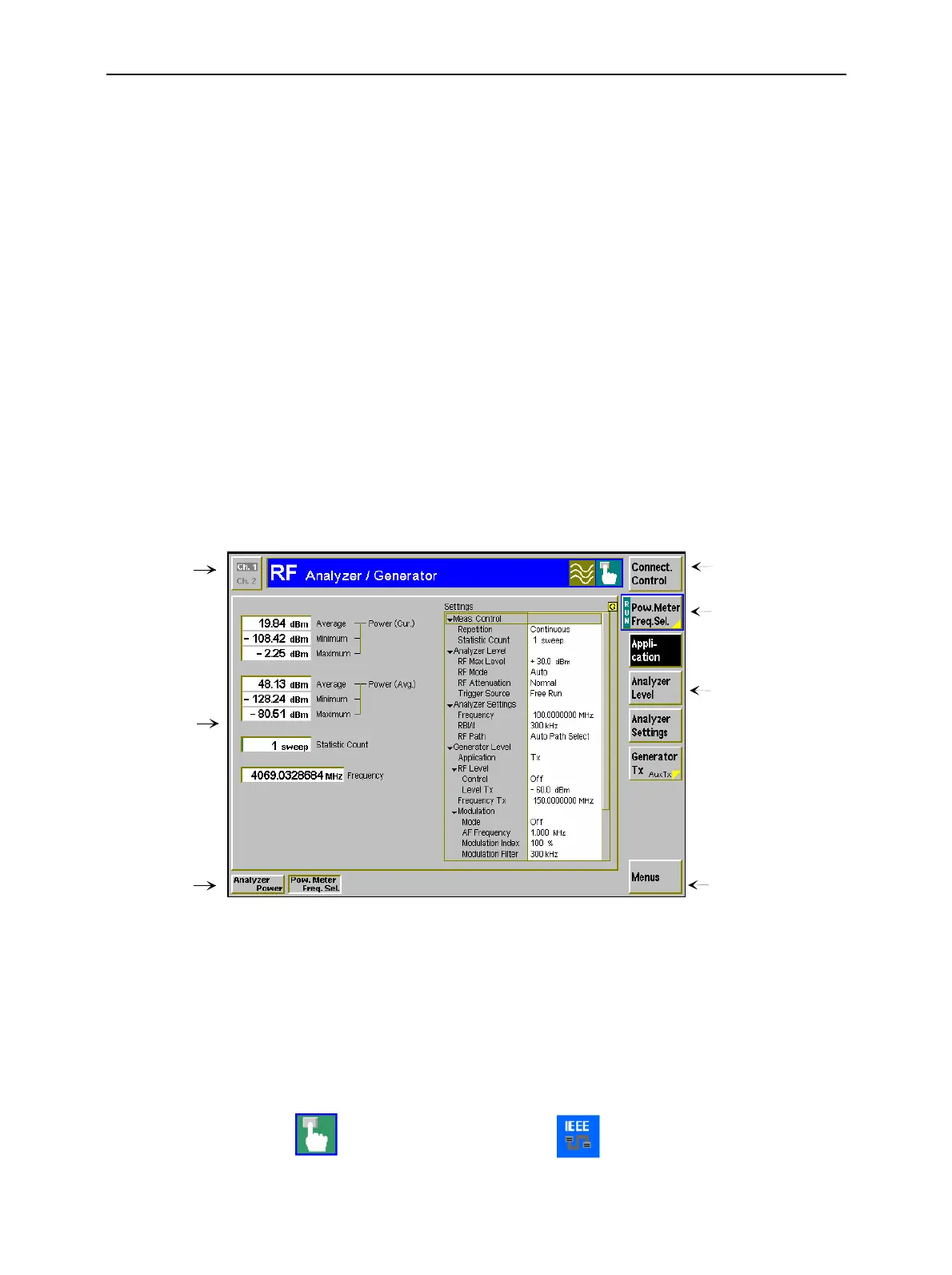

Fig. 3-2 Example of a measurement menu
Header
The header consists of the heading and the symbols for the operating mode and
test mode (signalling state, if applicable in the function group).
• The heading briefly describes the purpose of the menu (e.g. type of settings,
measurement group, function group, etc.).
• The operating mode, i.e. the type of operation/control of the CMU, is
indicated by the symbols at the right edge of the header. The following
operating modes are available:
Manual mode
Remote control via
IEC-bus
