Rohde & Schwarz CMU 300 - Fig. 3-3 Example of Graphical Measurement Menu; Graphical Measurement Menus

CMU Operating Menus
1100.4903.12 3.7 E-9
Graphical Measurement Menus
The CMU displays arrays of measurement results in the form of two-dimensional diagrams. In order to
obtain additional space for the test diagram, no settings table is displayed. The header and the
functionality of the softkeys and associated hotkeys is identical to the measurement menu; see section
Measurement Menus on page 3.4.
Header with
configuration
softkeys
Test diagram
Hotkeys for
Marker
configuration
Measurement
control
softkey
Active
softkey

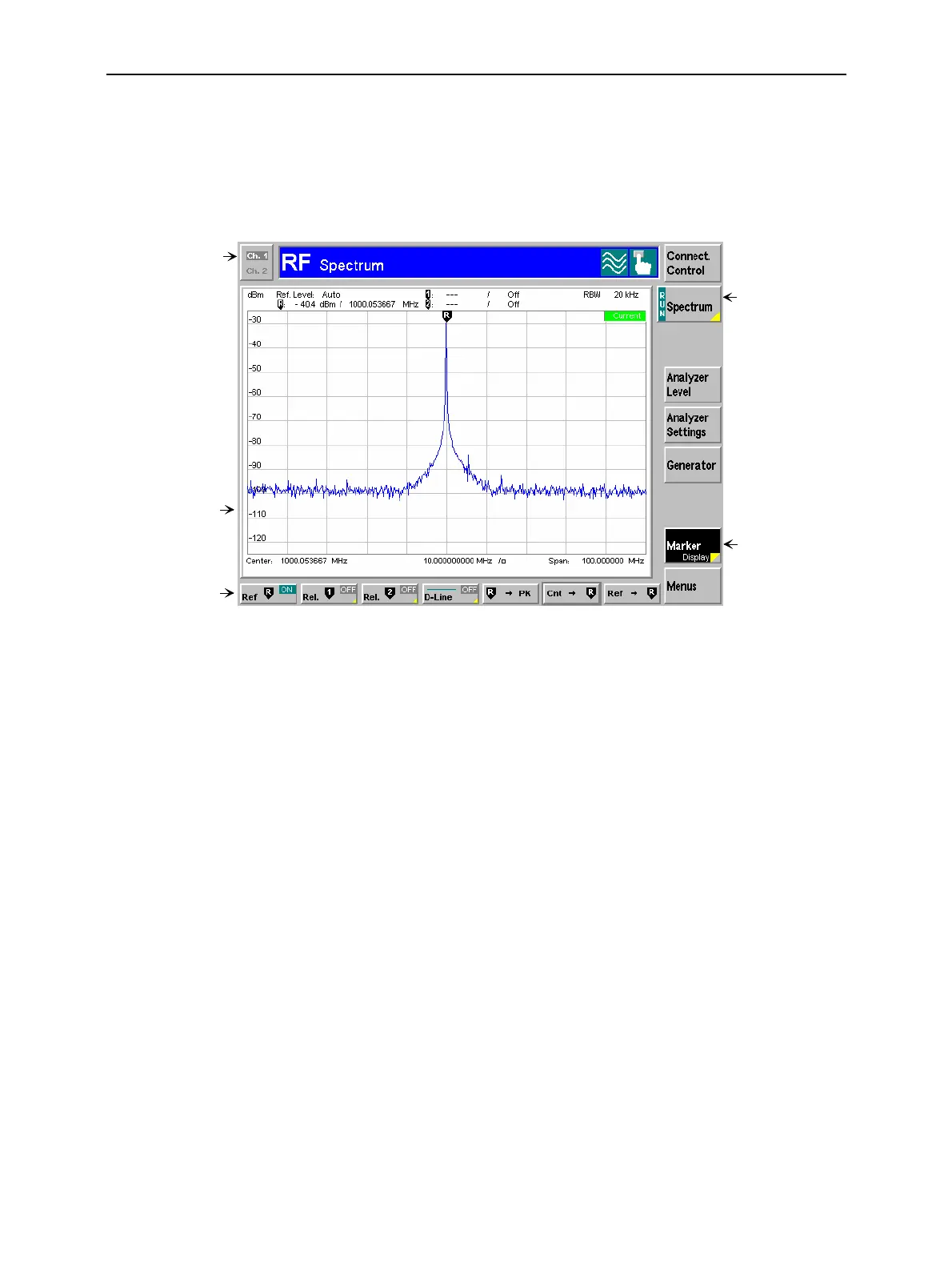

Fig. 3-3 Example of graphical measurement menu
