Using Various Material Widths
(Loading Position of Material)

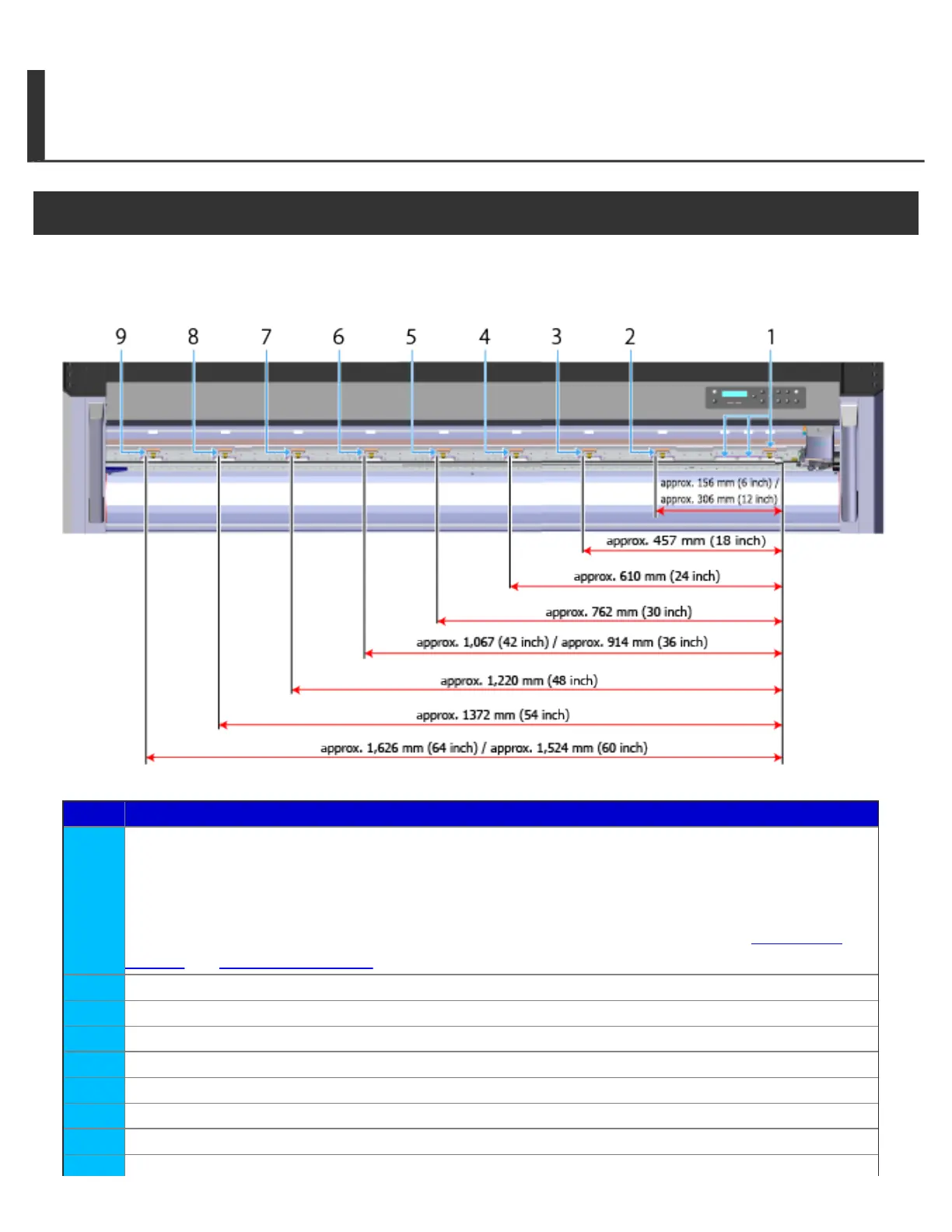

Loading Position of Material
Set the pinch rollers so they are inside the grit patterns.
Number Description
1
Use the right pinch roller within this range.
When the left edge of the material is placed on one of the grit rollers from 2 to 9, load the material so
that its right edge is within the range of this wide grit roller.
Load the material in this manner, and then slide the right pinch roller to a position approximately 10
mm inside the right edge of the material. For details on how to load the material, see "Loading Roll
Material" or "Loading Flat Material."
2 The position of the left pinch roller for material having widths of 156 mm and 306 mm.
3 The position of the left pinch roller for material having a width of 457 mm.
4 The position of the left pinch roller for material having a width of 610 mm.
5 The position of the left pinch roller for material having a width of 762 mm.
6 The position of the left pinch roller for material having widths of 914 mm and 1,067 mm.
7 The position of the left pinch roller for material having a width of 1,220 mm.
8 The position of the left pinch roller for material having a width of 1,372 mm.
9 The position of the left pinch roller for material having widths of 1,524 mm and 1,626 mm.
To Next Page
