Getting Ready

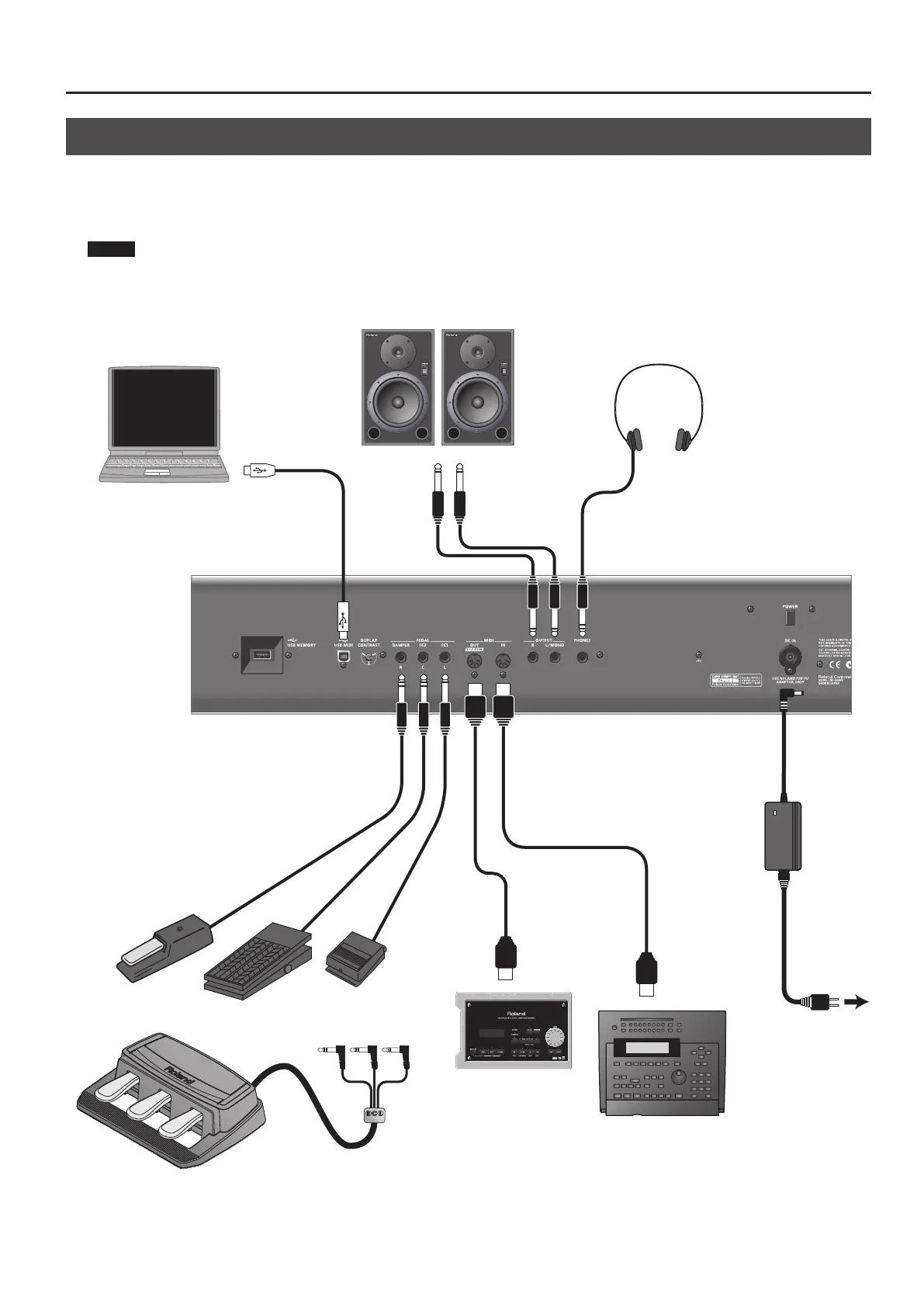

Connecting External Equipment to the RD-300NX
The RD-300NX is not equipped with an amplier or speakers. In order to produce sound, you need to hook up audio equipment such as a monitor
speaker or a stereo set, or use headphones.
* Audio cables, USB cables, MIDI cables, headphones, expression pedals, and USB memory are not included. Consult your Roland dealer if you need
to purchase accessories such as these.
NOTE
To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn o the power on all devices before
making any connections.
Stereo
headphones
Computer
Damper pedal
(DP Series)
Expression pedal (EV-5, EV-7)
or Pedal switch (DP Series)
Monitor speakers
(powered)
MIDI sound module etc.
MIDI sequencer etc.
to Power outlet
MIDI IN
MIDI OUT
RD-300NX Rear Panel
Pedal unit
(RPU-3)
921
