Edit Screen ([EDIT] lit): Setting the Sound Source Parameters for Each Part

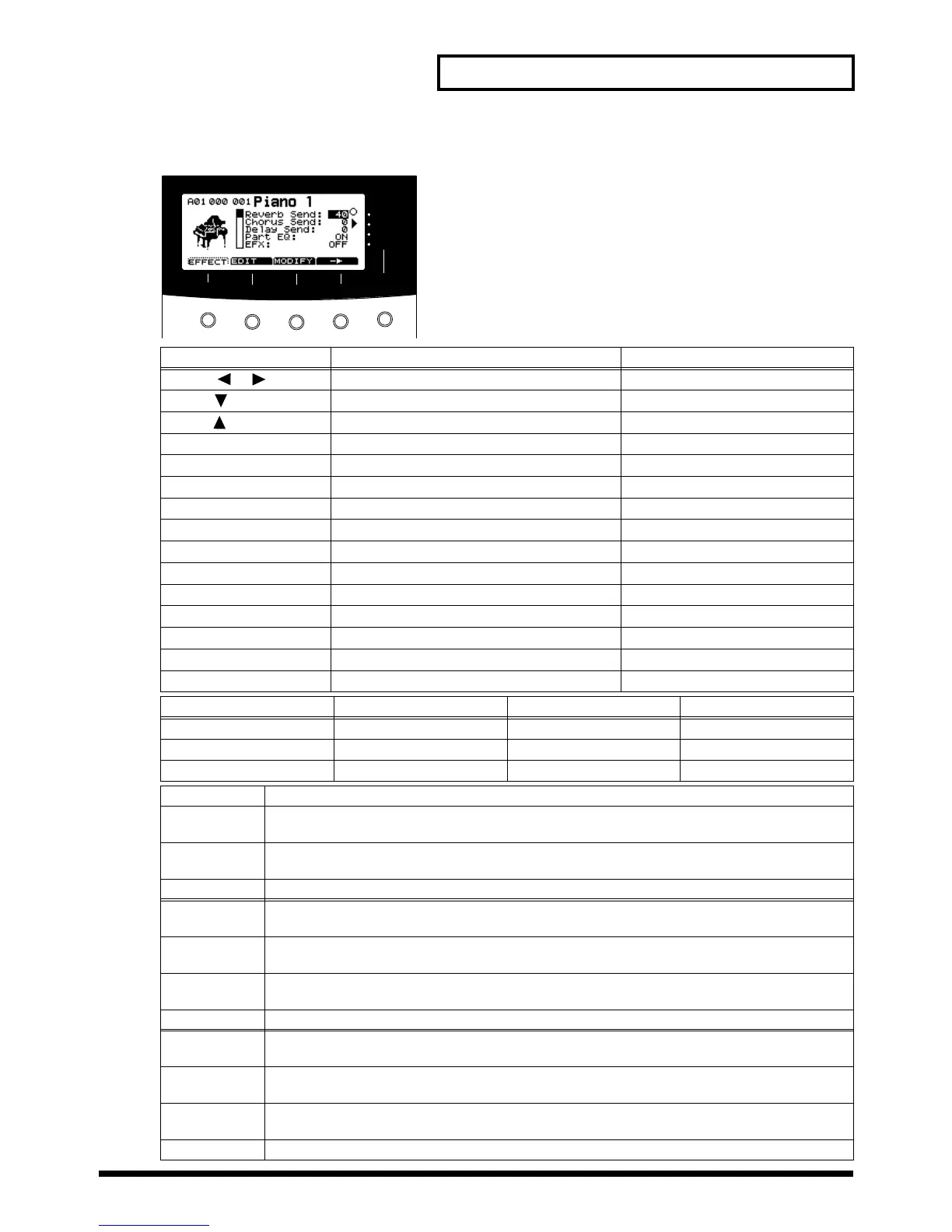

fig.11-8
Button Operation Range of values (bold: default value)
PART [ ] [ ] Selects a part A01 - D16
VAR. [ ] Moves the cursor down
INST [ ] Moves the cursor up
[EXIT] Enters the Part Basic screen
[ENTER] ---
[EDIT] Enters the Part Basic screen
[DRUM] Enters the Drum screen
[EFFECTS] Enters the Effect screen
[SHIFT] ---
[SOLO] Plays only the selected part Off, On
[MUTE] Mutes the selected part Off, On
[DEC] Lowers the value of the selected parameter by 1
[INC] Raises the value of the selected parameter by 1
[DEC] + [INC] Transmits the value of the selected parameter
[INST MAP] Switches the sound map of the selected part SC-8850, SC-55, SC-88, SC-88Pro
[F1] [F2] [F3] [F4]
EFFECT EDIT MODIFY →
S.TUNE MOD BEND →
CAF CC1 U.INST →
[F1] EFFECT Sets EFFECT parameters (Reverb Send, Chorus Send, Delay Send, Part EQ, EFX)
[F2] EDIT
Sets EDIT parameters (Part Level, Part Pan, Rx MIDI CH, Part Mode, M/P Mode, Key Shift, Fine Tune,
Bend Range, Mod Depth, Velo Depth, Velo Offset, Key Range L, Key Range H, CC1 C.Number, Out Asgn)
[F3] MODIFY Sets MODIFY parameters (Vib Rate, Vib Depth, Vib Delay, Cutoff Freq, Resonance, Attack Time,
Decay Time, Release Time)
[F4] → Scrolls the screen
[F1] S.TUNE Sets S.TUNE parameters (ScaleTune C, ScaleTune C#, ScaleTune D, ScaleTune D#, ScaleTune E,
ScaleTune F, ScaleTune F#, ScaleTune G, ScaleTune G#, ScaleTune A, ScaleTune A#, ScaleTune B)
[F2] MOD Sets MOD parameters (Mod Range, Mod Cutoff, Mod Amp, Mod LFO Rate, Mod LFO Pitch,
Mod LFO TVF, Mod LFO TVA)
[F3] BEND Sets BEND parameters (Bnd Range, Bnd Cutoff, Bnd Amp, Bnd LFO Rate, Bnd LFO Pitch,
Bnd LFO TVF, Bnd LFO TVA)
[F4] → Scrolls the screen
[F1] CAF Sets CAF parameters (CAf Range, CAf Cutoff, CAf Amp, CAf LFO Rate, CAf LFO Pitch,
CAf LFO TVF, CAf LFO TVA)
[F2] CC1 Sets CC1 parameters (CC1 Range, CC1 Cutoff, CC1 Amp, CC1 LFO Rate, CC1 LFO Pitch,
CC1 LFO TVF, CC1 LFO TVA)
[F3] U.INST Sets U.INST parameters (Vib Rate, Vib Depth, Vib Delay, Cutoff Freq, Resonance, Attack Time,
Decay Time, Release Time) (press [ENTER] to write the settings)
[F4] → Scrolls the screen
SC
-
55
SC
-
88
SC
-
88Pro
PART INSTVAR.
MAP
F1
F2
F3
F4
INST
SC
-
8850
