3-4 Replacing Consumable Parts
Chapter 3 Maintenance and Adjustment

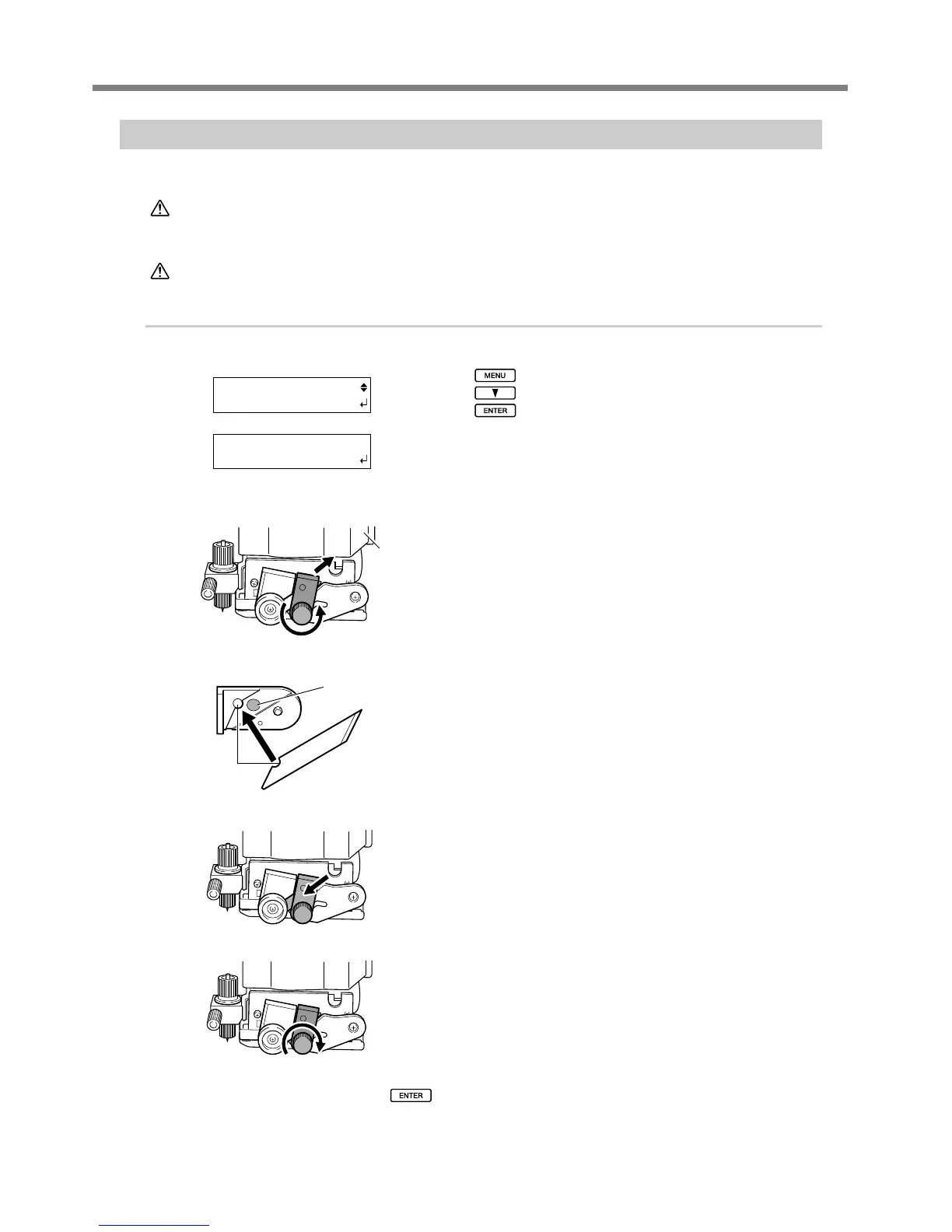

Replacing the Separating Knife
If the separating knife becomes dull, replace it with the included replacement blade.
CAUTION
Be sure to perform operations as specified by these instructions, and never touch
any area not specified in the instructions.
Sudden movement of the machine may cause injury.
CAUTION
Do not touch the tip of the separating knife with your fingers.
Doing so may result in injury.
Procedure
➊
Enter the blade replacement mode.
Press
.
Press
several times.
Press
.
➋
Preparations are complete when this screen appears.
➌
Open the front cover, and remove the component shown
in the figure.
➍
Install a new knife.
The knife is secured in place by the magnet.
➎
Slowly insert it into the groove.
➏
Tighten the screw.
Take care to ensure that the knife does not slip out of
position at this time.
➐
Close the front cover, and press .
1
2
MENU
REPLACE KNIFE
FINISHED?
Cutting
carriage
Magnet
Positioning
groove
1. Loosen the screw until it slips out.
2. Grasp the screw portion, and slowly
pull it out in the direction of the
arrow. When doing this, do not pull
it back toward you.
To Next Page
