Rosco RB48 - Hub Assembly with Brakes

Parts Book 6. 86 ROSCO - A LeeBoy Company

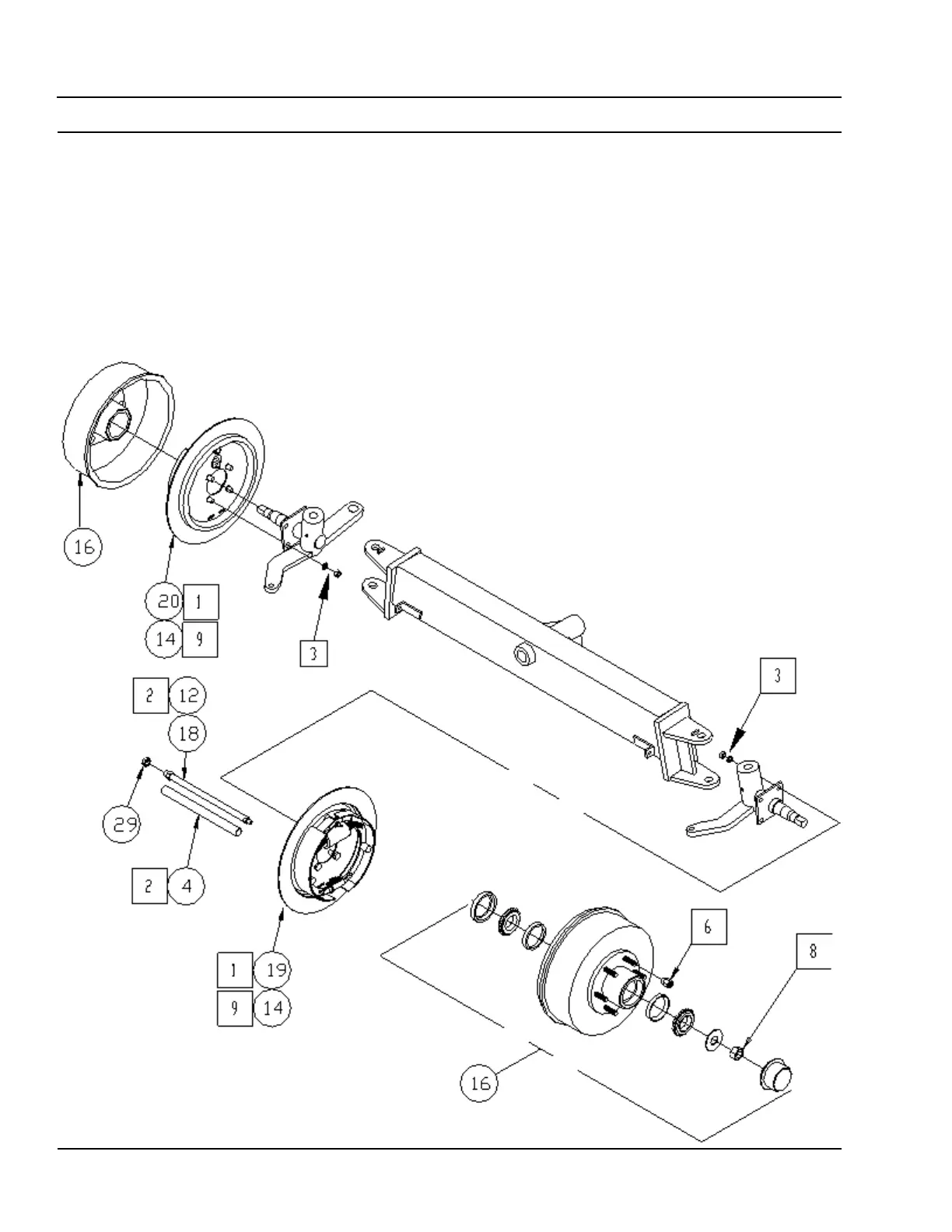

ITEM PART NO. QTY DESCRIPTION
RB48 BROOM
REF.
REV.
OTHER OPTIONAL EQUIPMENT - HUB ASSEMBLY WITH BRAKES
27800
B
27800 HUB ASSEMBLY WITH BRAKES
4 .............. 17552............ 2.00 ............... SLEEVE,BRAKE LINE PROTECTOR
12 ............ 32953 ............ 2.00 ............... BRAKE HOSE ASSY
14 ............ 33707 ............ 1.00 ............... SEALANT,SILICONE,CLEAR
16 ............ 35332 ............ 2.00 ............... HUB ASSY,5-BOLT,5.50 IN BC (Detail Opposite Page)
18 ............ 35401 ............ 4.00 ............... PROTECTIVE COIL,.50,PLASTIC
19 ............ 29168 ............ 1.00 ............... BRAKE ASSY,RH,W/M
20 ............ 29169 ............ 1.00 ............... BRAKE ASSY,LH,W/M
29 ............ 80095 ............ 2.00 ............... NUT,HEX,JAM,.625-18
:
1 APPLY SILICONE SEALANT AT SEAM
BETWEEN BRAKE BACK PLATE (ITEMS 19 & 20)
AND DUST SHIELD (ITEM 2).
2 WRAP BRAKE HOSE ASSEMBLY (ITEM 12)
WITH PLASTIC PROTECTIVE COIL (ITEM 18) AND
ABRASION SLEEVE (ITEM 4).
3 TORQUE TO 50 FT LBS.
6 TORQUE TO 85 FT LBS.
8 TIGHTEN BEARINGS UNTIL THEY DRAG,
THEN BACK OFF TO FIRST COTTER PIN HOLE.
9 PLUG HOLES AND ALL OPEN AREAS THAT
DIRT MIGHT GET INTO WITH SILICONE SEALANT.
