Rosco RB48 - Dashboard Layout

RB48 BROOM
ROSCO - A LeeBoy Company
Operation 3. 4
OPERATION
1. Hour Meter
2. Park Brake Light
3. Ignition Switch
4. Work Lights
5. Beacon Light Switch
6. Head Lights
7. Water Spraybar Switch
8. Horn Switch

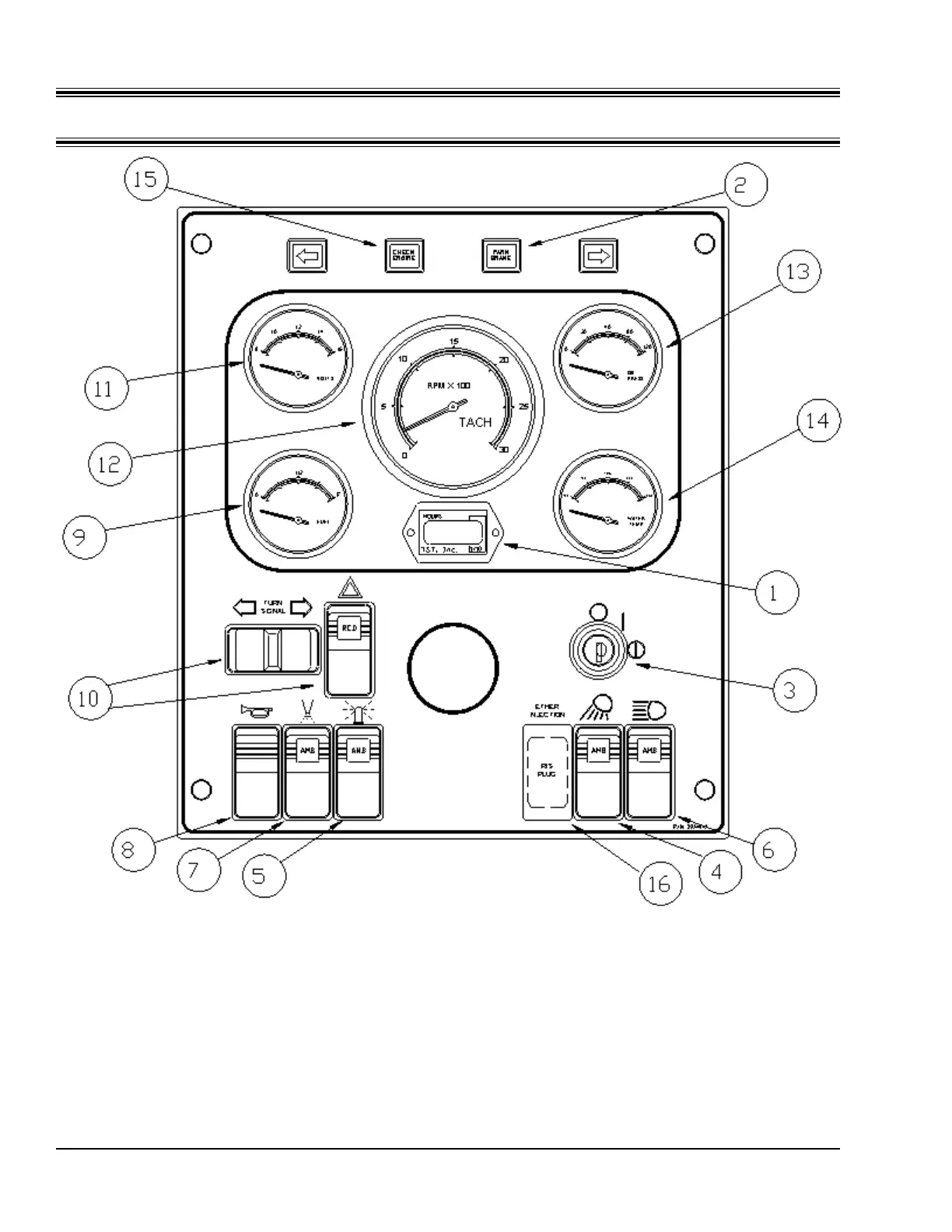

Figure 3-B
Dashboard Layout
9. Fuel Level Gauge
10. Turn Signal with Hazard
11. Ammeter
12. Tachometer
13. Oil Pressure Gauge
14. Water Temperature Gauge
15. Engine Warning Light
16. Ether Injection Switch (Opt.)
