Ross NK-16 - Analog Video Level

3–4 • Installation NK Series User Guide (1.0)

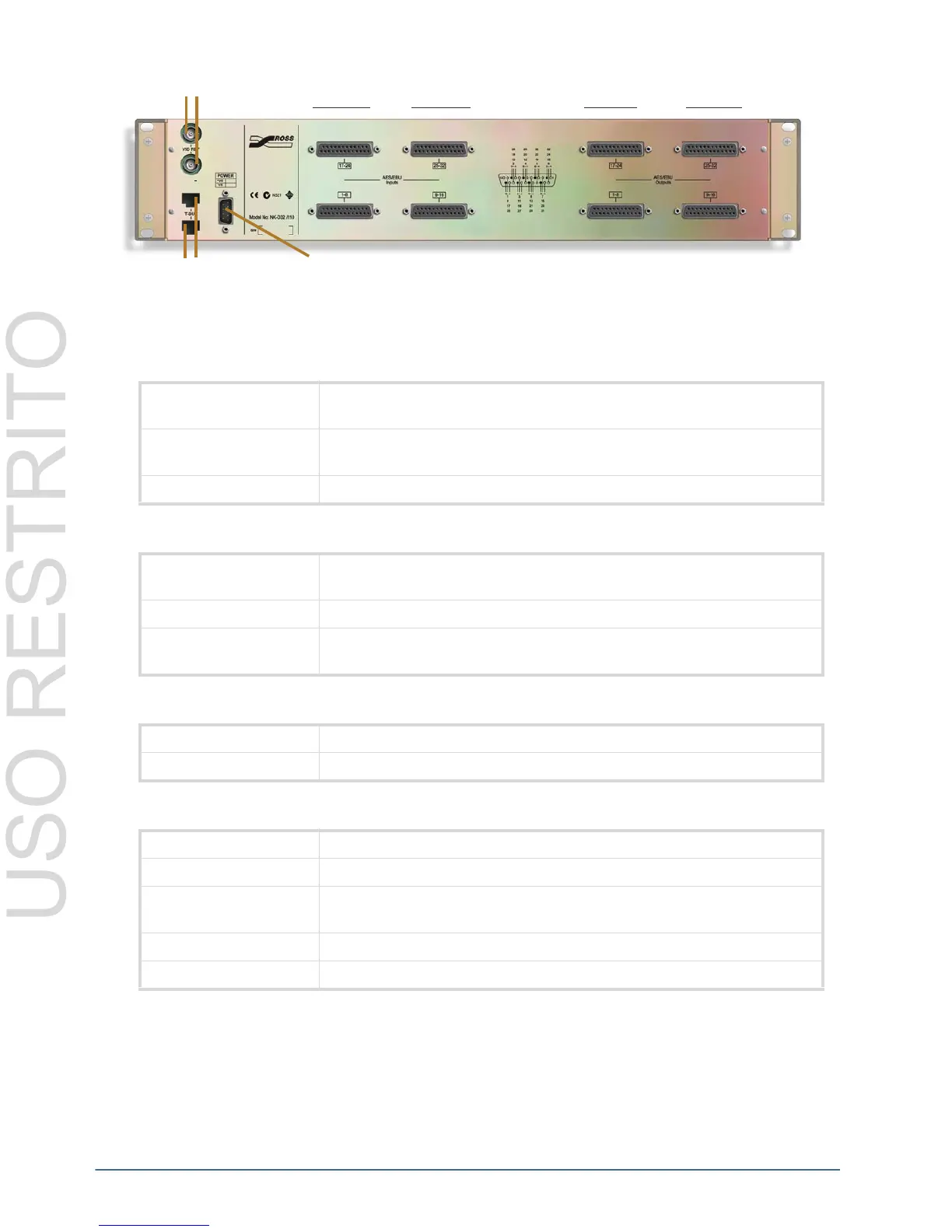

Figure 3.9 NK-D32/110 – 110 Ω, 32x32 Rear IO
Specifications
Specifications are subject to change without prior notice.
Analog Video Level
The Analog Video level of the NK-16 and NK-32 range is a wide bandwidth, high performance router available in
16x4 (NK-V164-HQ), 16x16 (NK-V16-HQ), and 32x32 (NK-V32-HQ) sizes.
Table 3.5 Inputs
Connection 75 Ω BNC (D16/75 and D32/75)
110 Ω DB-25 connectors (D16/110 and D32/110)
Level 1 V p-p (75 Ω)
2-7 V p-p (110 Ω)
Cable EQ Up to 300 m RG59/U
Table 3.6 Outputs
Connection 75 Ω BNC (D16/75 and D32/75)
110 Ω DB-25 connectors (D16/110 and D32/110)
Clocking Non-reclocking
Level 1 V p-p (75 Ω)
3-4 V p-p (110 Ω)
Table 3.7 Performance
Jitter < 2 ns (.013 UI)
Data Rates 32 kHz to 192 kHz
Table 3.8 General
Partitioning Up to 8 partitions with independent level assignment
Configuration Phoenix or web browser via NK-IPS
Dimensions 1 RU x 64 mm deep (NK-D16 and NK-D164)
2 RU x 64 mm deep (NK-D32)
Power Consumption 7.5 W (NK-D16 and NK-D164) 10.5 W (NK-D32)
Power Supply +15 V DC
Video Reference Loop
T-Bus Connections
Inputs
Outputs
Power
