Ross NK-16 - Installation; NK-16, NK-32 and NK-34 Routers

NK Series User Guide (1.0) Installation • 3–1
Installation
NK-16, NK-32 and NK-34 Routers
SDI Video Level
The SDI level of the NK-16 and NK-34 range conforms to SMPTE standard 259M and is available in 16x4
(NK-S164), 16x16 (NK-S16), and 34x34 (NK-S34) sizes.
Multi-Definition Video Level
The Multi-Definition (MD) level of the NK-16 and NK-34 range conforms to SMPTE standards 259M, 292M and
344M, 16x4 (NK-MD164), 16x16 (NK-MD16), and 34x34 (NK-MD34) sizes.
All NK Multi-Definition level routers have a selectable output rise and fall times, via on-board DIP switches; please
refer to “Appendix C: Multi-Definition Router Format Selection” on page 8–1.

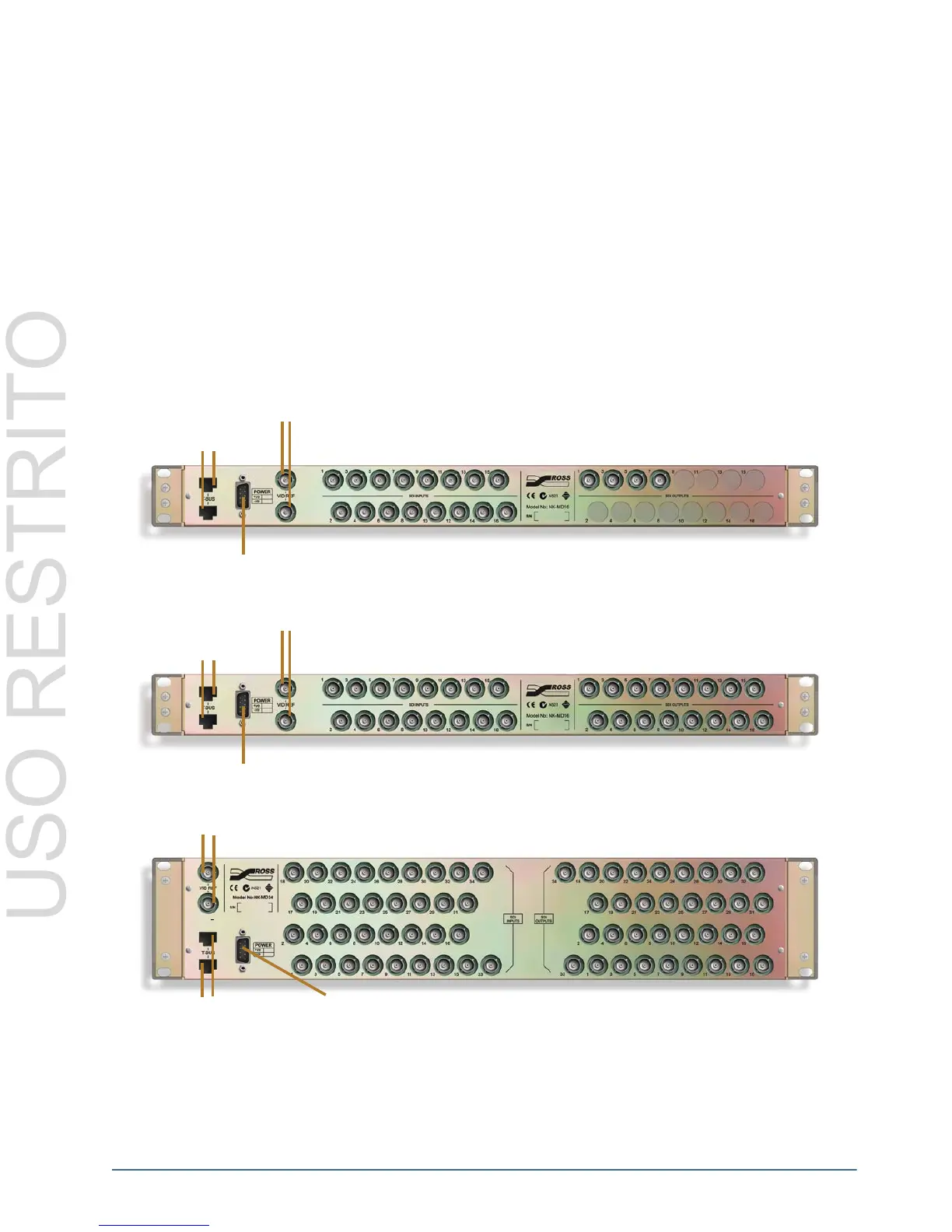

Figure 3.1 NK-S164 & NK-MD164 – 16x4 Rear IO
Figure 3.2 NK-S16 & NK-MD16 – 16x16 Rear IO
Figure 3.3 NK-S34 & NK-MD34 – 34x34 Rear IO
Video Reference Loop
T-Bus Connections
Inputs
Outputs
Power
Video Reference Loop
T-Bus Connections
Inputs
Outputs
Power
Video Reference Loop
T-Bus Connections
Inputs
Outputs
Power
