RCP-NKM
The RCP-NKM 40 button panel controls NK Series Routers, has a variety of assignable functions, and it can also be
used for virtual routing. It has 40 programmable backlit keys, a 16 character by 2 line backlit LCD screen, and can
control up to 32 router levels.

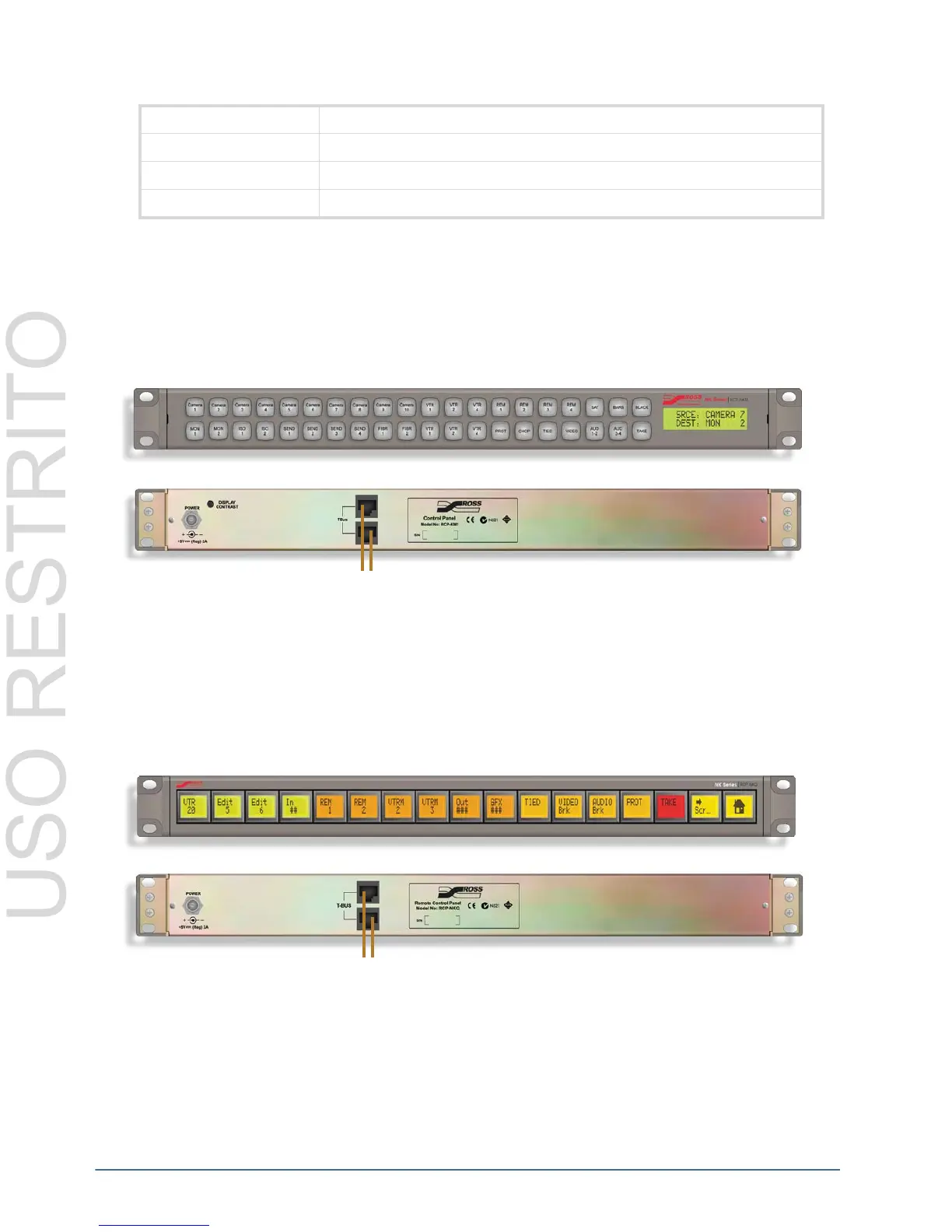

Figure 3.23 Front and Rear of RCP-NKM
See the RCP-NKM Remote Control Panel User Guide for more information.
RCP-NKQ
The RCP-NKQ control panel has a variety of assignable functions and it can also be used for virtual routing. It has
17 programmable backlit keys, panel linking with other remote control panels, and can control up to 32 router
levels.
Figure 3.24 Front and Rear of RCP-NKQ
See the RCP-NKQ Remote Control Panel User Guide for more information.
Table 3.33 General
Configuration Phoenix or web browser via NK-IPS
Dimensions 1 RU x 25 mm deep
Power Consumption 1.5 watts
Power Supply +15 V DC phantom power
T-Bus Connections
T-Bus Connections
To Next Page
