Machine Control / Data Level
The Machine Control level of the NK-16 and NK-32 range is capable of routing RS-422 signals for reciprocal
switches. It is available both 16x16 (NK-M16), and 32x32 (NK-M32) models.

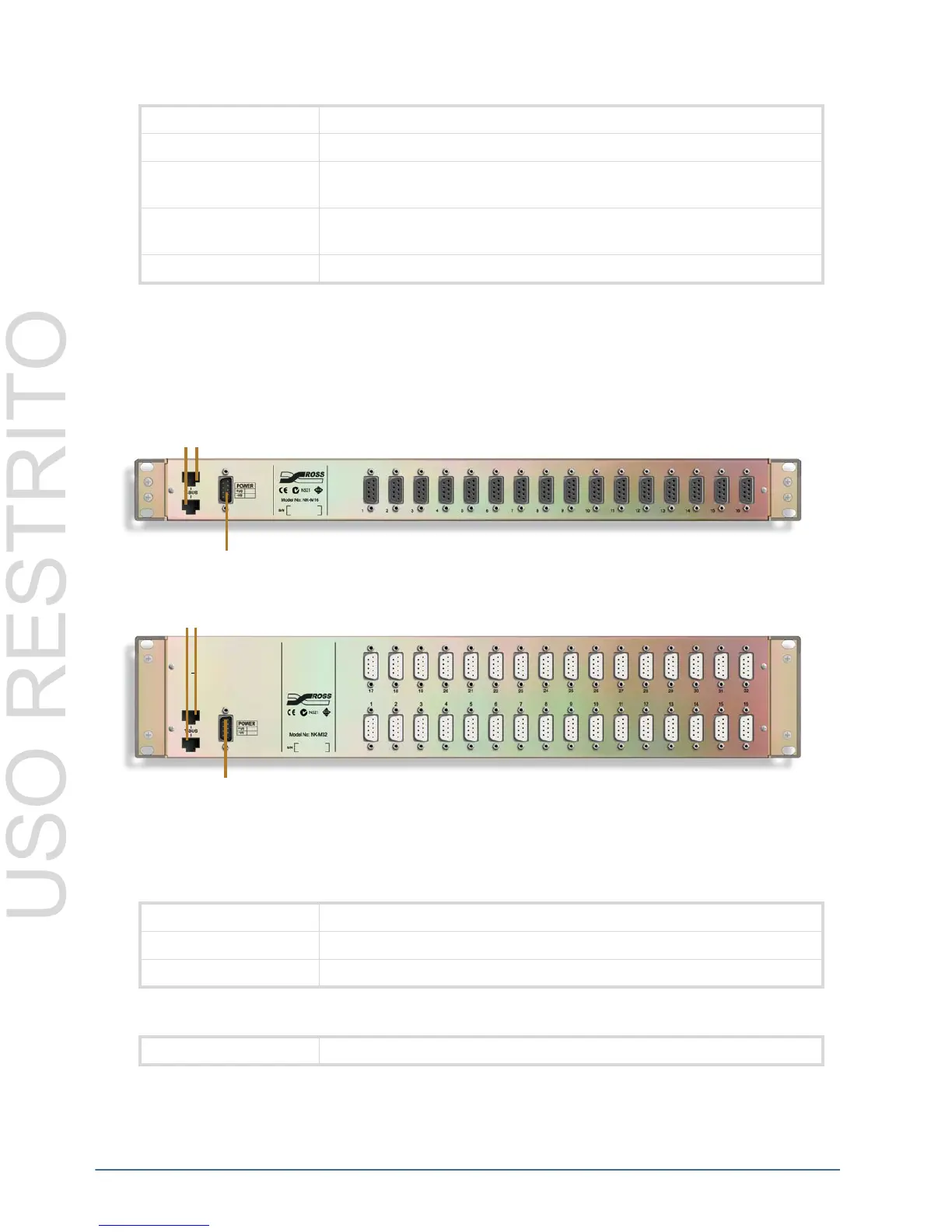

Figure 3.16 NK-M16 – 16x16 Rear IO
Figure 3.17 NK-M32 – 32x32 Rear IO
Specifications
Table 3.16 General
Partitioning Up to 8 partitions with independent level assignment
Configuration Phoenix or web browser via NK-IPS
Dimensions 1 RU x 64 mm deep (NK-A16-HQ and NK-A164-HQ)
2 RU x 64 mm deep (NK-A32-HQ)
Power Consumption 13.5 W (NK-A16-HQ and NK-A164-HQ)
33 W (NK-A32-HQ)
Power Supply ±15 V DC
Table 3.17 Inputs
Connection DB-9 Female on chassis
Electrical Standard RS-422
Direction Auto port direction switching
Table 3.18 Performance
Data Rates Up to 115.2 kBd
T-Bus Connections
Power
Bi-directional RS-422 Ports
T-Bus Connections
Power
Bi-directional RS-422 Ports
