NK Series User Guide (1.0) Installation • 3–11

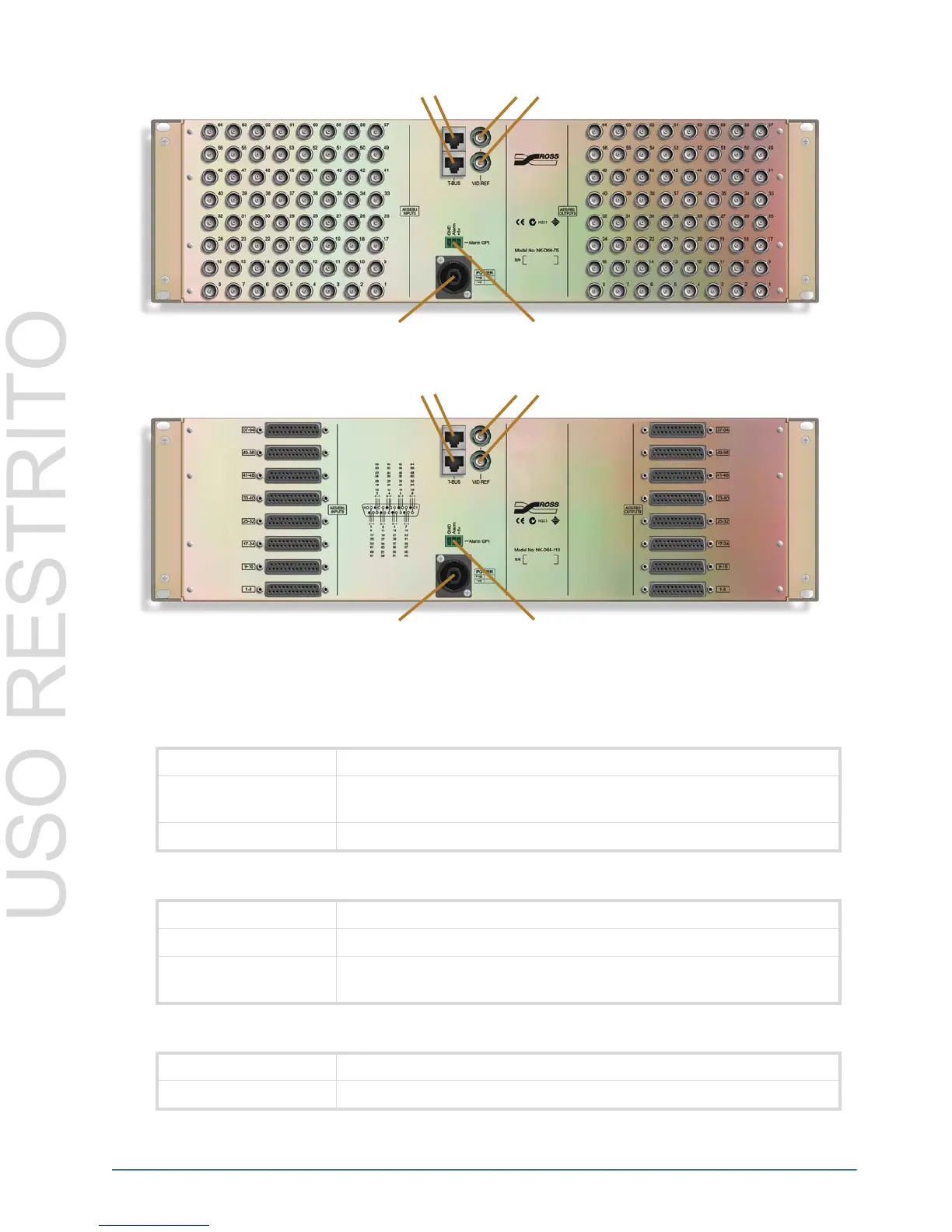

Figure 3.19 NK-D64/75 – 75 Ω, 64x64 Rear IO
Figure 3.20 NK-D64/110 – 110 Ω, 64x64 Rear IO
Specifications
Table 3.24 Inputs
Connection 75 Ω BNC (D64/75) 110 Ω DB-25 connectors (D64/110)
Level 1 V p-p (75 Ω)
2-7 V p-p (110 Ω)
Cable EQ Up to 300 m RG59/U
Table 3.25 Outputs
Connection 75 Ω BNC (D64/75) 110 Ω DB-25 connectors (D64/110)
Clocking Non-reclocking
Level 1 V p-p (75 Ω)
3-4 V p-p (110 Ω)
Table 3.26 Performance
Jitter < 2 ns (0.13 UI)
Data Rates 32 kHz to 192 kHz
Inputs Outputs
T-Bus Connections Video Reference Loop
Inputs Outputs
GPI AlarmsPower
Inputs Outputs
T-Bus Connections Video Reference Loop
Inputs Outputs
GPI AlarmsPower
