AC-825IP Panel Setup
14 AC-825IP Hardware Installation and User Guide
The highlited area indicates the use of OSDP readers and their I/O connectivity.
Bushings are needed for any conductors leaving the enclosure through the
provided openings.
3.1 Mounting
The AC-825IP control panel either comes pre-mounted within the ME-1515
enclosure, which then needs to be wall mounted, or you can mount the
control panel directly onto a wall using the DIN rail enclosure.
3.1.1 Mounting the ME-1515 Enclosure
When selecting an area for mounting, ensure the location is flat.
1. Using the locations shown in Figure 2, drill holes in the wall.

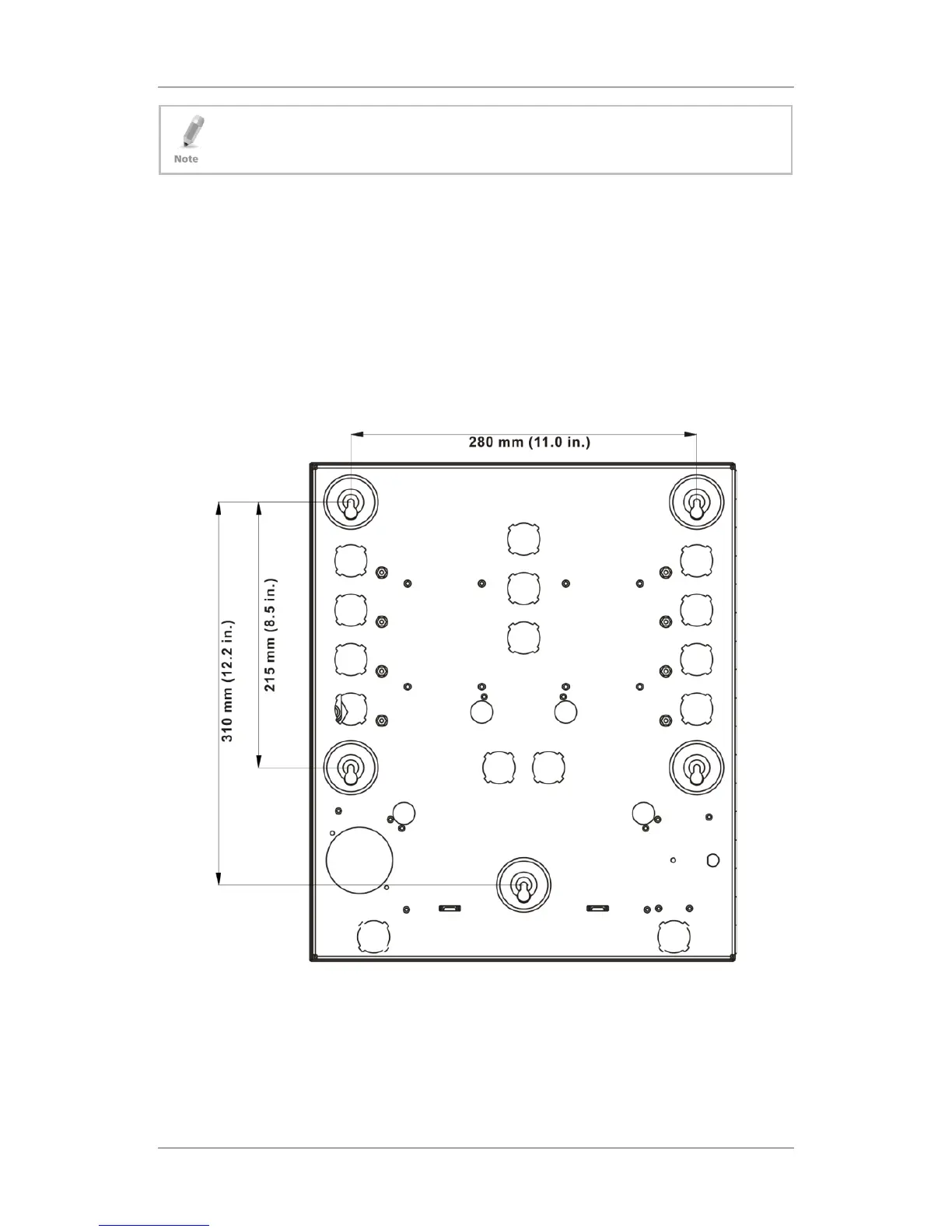

Figure 2: ME-1515 Drill Holes
2. Insert masonry anchors into the drilled holes.
3. Mount the enclosure onto the wall.
