AC-825IP Panel Setup
AC-825IP Hardware Installation and User Guide 23
3.4 Power Management
Figure 14 illustrates the AC-825IP ACU within the ME-1515 enclosure. It is
recommended to add a 12
VDC lead acid backup battery in case the power
management board fails (see Chapter 2). If the main input is 12 VDC, wire it to
the power management board, which has a load rating of up to 4 A for lock
connectivity (for battery installation instructions, please refer to Section 3.1). If
4 A is not sufficient, an external power supply should be added according to
the electrical requirements. For more information, refer to Section
4.3.

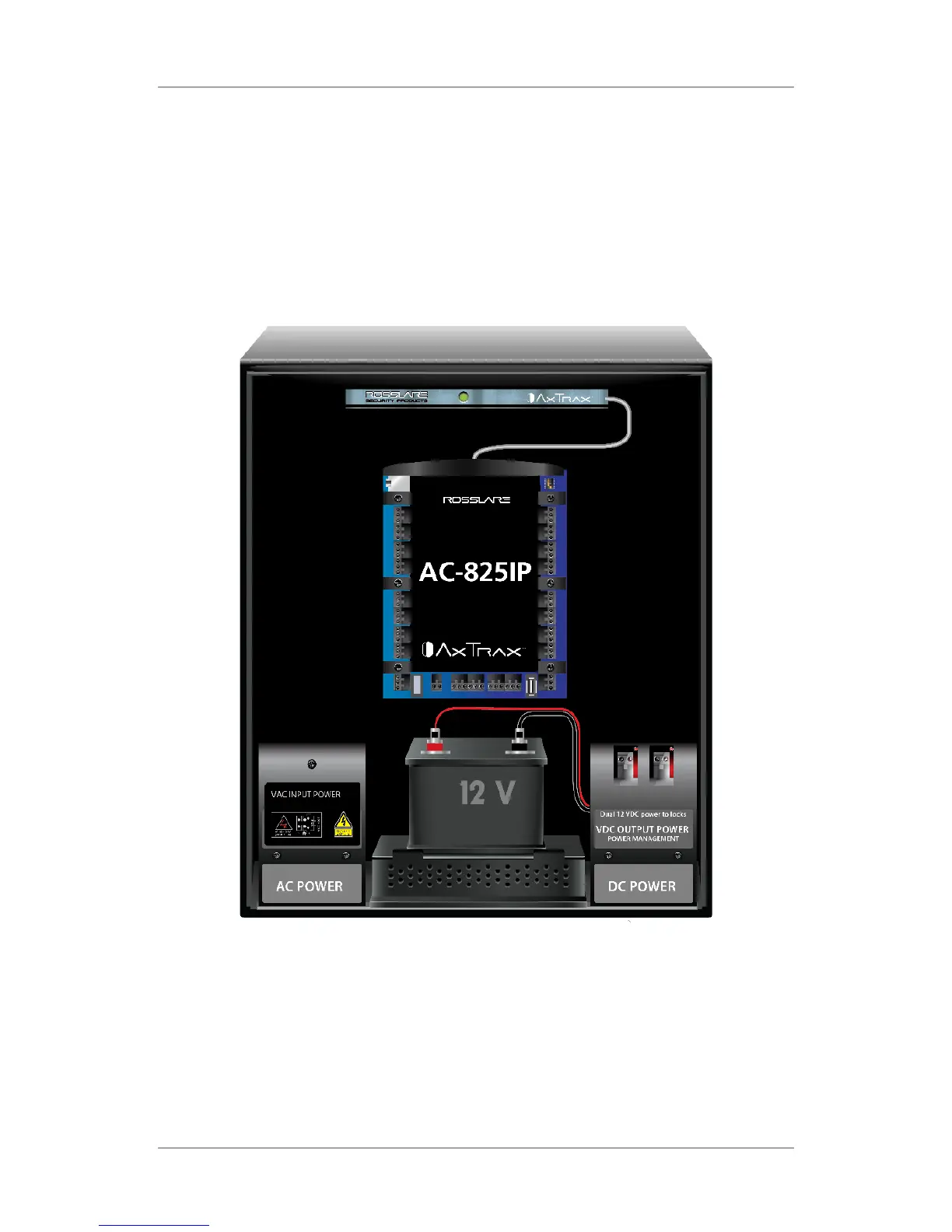

Figure 14: AC-825IP in the ME-1515 Enclosure
