Roth Softline – Controller 8 ch Master - V. ADDITIONAL MODULES MENU; Extension Controller Registration; Extension Controller ON;OFF; Extension Controller Zone Settings

User Manual - 17/32
V. ADDITIONAL MODULES MENU

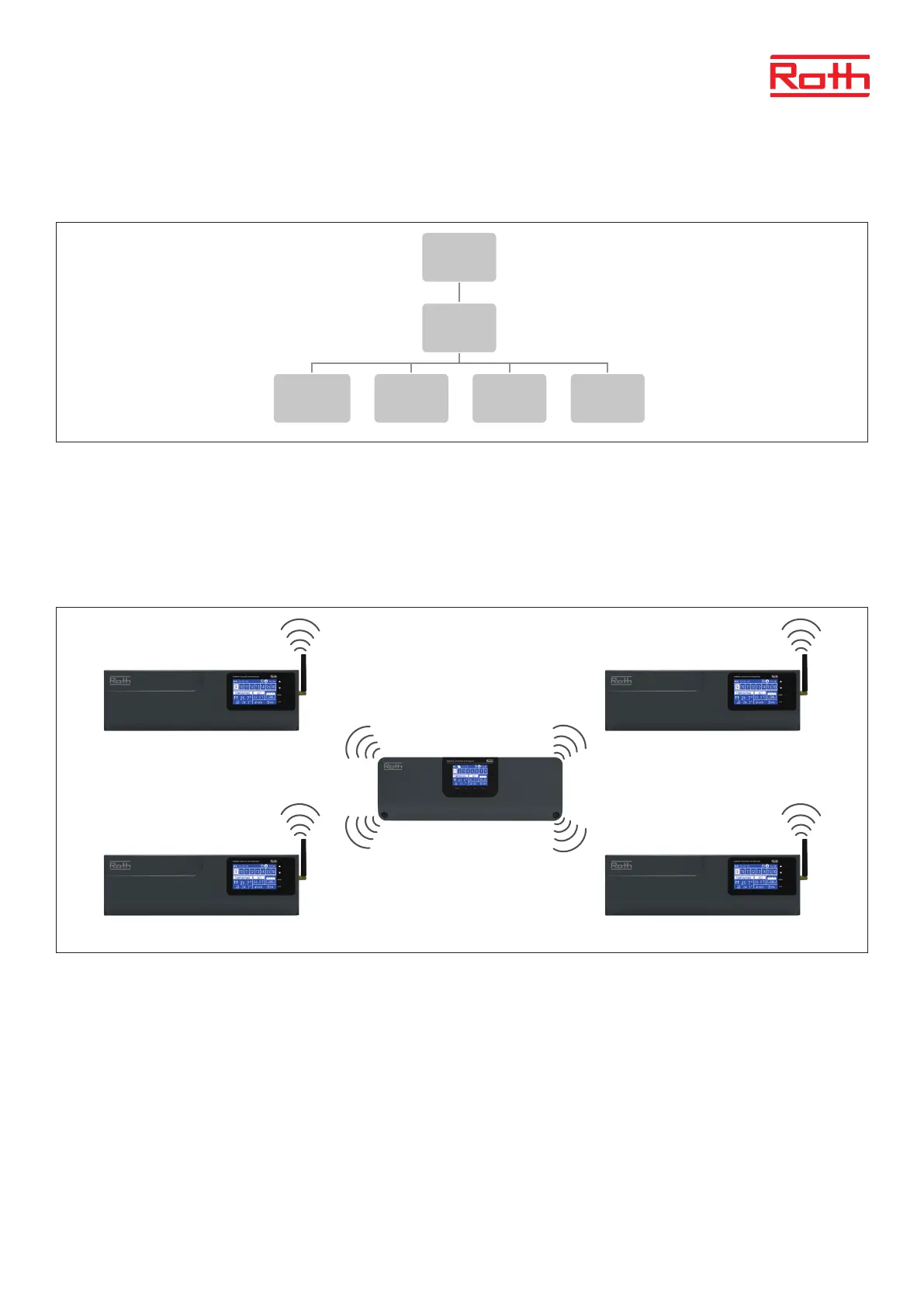

Diagram – Additonal modules menu
If you need to have a larger installation of more than 8 channels, you can add up to 4 extension Controllers in this menu. Please see the manuals
for the master and extention Controllers to se how to add a module.
Registration Here you register the connection between master and extension Controller
On Default is on, but you turn of the connection to the specic extension Controller
Zones Here you can see and change settings for the zones on the specic extension Controller
Signal Here you can see the signal strength between the master and the extension Controller
4
Diagram – meny för ytterligare moduler
Diagram – meny för externa sensorer
Diagram – meny för manuellt läge
Menu
Additonal
modules
1 - 4
Registration ON Zones Signal
Menu
External
sensor
Registration
Sensor
type
Wired
NTC
Wireless
Signal
strenght
Battery
level
Temperature
outside
Weathercontrol
ON
Calibration
Menu
Manual
mode
Valves 1 -8
Potential-
free contact
Pump
