7.0 Basic Setup
7.4 Select Local Operation
The LOCAL/STOP/REMOTE selector determines the actuator
operating mode at all times. LOCAL mode must be active in
order to edit and save configuration parameters.
STEP 1
SELECT LOCAL
OPERATION
STEP 2
SET OUTPUT
THRUST
STEP 4
SET CLOSE LIMIT
OF TRAVEL
STEP 5
SET OPEN LIMIT
OF TRAVEL
STEP 6
CALIBRATE COMMAND
SIGNAL ZERO SETPOINT
STEP 7
CALIBRATE COMMAND
SIGNAL SPAN SETPOINT
STEP 3
SELECT ACTION AT END
OF TRAVEL (LIMIT OR FORCE)
STEP 8
DEADBAND
POS I T
REMOTE
POS I T
LOCAL

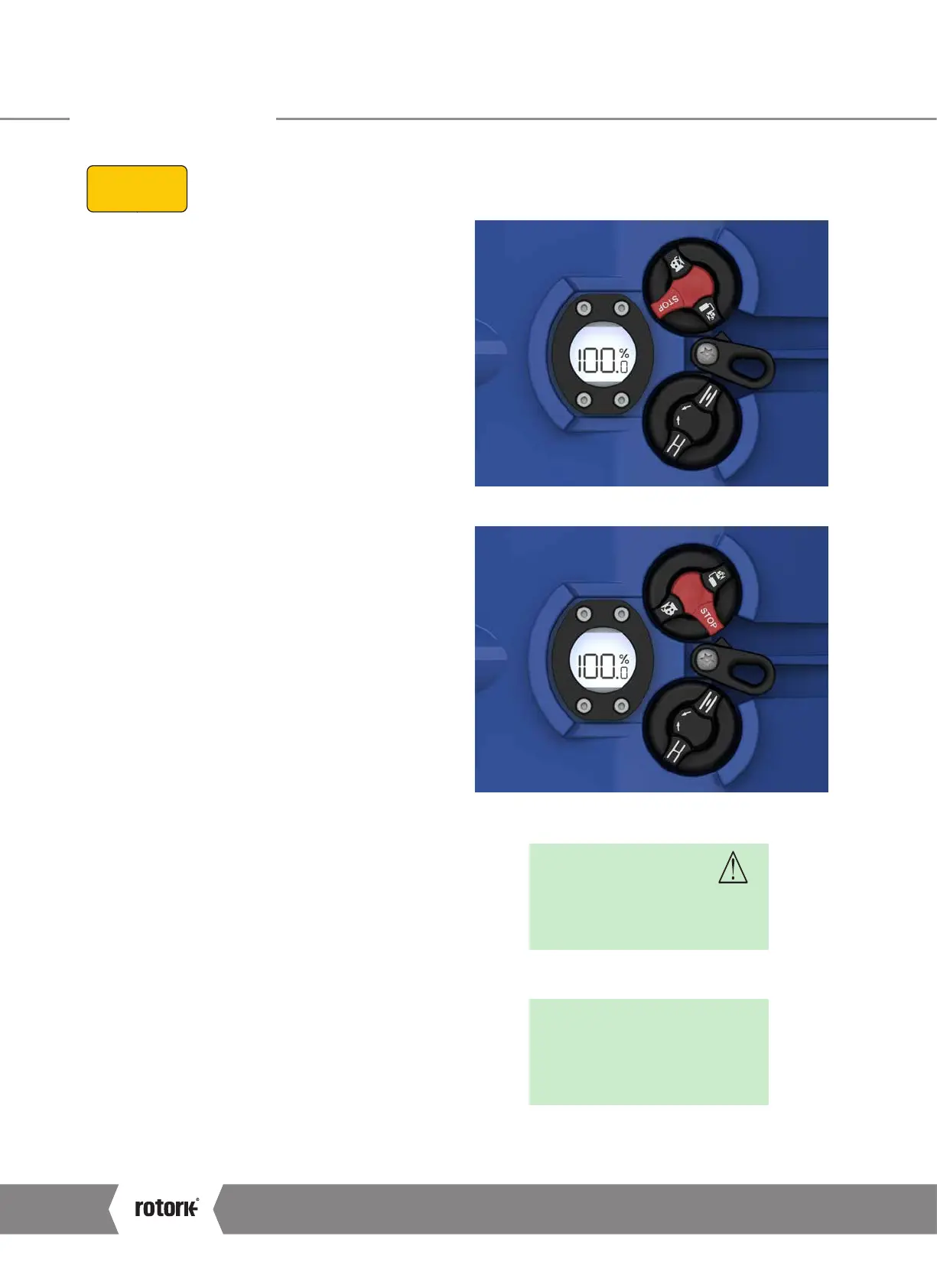

Fig 7.2 Actuator in STOP
Fig 7.3 Actuator in LOCAL
Fig 7.4 REMOTE mode indication
Fig 7.5 LOCAL mode indication
Rotate the LOCAL/STOP/REMOTE selector anti-clockwise
until the LOCAL symbol is directed towards the LCD
positiondisplay.
The user interface LCD display will show the current
activemode.
A4US
US
A4
US A4
US
A4
