7.0 Basic Setup
7.11 Completing Basic Setup
Ensure that the spigot face is clean and greased with the
o-ring seal fitted and in good condition.
Carefully align the top cover.
Ensure that all wiring is fitted correctly and will not foul the
top cover once fitted.
Lower the top cover in to place. Check that no cables
aretrapped.
Tighten the eight cap head screws.

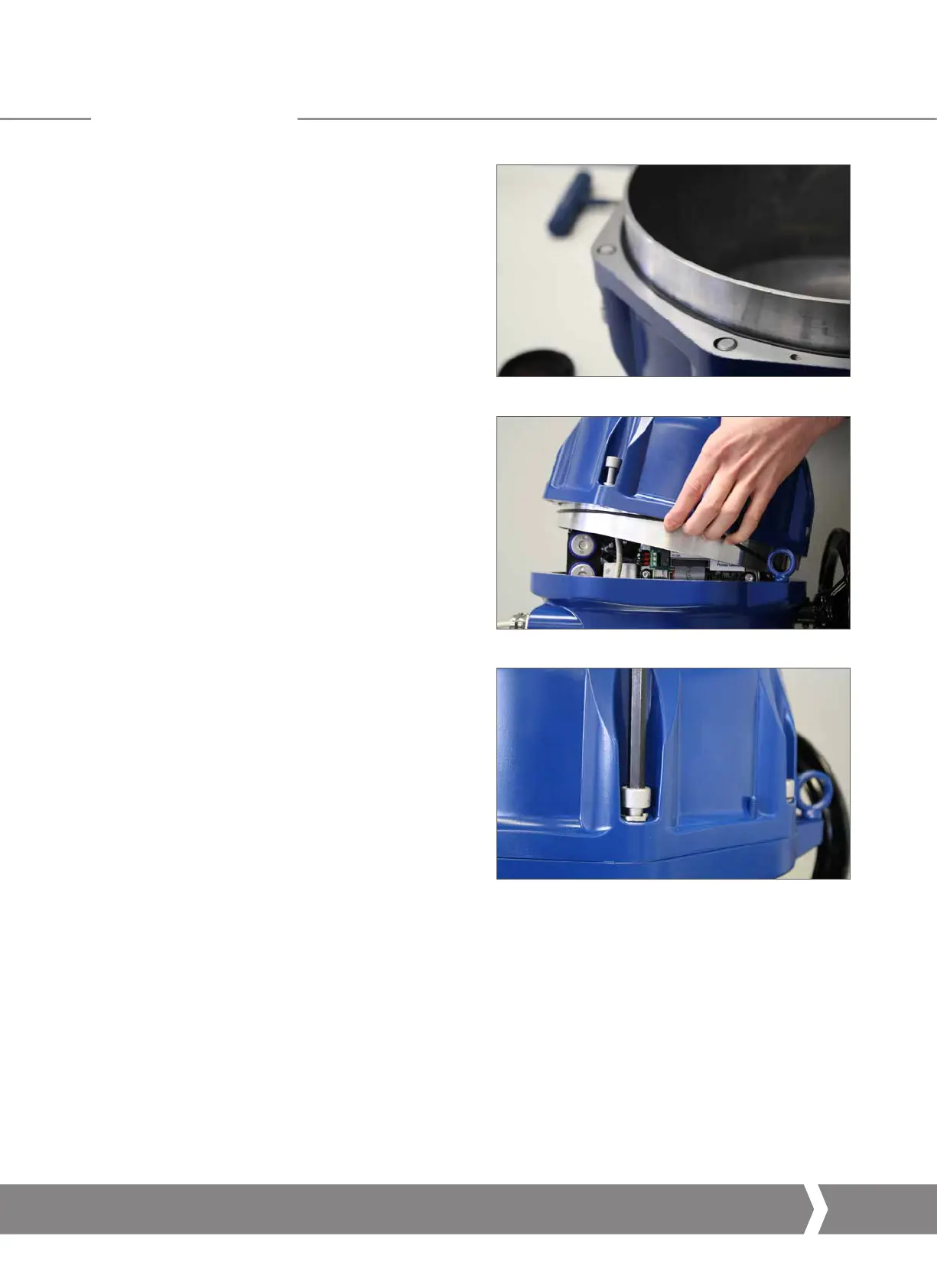

Fig 7.48 Cover spigot face
Fig 7.49 Cover alignment
Fig 7.50 Cover screw location
