rotork gp series User Manual

Installation, Commissioning and Maintenance Manual
26

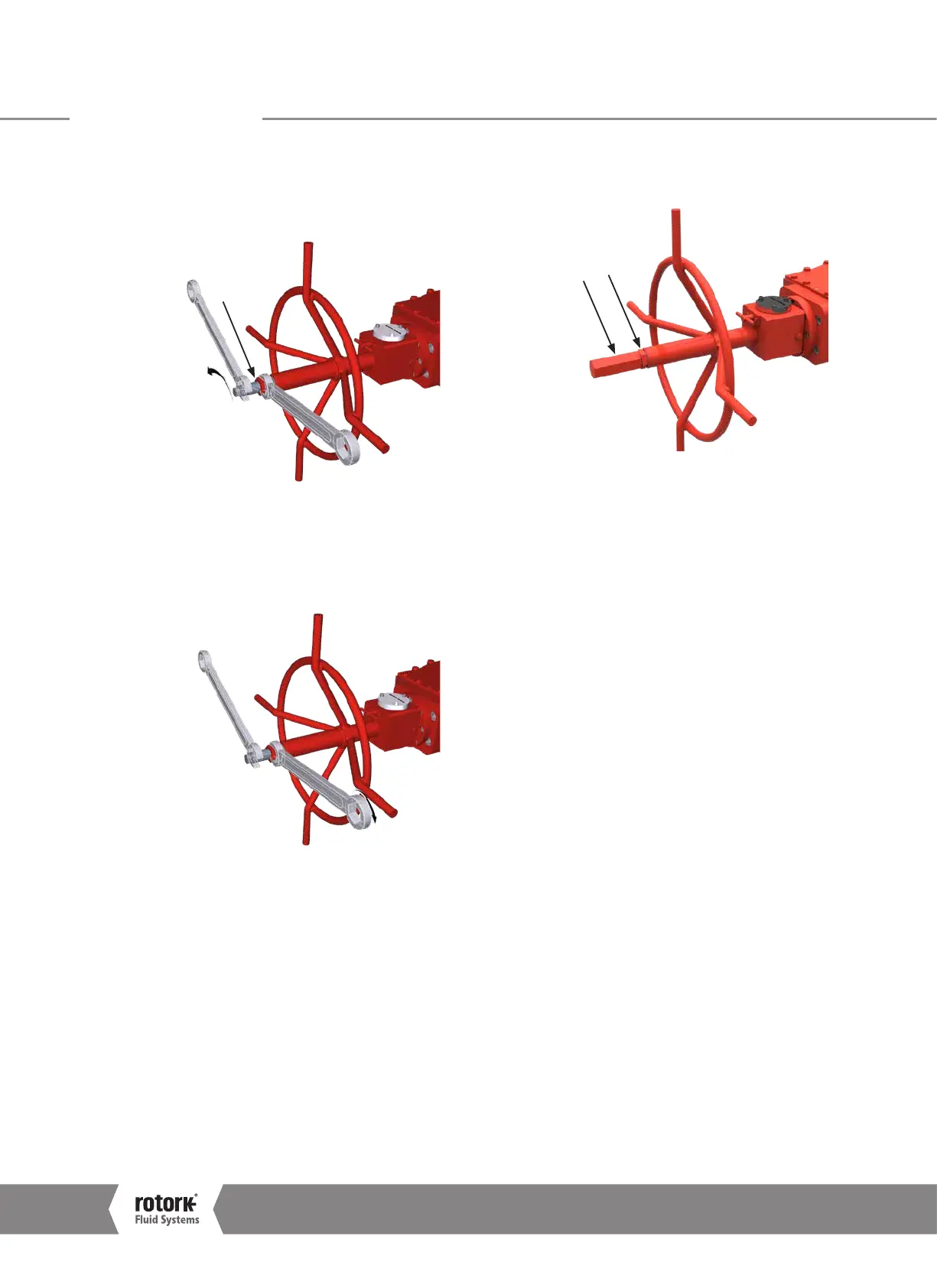

D. Verify the newly obtained angular position with one stroke
E. Repeat operations A to E, until the desired angle is obtained
F. To decrease angular stroke, rotate stop bolt (5) clockwise
5
G. Verify the newly obtained angular position with one stroke
H. Repeat operations A to B and F to H, until the desired
angle is obtained
I. Hold stop bolt (5) with a wrench and tighten stop nut (3).
Ensure seal washer (2) is properly placed
J. Re-position seal washer (2) and verify it is correctly
positioned. Tighten cap nut (1)
2
1
12.0 Operation
A4US
US
A4
US A4
US
A4

rotork gp series Specifications

General

Enclosure	IP66
Communication Protocols	Foundation Fieldbus
Inputs	Digital
Outputs	Digital, Relay
Display	LCD
Protection Rating	IP66
Hazardous Area Certification	ATEX, IECEx
Power Supply	24 VDC, 115 VAC, 230 VAC
