Indicator Rod - Open
EN
English

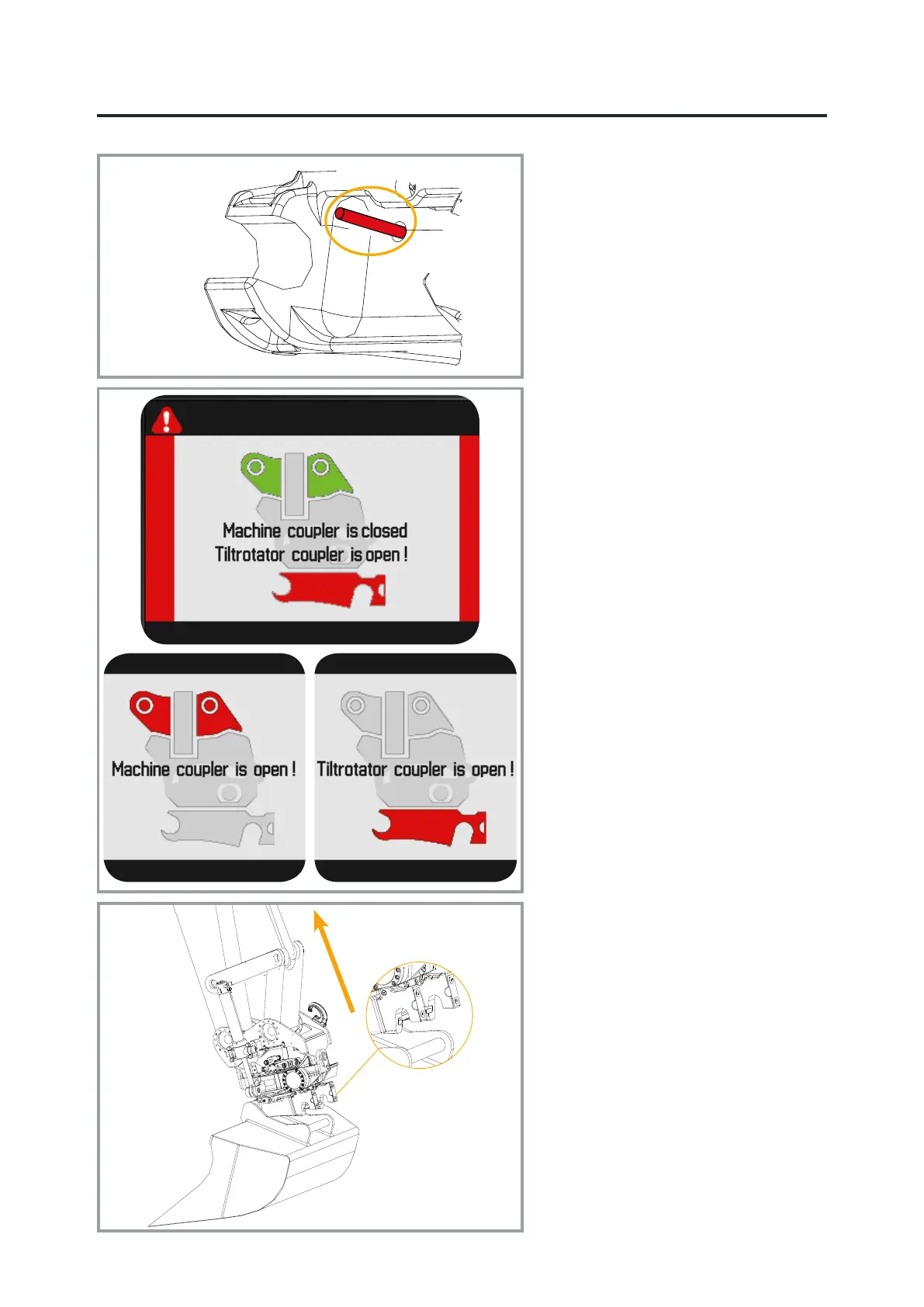

When Rototilt® is pressurised
hydraulically the quick coupler locking
function is opened. The indication on the
quick coupler shows that the lock is open.
When the quick coupler’s locking wedge/
locking pistons are fully open, the tool
can be detached by slowly retracting the
bucket cylinder.
Return the switch to its original position
to close the lock.
Pressurising is for a preset period of
maximum 12 seconds. The default time
can be checked on the display, Menu
Settings.
The switch must be switched on and then
off again to repressurise the hydraulic
cylinder.
A warning is shown on the display if the
quick coupler is in the open position.
The base machine can be equipped with
different combinations of quick coupler
and machine coupler. The gure and
text on the display are dependent on the
combination.
Both the quick coupler and the machine
coupler are available with and without
electronic monitoring (SecureLock).
