ROTOTILT ICS - Rototilt Detachment and Extra Hydraulics; Detach Rototilt; Safety plug; Operating extra hydraulics

© Rototilt Group AB 2018-04-05
1. Remove Rototilt® from
Boom Harness
2. Demount Safety Plug
3. Connect Safety Plug to
Boom Harness
4. Protect empty connector.
1
2
3
4
EN
English
Detach Rototilt®
Always park the tiltrotator on a stable and
at surface, without tools. Make sure that
Rototilt® cannot tip over.
Disconnect the hydraulic hoses and
harness between the Rototilt® and the
base machine. The tiltrotator is now
detached from the base machine.

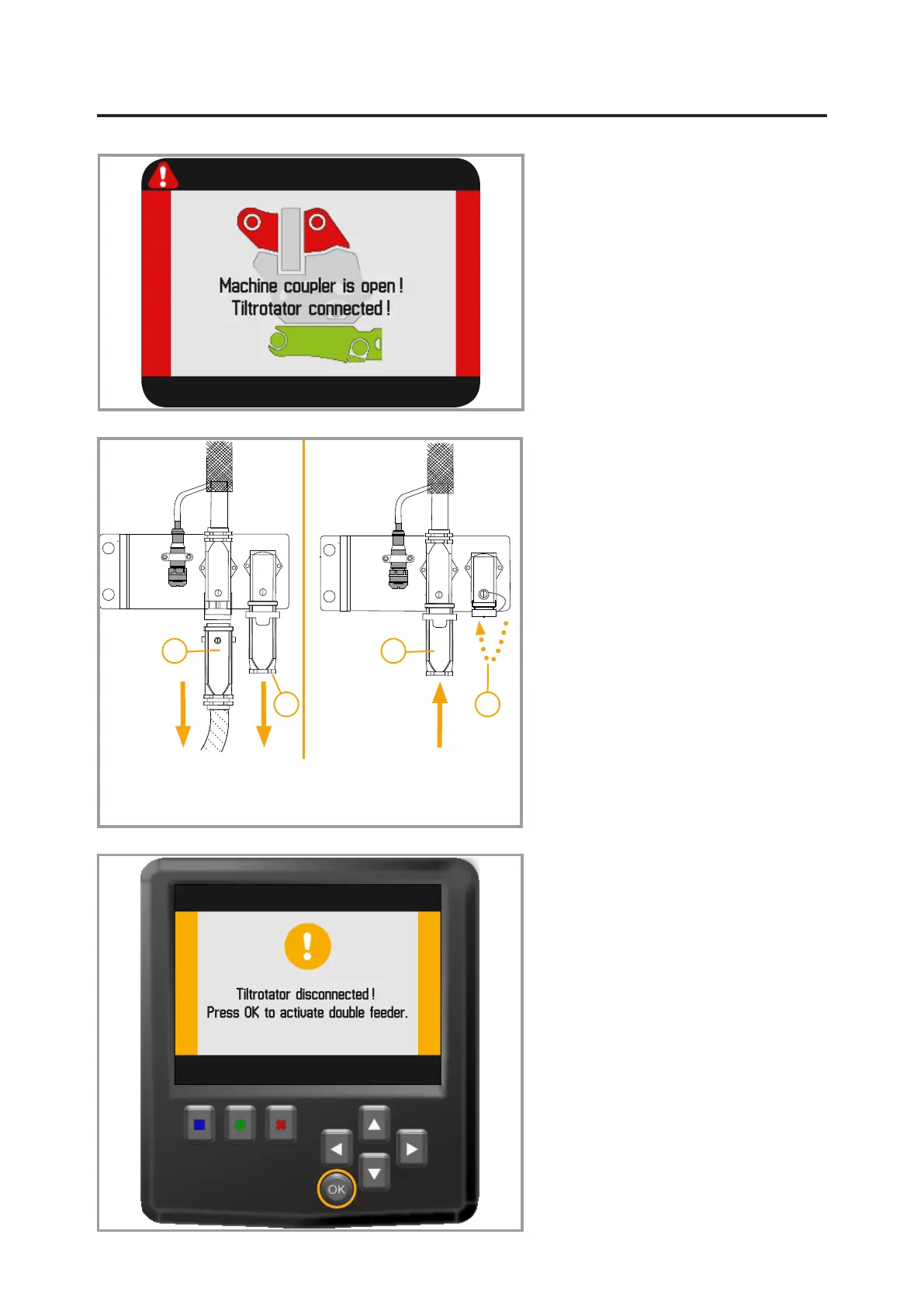

If the machine coupler is open while the
harness to the tiltrotator is still connected,
a warning is shown on the display.
Safety plug
The function is used to lock the machine
coupler while the tiltrotator is mounted.
The lock prevents accidental opening of
the machine coupler.
Disconnect the Rototilt® contact.
Remove the safety plug and connect it to
the boom harness contact.
Control of the machine coupler works
normally again.
Operating extra hydraulics
Detach Rototilt®.
Now select regulation of extra hydraulics
on the display by activating double valve
block shunt.
Conrm with the OK function key.
For return to Rototilt ® control: First
connect the tiltrotator and then connect it
to the base machine.
Now select Rototilt® operation on the
display and conrm the selection with
the green function key and then the OK
function key.
Control of the oil ow in the base
machine’s extra hydraulics circuit can be
performed using a roller or switch. Both
alternatives work in parallel with any
pedals on the base machine.
Roller for the tilt function B regulates the
ow in both directions.
2200230_ _7225
