ROTOTILT ICS - Additional Operational Modes; Non-variable hydraulic flow; On;Off control; Operating CGC

© Rototilt Group AB 2018-04-05
Right
2B
Left Right
2B1
Left Right
21
EN
English
!
IMPORTANT - The base machine’s factory-installed
handles have been replaced with handles adapted for
ICS. Carefully check the changed functions, for both the
base machine and Rototilt®.

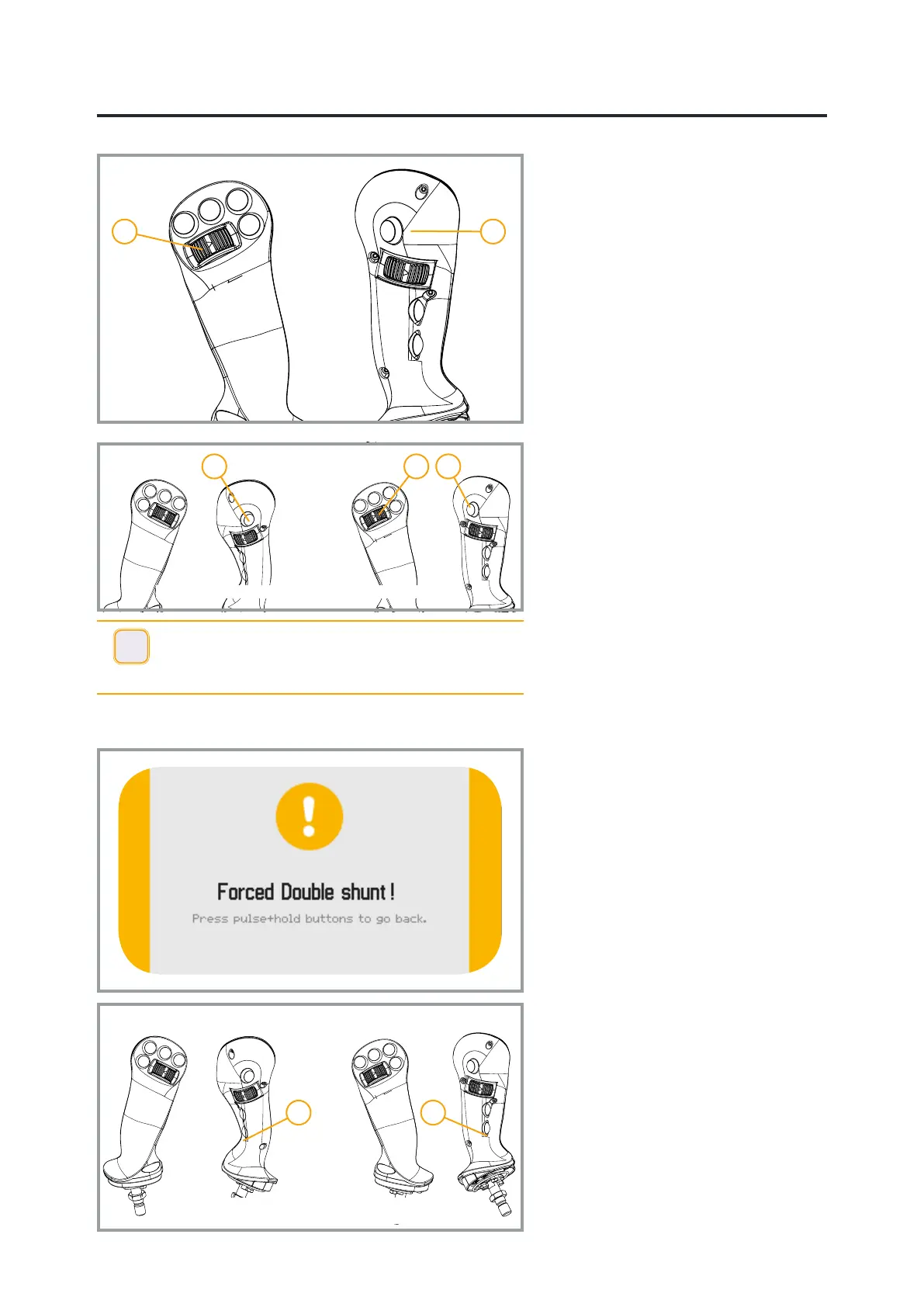

Non-variable hydraulic flow
The ow can be locked using switch 2
when the intended level is reached with
roller B.
Press and hold the switch for 0.5
seconds.
The next time the switch (2) is pressed
the function releases and the ow
ceases.
On/Off control
Left handle, switch 1 starts and closes
full ow in one direction.
Right handle, switch 2 starts and closes
full ow in the other direction.
Operating CGC
Base machine equipped with CGC,
calibrated with tiltrotator coupled.
When calibration necessary, activate
double valve block shunt.
Activate: Simultaneously press and hold
the option 1 and option 2 switches for at
leas 3 seconds
Return to normal Rototilt® operation:
Repeat this procedure.
