ROTOTILT ICS - Hydraulics Schematic ICS Basic Q & X Rototilt R4 - R8

© Rototilt Group AB 2018-04-18
schema:3
Rototilt®
*
Coupler alternative
* Schematic shows connections to function of locking cylinder. For details of actual hydraulics refer to Instructions for Coupler.
Telescope without LH
Telescope with LH
Double Acting without LH

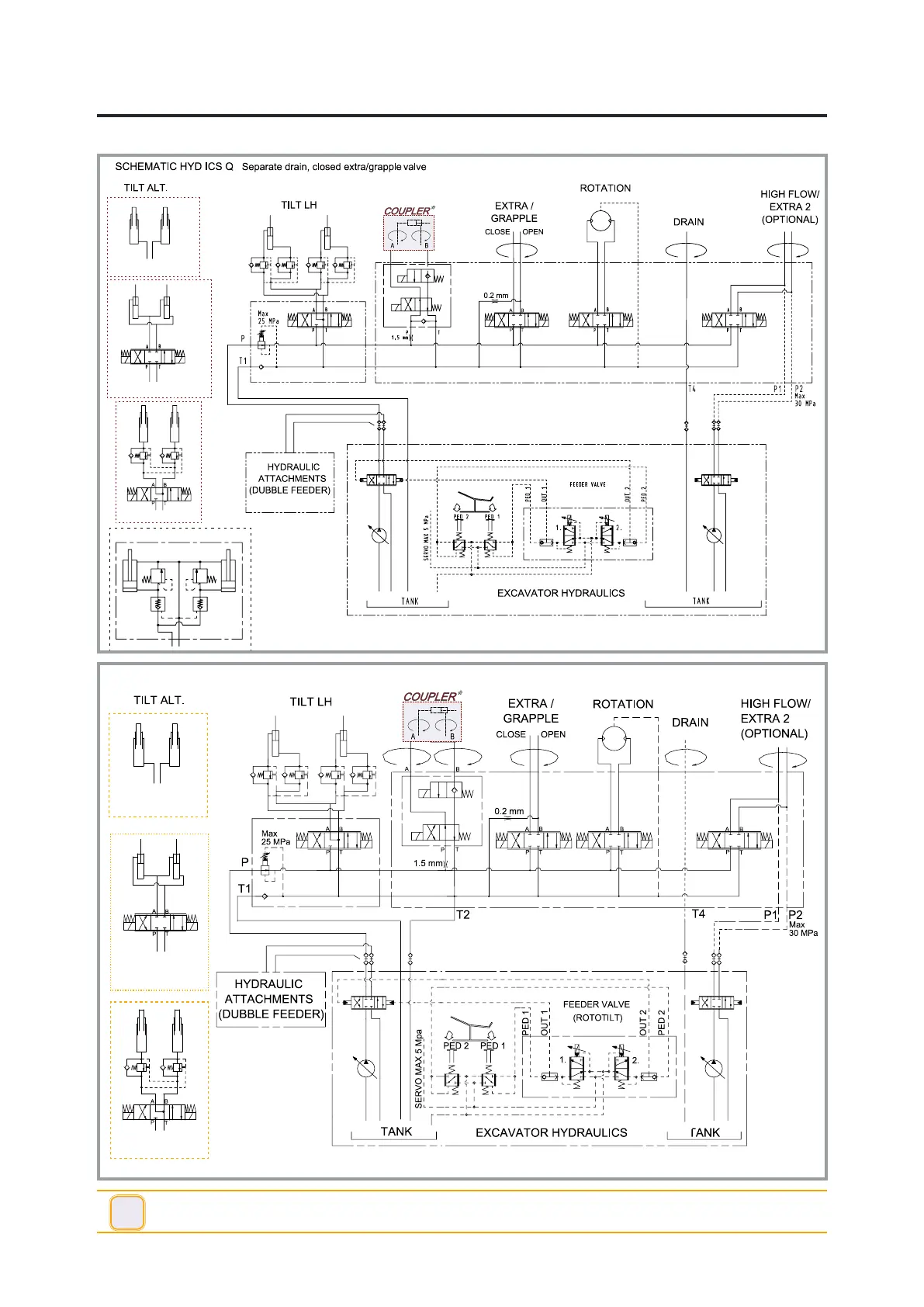

Schematic Hyd ICS Basic X - Separate drain, closed extra/grapple
Telescope
without LH
Double Acting
without LH
Telescope with LH
*
* Schematic shows connections to function
of locking cylinder. For details of actual
hydraulics refer to Instructions for Coupler.
Hydraulics Schematic ICS Basic Q & X Rototilt® R4 - R8
!
IMPORTANT - Connection T2 must be connected to a separate, non-pressurized return line, directly
connected to the tank.
English
EN
EN -
2200230_ _7225
