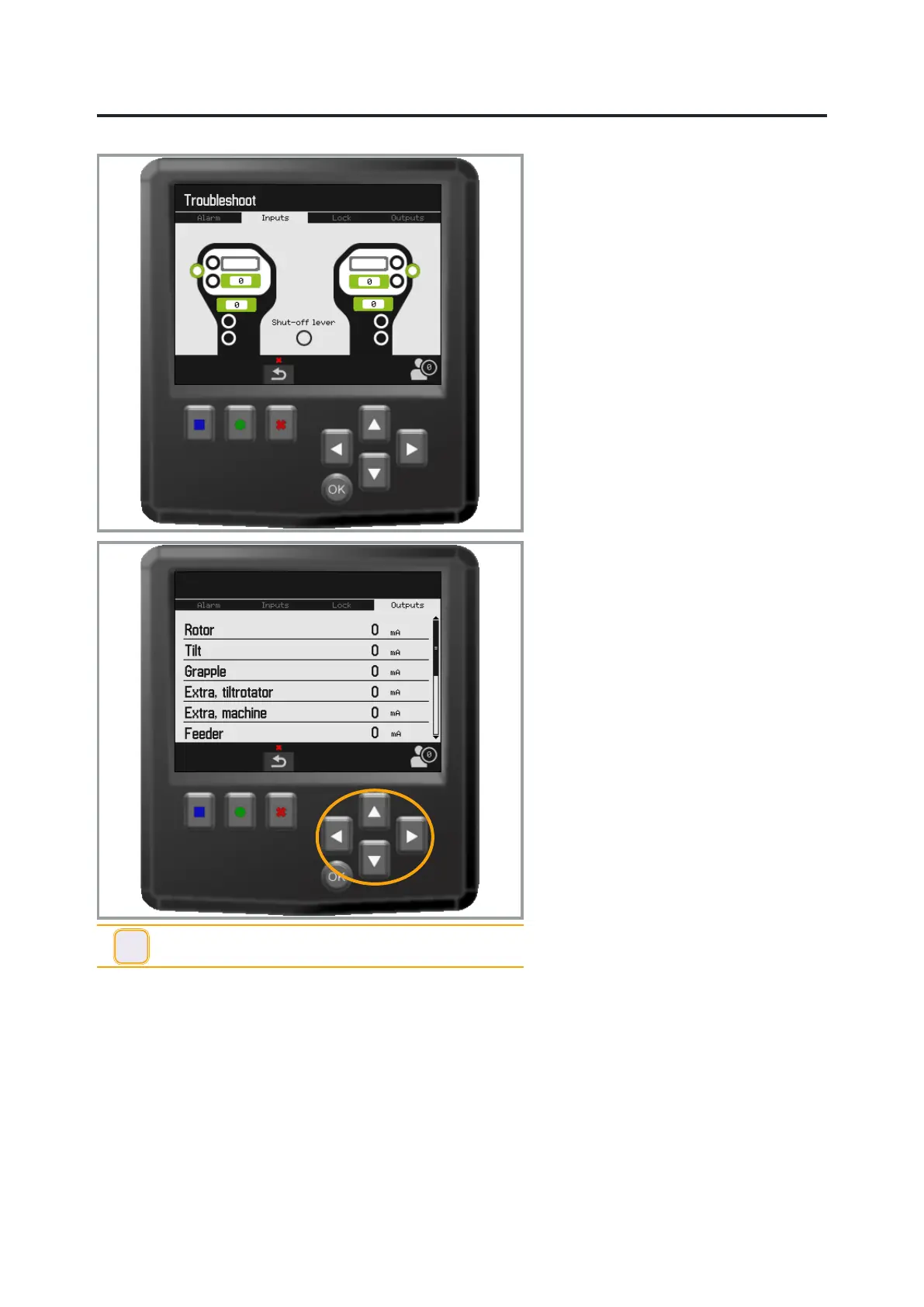

Input signals
The menu shows information about the
input signals to rollers, shut-off levers and
switches.
A non-calibrated roller is red and shows
voltage (V) instead of percent (%).
Output signals
The menu shows the current for each
output signal.
Use the arrow keys to see the full list.
i
INFO - When the shut-off lever is deactivated, no
movement is shown at the outputs.
