For optimum performance and service life, return T1 must be connected to free return.
To enable complete drainage via Drain, a separate return must be connected to
the tank via T4.
Schematics and Overwievs for hydraulic as well as electrical systems, in the following pages are meant to
serve mainly as a guide for Troubleshooting.
!
WARNING!
More extensive adjustments and repairs must be done by
an authorized service workshop.

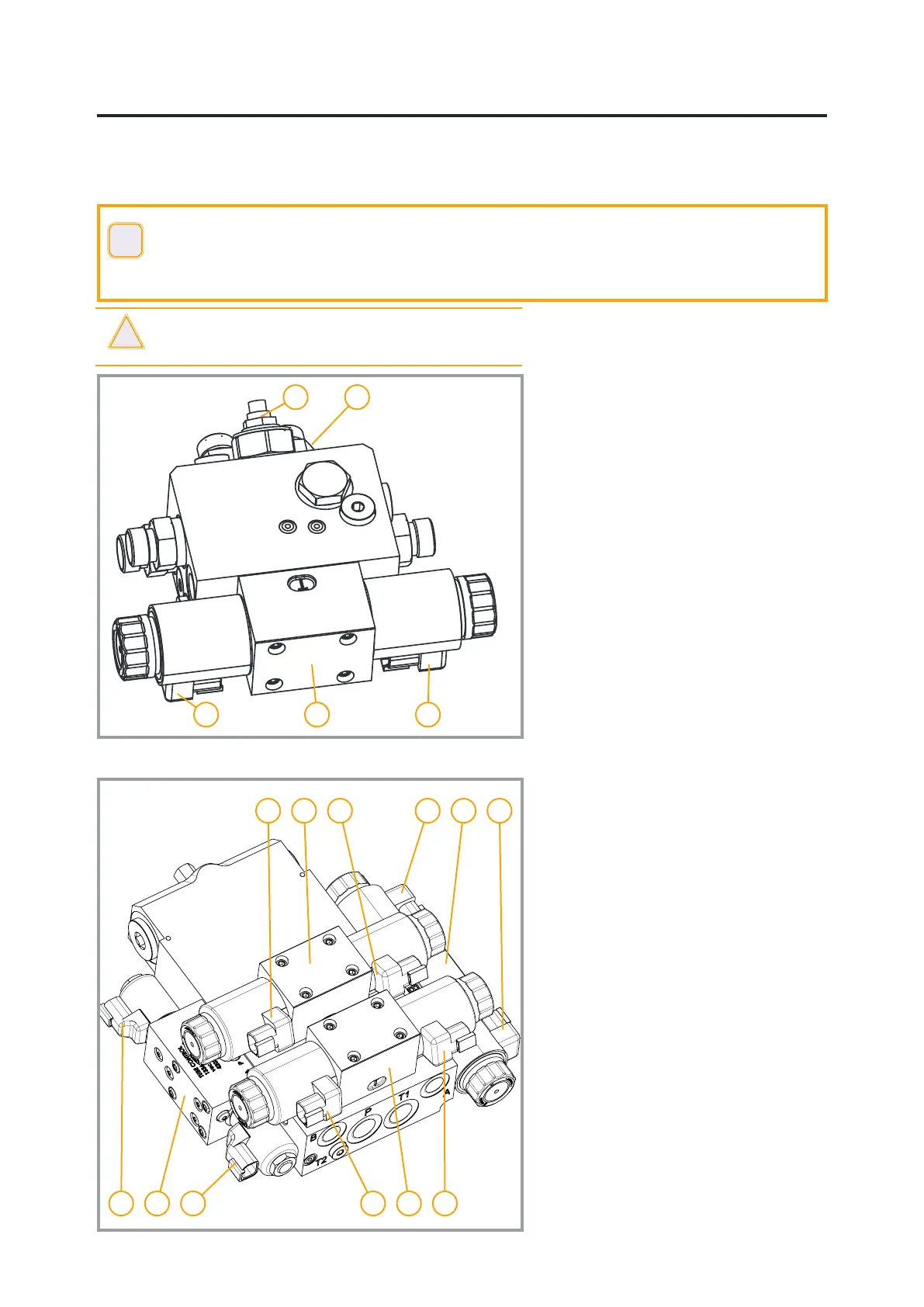

Schematics
Valveblock, Tilt
1. Pressure Reducing Valve
2. Check Valve
3. Tilt Left, connection
4. Tilt Valve
5. Tilt Right, connection
Valveblock, Swivel
1. Extra 2 Left, connection
2. Extra 2 Valve
3. Extra 2 Right, connection
4. Extra / Grapple Valve
5. Extra / Grapple Open, connection
6. Extra / Grapple Close, connection
7. Coupler 2, connection
8. Coupler Valve
9. Coupler 1, connection
10. Rotation Left, connection
11. Rotation Valve
12. Rotation Right, connection
3
2
54
1
1 2 3 4 5 6
7 8 9 10 11 12
