ROTOTILT ICS - Electric Swivel Wiring Details; Electric swivel oilquick RT -unit; Electric swivel M12; Electric swivel

© Rototilt Group AB 2018-04-18
schema:6
3
LED lamp
Locking cylinder sensor
Electric swivel oilquick RT -unit
8 wires
Grey
Grey
Yellow
Green
Yellow
Green
Brown
White
Brown
White
Electric swivel
7 wires
LED lamp
Locking cylinder sensor

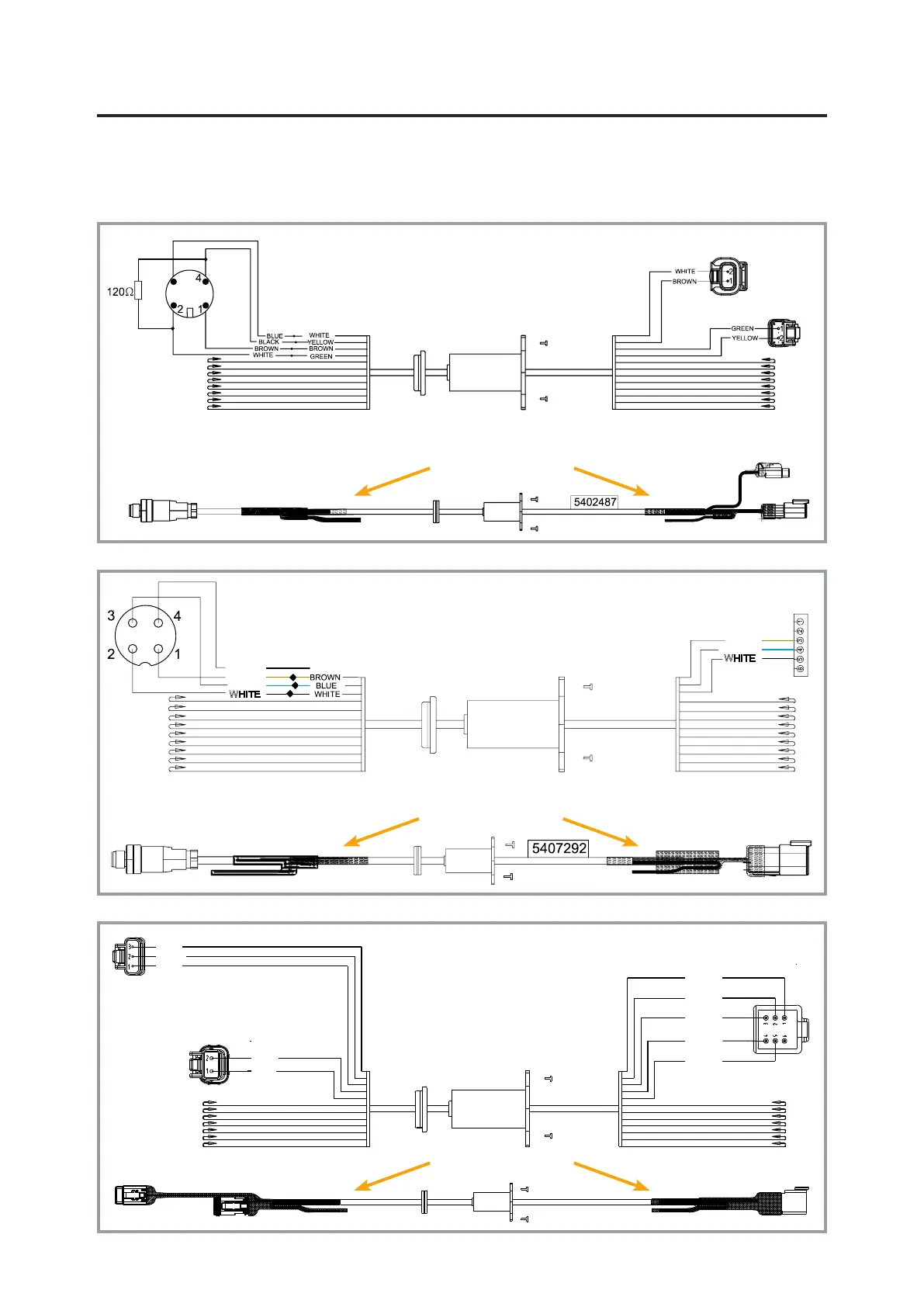

Secure Lock only: Each el.swivel have a number of wires available for optional connection. Cituated inside
heat shrink tubing. Max 2 Amp per wire. See arrows in illustrations below
BLACK
BROWN
BLUE
WHITE
BROWN
BLUE
WHITE
9 wires
Electric swivel M12
English
EN
EN -
2200230_ _7225
