5 RTX745x base station overview
The RTX745x device is an EHS/USB wireless base station which provides USB connectivity to
PC/laptop/desktop phone and DECT connectivity to RTX725x headsets. It is designed as a Plug & Play
solution, meaning that no additional driver installations are needed.
The figure below (Fig.11) illustrates the high-level description of the communication possibilities of the
device. The RTX745x base is connected to a host (PC or desktop phone) with USB interface. It acts as a DECT
base station for the RTX725x headset.

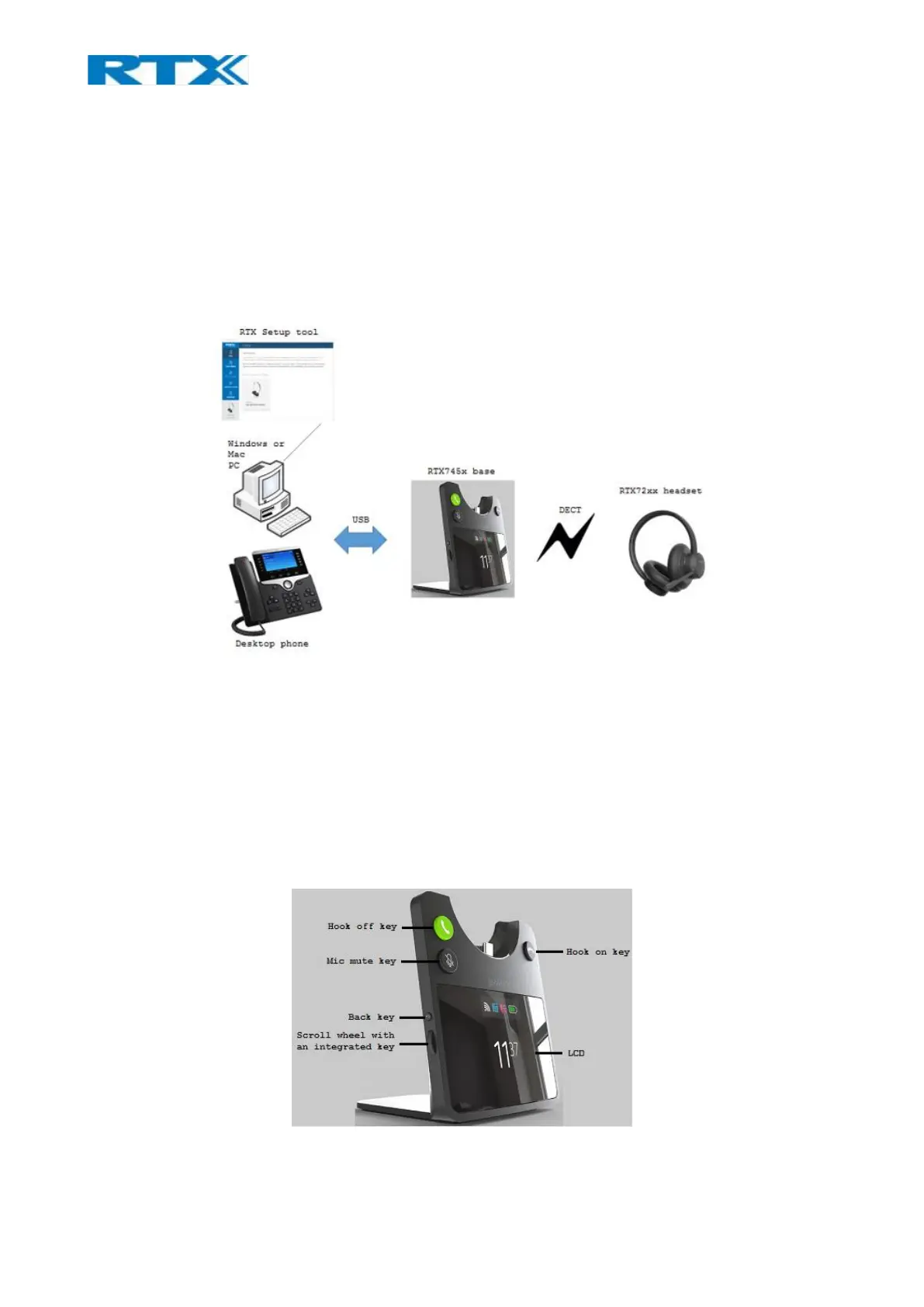

Fig.11 Device connections
The RTX745x serves as a base and charger for the RTX725x series headsets. The primary application is within
call centers and office environments allowing the user to access internet/VoIP calls, music playback via the
PC/mobile phone, and desk phone connectivity.
5.1 Base station overview
The base includes a 2.4-inch 240x320 TFT display for status and configuration. Furthermore, it has 3 keys for
call control handling (hook off, hook on and mute), a clickable scroll-wheel and a key for easy menu navigation
(Fig.12).
Fig.12 RTX745x front view
