20

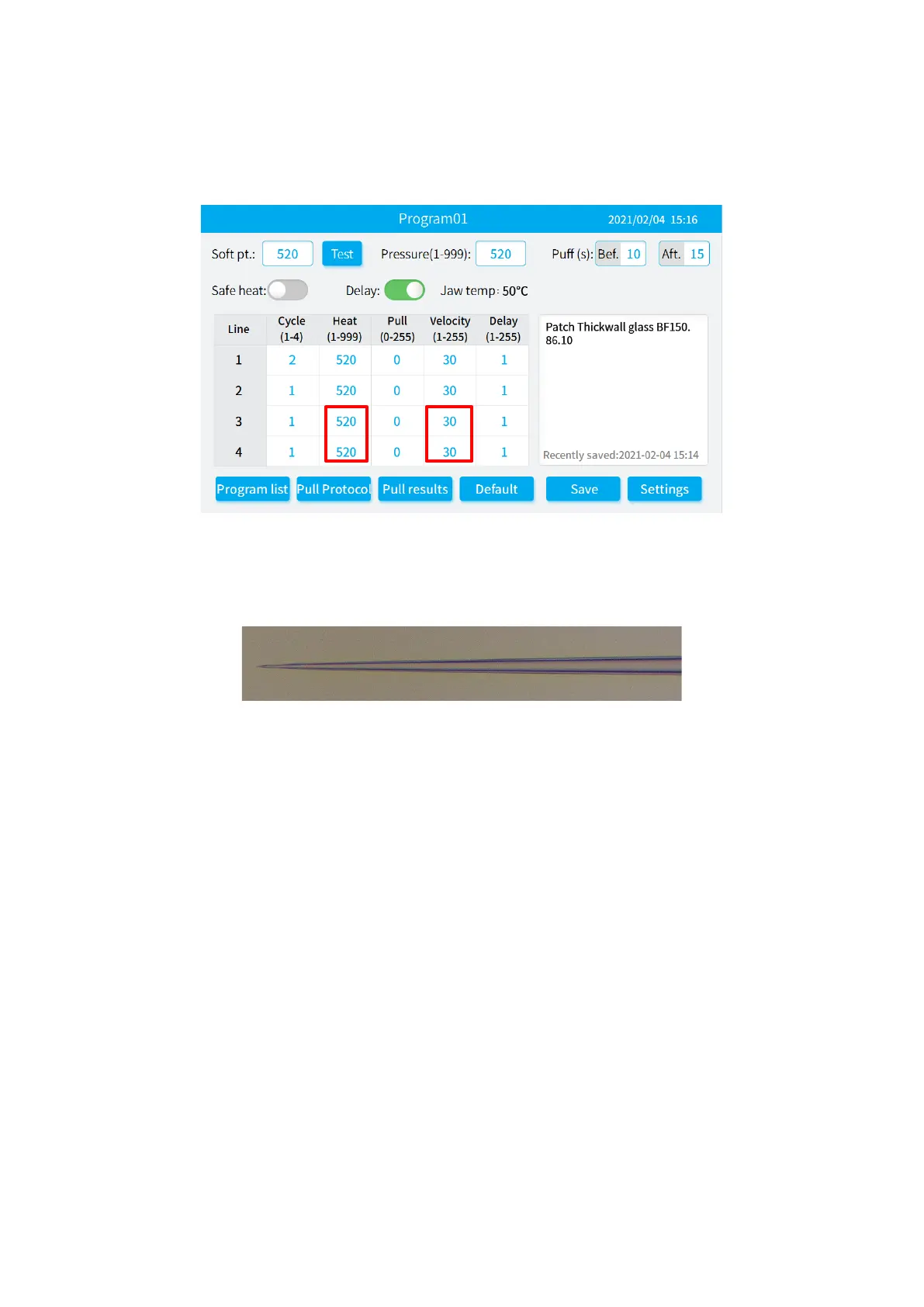

Example: Select the velocity of 30 to cycle for 5 times, divide the setting parameters into 5
lines, and then adjust the heat or velocity of last 1-3 lines to obtain the parameters of the
target microelectrode.
Figure 4-17
Thinwall glass (Model: B-150110-10F, B-12094-10F)
The microelectrode pulled by a thinwall glass is shown in Figure 4-18.
Figure 4-18
Adjust the velocity parameter on the basis of the recommended parameters. The adjustment
rules are shown in following table.
2. Other microelectrodes adjustment
Adjust the pull or velocity parameter based on the recommended parameters, and the velocity
parameter should be adjusted first; if the microelectrode pulled is greatly different from the
target microelectrode, the pull and velocity parameters can be adjusted simultaneously.
To Next Page
