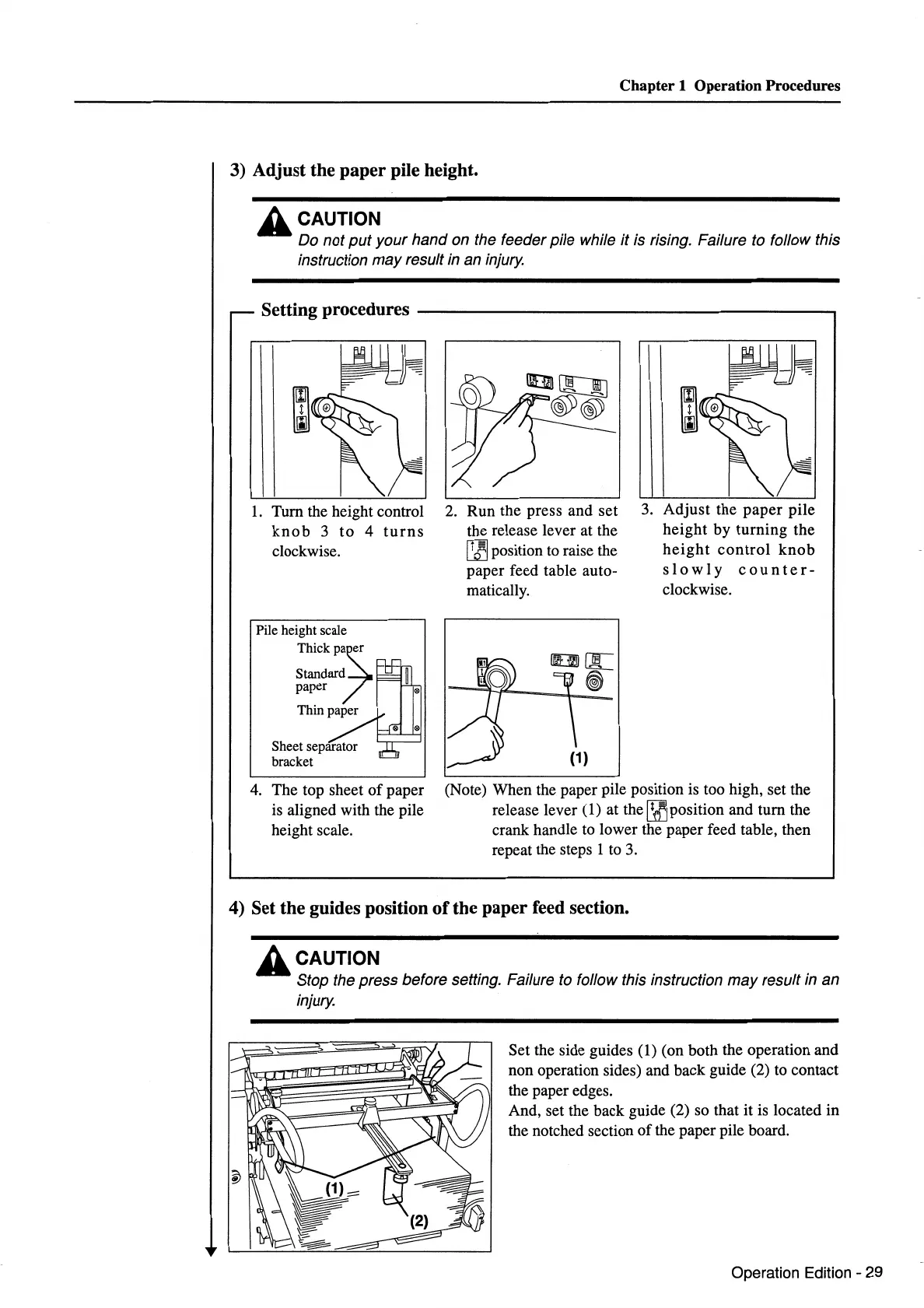

Chapter 1 Operation Procedures
3) Adjust the paper pile height.
A CAUTION
Do not
put
your hand on the feeder pile while it is rising. Failure to follow this
instruction may result in an injury.
Setting procedures
----------------------.
1.
Turn the height control
knob
3
to
4
turns
clockwise.
Pile height scale
Thickp~ar
Standard
paper
Thin paper
4.
The top sheet
of
paper
is aligned with the pile
height scale.
2. Run the press and set
the release lever at the
[1;
position to raise the
paper feed table auto-
matically.
3.
Adjust the
paper
pile
height by turning the
height
control
knob
slowly
counter-
clockwise.
(Note) When the paper pile position is too high, set the
release lever (
1)
at the
~position
and turn the
crank handle to lower the paper feed table, then
repeat the steps 1 to
3.
4) Set the guides position
of
the paper feed section.
A CAUTION
Stop the press before setting. Failure
to
follow this instruction
may
result in an
injury.
Set the side guides (1) (on both the operation and
non operation sides) and back guide (2) to contact
the paper edges.
And, set the back guide (2) so that it is located in
the notched section
of
the paper pile board.
Operation Edition - 29
