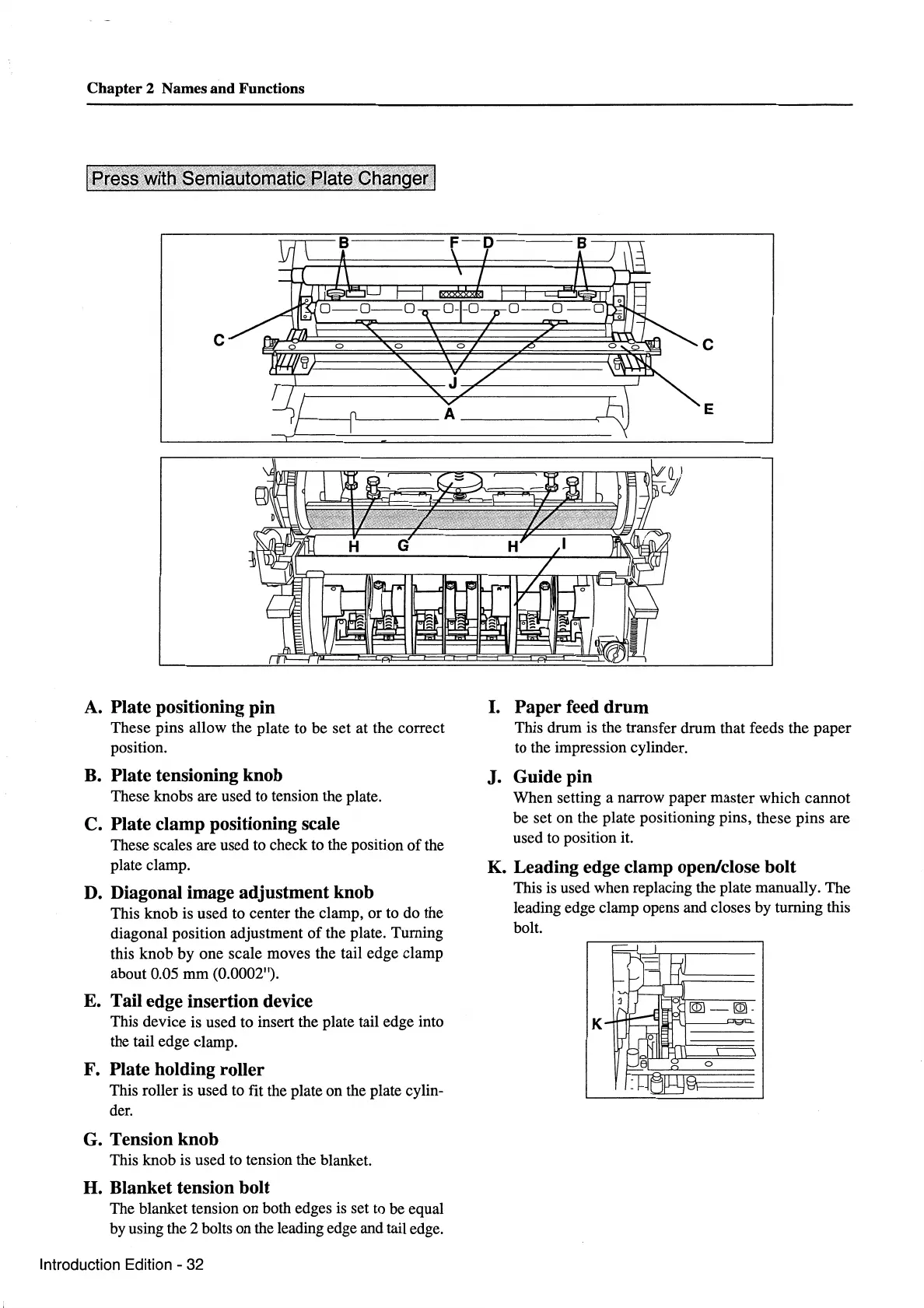

Chapter
2 Names
and
Functions
A.
Plate positioning pin
These pins allow the plate to be set at the correct
position.
B. Plate tensioning knob
These knobs are used to tension the plate.
C. Plate clamp positioning scale
These scales are used to check to the position of the
plate clamp.
D. Diagonal image adjustment knob
This knob is used to center the clamp, or to do the
diagonal position adjustment
of
the plate. Turning
this knob by one scale moves the tail edge clamp
about 0.05 rom (0.0002").
E. Tail edge insertion device
This device is used to insert the plate tail edge into
the tail edge clamp.
F. Plate holding roller
This roller is used to fit the plate on the plate cylin-
der.
G. Tension knob
This knob is used to tension the blanket.
H. Blanket tension bolt
The blanket tension on both edges
is
set to be equal
by
using the 2 bolts on the leading edge and tail edge.
Introduction Edition- 32
I.
Paper
feed
drum
This drum
is
the transfer drum that feeds the paper
to the impression cylinder.
J. Guide
pin
When setting a narrow paper master which cannot
be set on the plate positioning pins, these pins are
used to position it.
K. Leading edge clamp open/close bolt
This
is
used when replacing the plate manually. The
leading edge clamp opens and closes by turning this
bolt.
K
