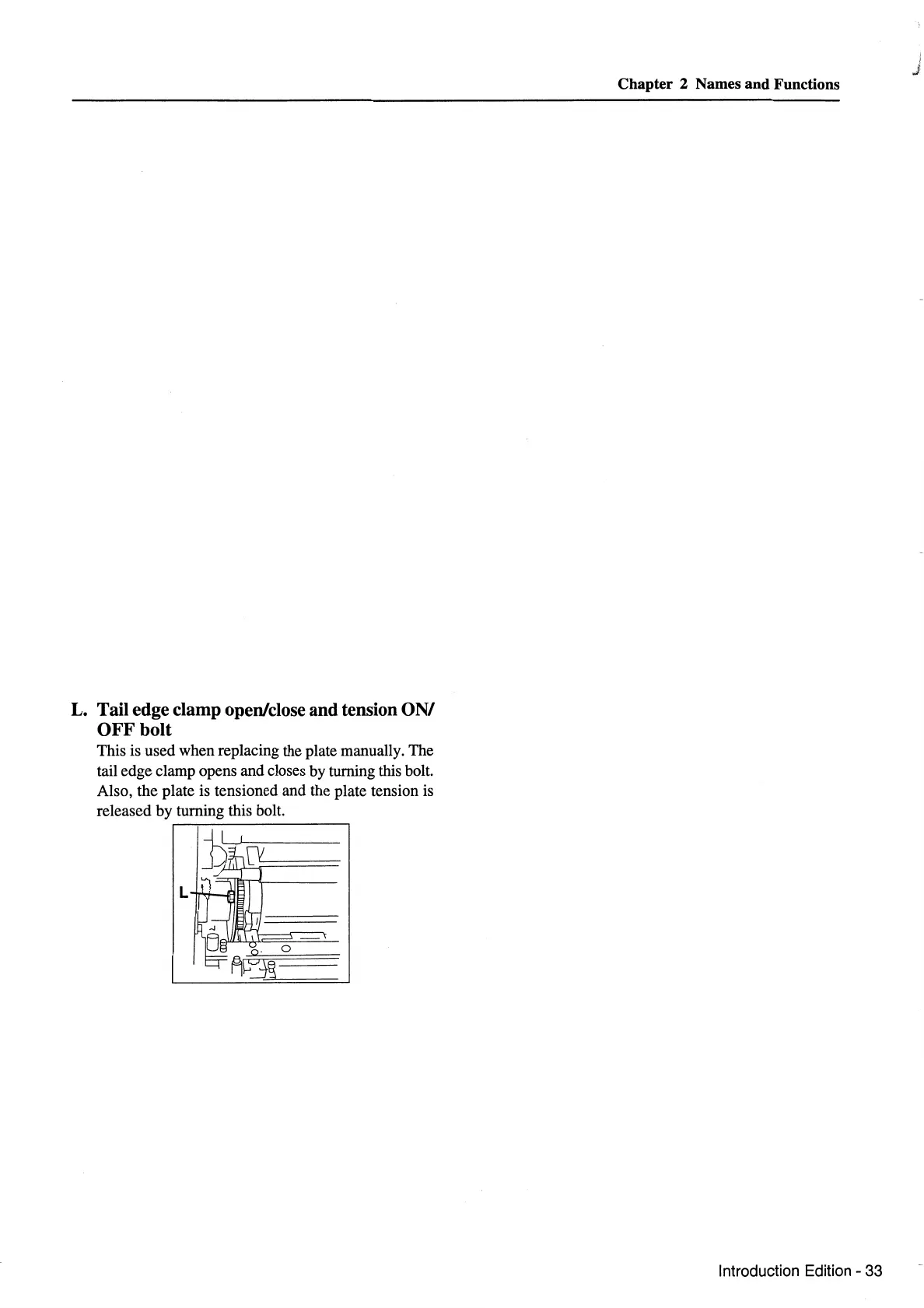

L.
Tail edge clamp open/close
and
tension ON/
OFF
bolt
This is used when replacing the plate manually. The
tail edge clamp opens and closes by turning this bolt.
Also, the plate is tensioned and the plate tension is
released by turning this bolt.
Chapter
2 Names
and
Functions
Introduction Edition - 33
