Chapter 2 Names and Functions

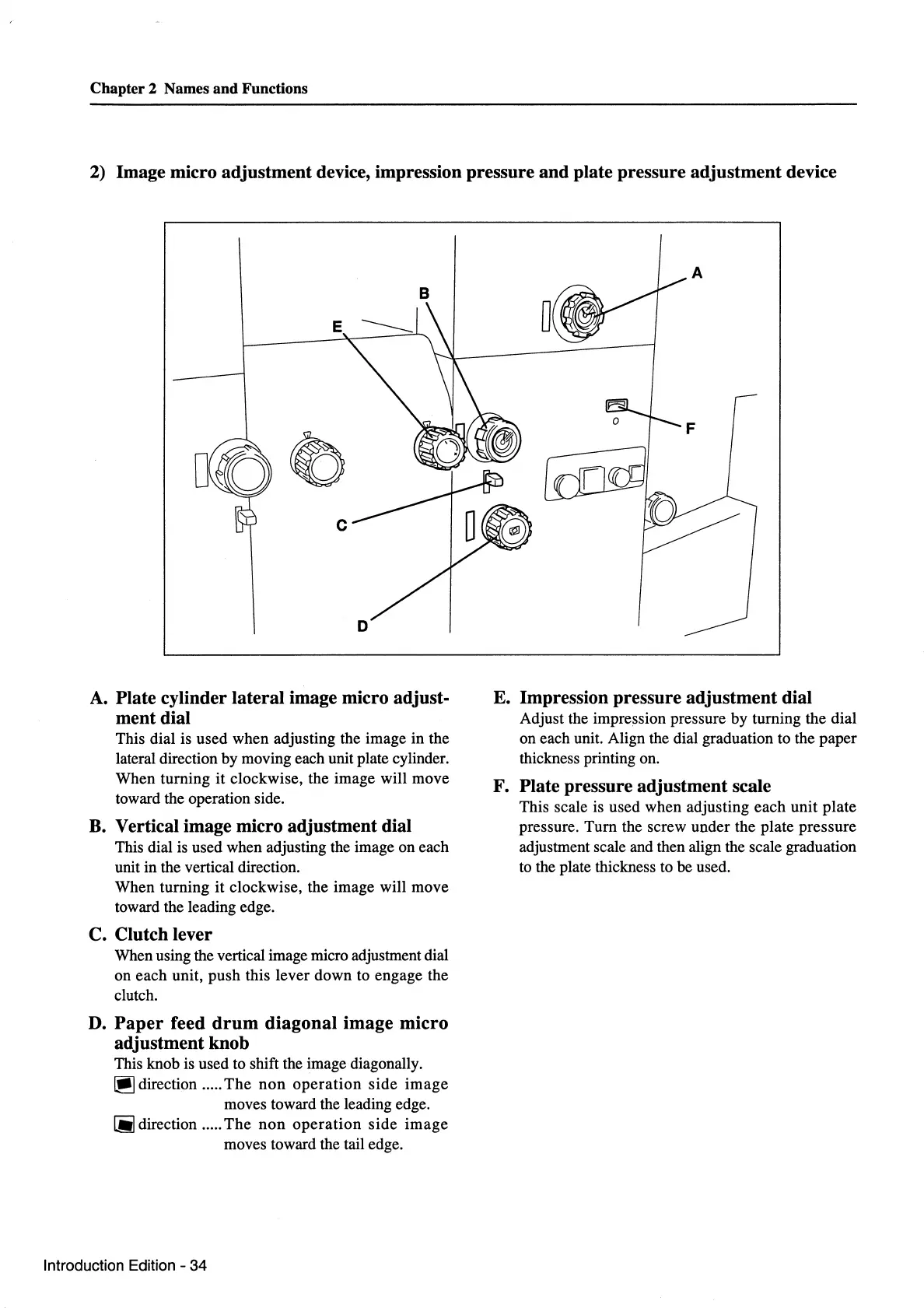

2) Image micro adjustment device, impression pressure and plate pressure adjustment device
B
E
c
A. Plate cylinder lateral image micro adjust-
ment dial
This dial is used when adjusting the image in the
lateral direction by moving each unit plate cylinder.
When turning it clockwise, the image will move
toward the operation side.
B. Vertical image micro adjustment dial
This dial is used when adjusting the image on each
unit in the vertical direction.
When turning it clockwise, the image will move
toward the leading edge.
C. Clutch lever
When using the vertical image micro adjustment dial
on each unit, push this lever down to engage the
clutch.
D. Paper feed drum diagonal image micro
adjustment knob
This knob is used to shift the image diagonally.
~ direction ..... The non operation side image
moves toward the leading edge.
[jiJ direction ..... The non operation side image
moves toward the tail edge.
Introduction Edition- 34
A
E. Impression pressure adjustment dial
Adjust the impression pressure by turning the dial
on each unit. Align the dial graduation to the paper
thickness printing on.
F. Plate pressure adjustment scale
This scale is used when adjusting each unit plate
pressure.
Tum the screw under the plate pressure
adjustment scale and then align the scale graduation
to the plate thickness to be used.
