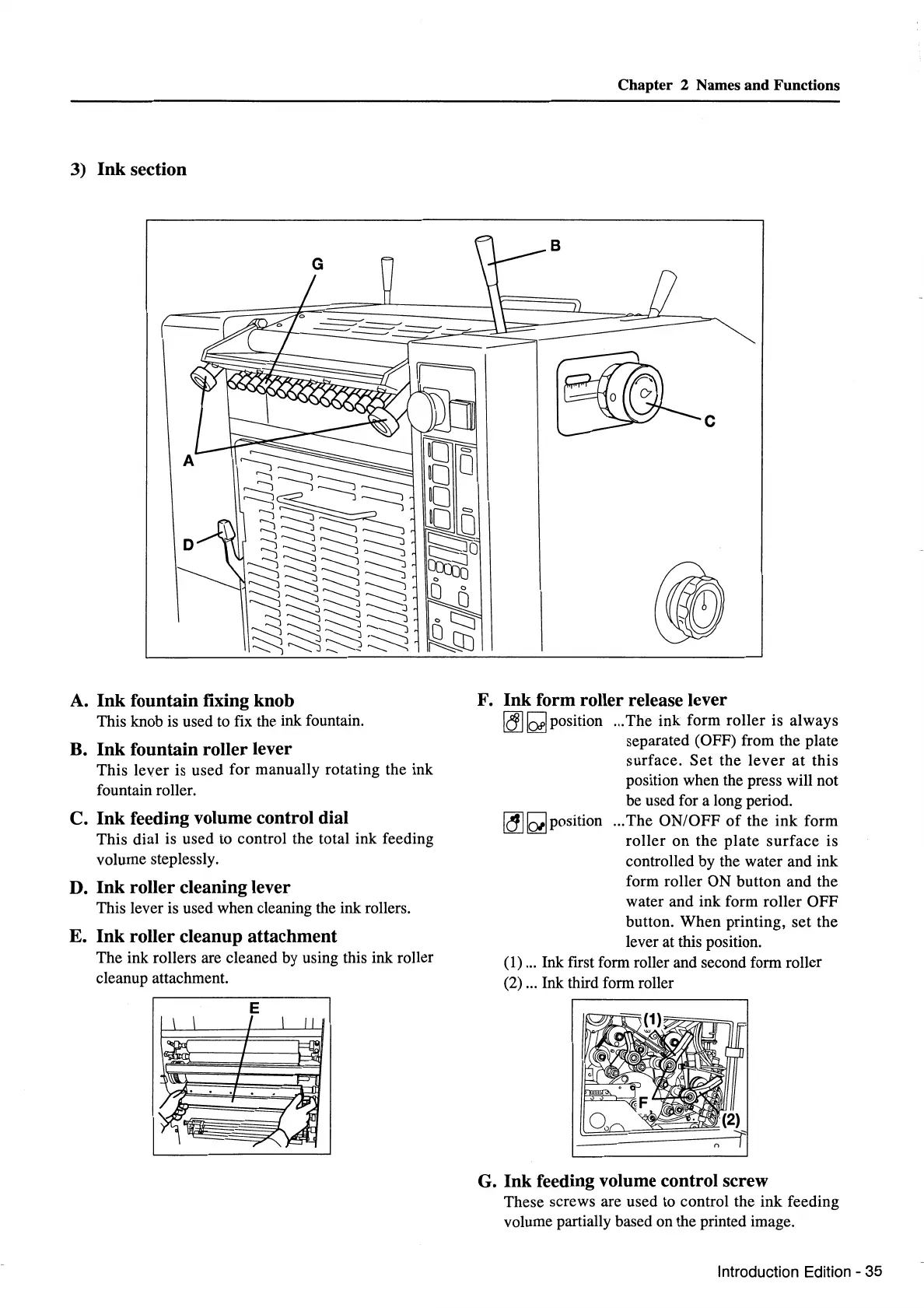

Ryobi 3302H - Ink Section Components

3) Ink section
A. Ink fountain fixing knob
This knob is used to fix the ink fountain.
B. Ink fountain roller lever
This lever is used for manually rotating the ink
fountain roller.
C. Ink feeding volume control dial
This dial is used to control the total ink feeding
volume steplessly.
D. Ink roller cleaning lever
This lever is used when cleaning the ink rollers.
E. Ink roller cleanup attachment
The ink rollers are cleaned by using this ink roller
cleanup attachment.
E
Chapter 2 Names and Functions
F. Ink form roller release lever
[d] t;j position ... The ink form roller is always
separated (OFF) from the plate
surface.
Set the lever at this
position when the press will not
be used for a long period.
~~position ... The ON/OFF of the ink form
roller on the plate surface is
controlled by the water and ink
form roller ON button and the
water and ink form roller OFF
button. When printing, set the
lever at this position.
(1) ... Ink first form roller and second form roller
(2)
... Ink third form roller
G. Ink feeding volume control screw
These screws are used to control the ink feeding
volume partially based on the printed image.
Introduction Edition - 35
