2 Names
and
Functions

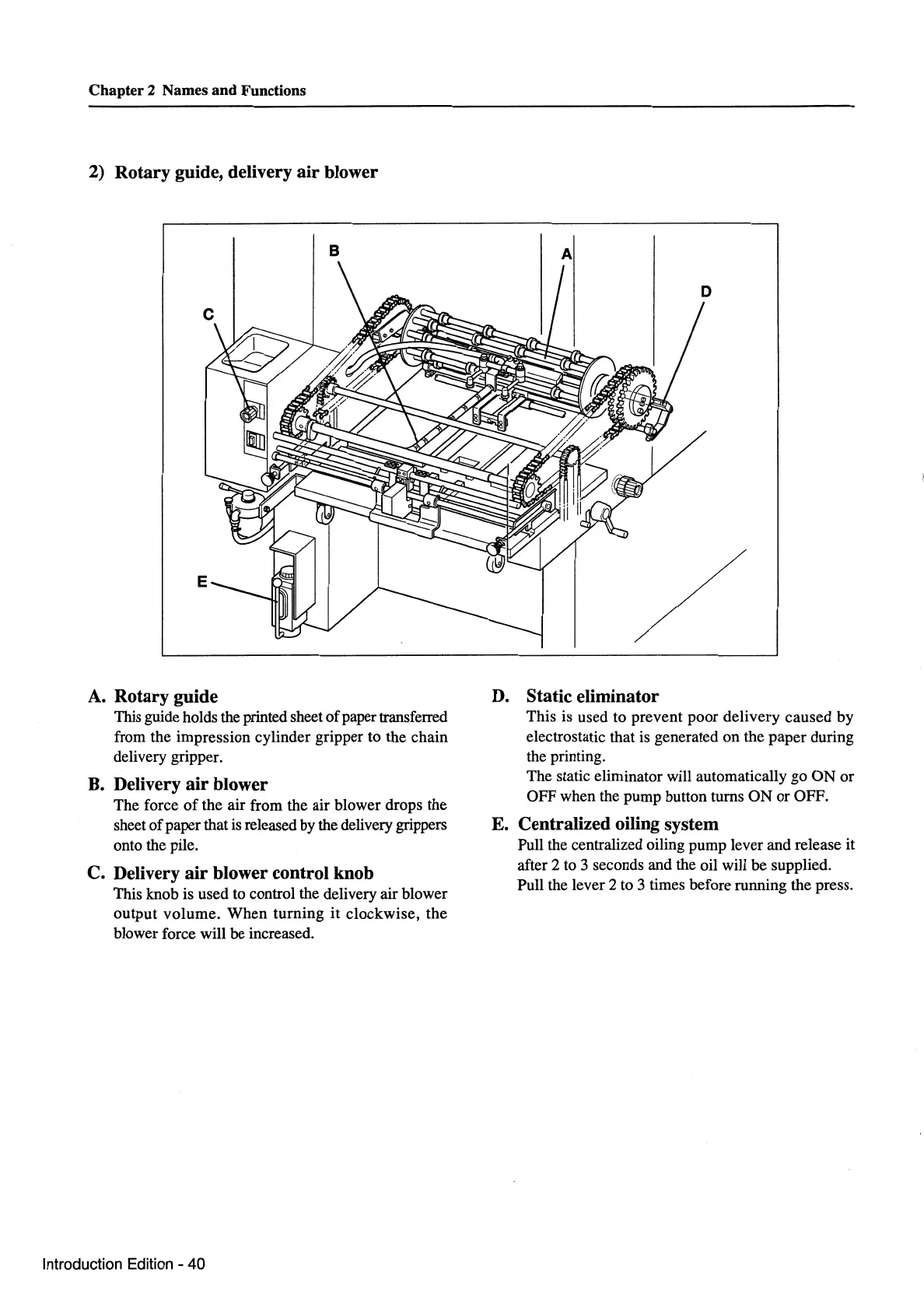

2) Rotary guide, delivery
air
blower
B
A.
Rotary guide
This guide holds the printed sheet
of
paper transferred
from the impression cylinder gripper to the chain
delivery gripper.
B. Delivery
air
blower
The force
of
the air from the air blower drops the
sheet
of
paper that
is
released by the delivery grippers
onto the pile.
C. Delivery
air
blower control knob
This knob is used to control the delivery air blower
output volume.
When
turning
it
clockwise, the
blower force will be increased.
Introduction Edition - 40
A
D.
Static eliminator
This is used to prevent
poor
delivery caused by
electrostatic that is generated on the paper during
the printing.
The static eliminator will automatically go
ON
or
OFF when the pump button turns
ON
or
OFF.
E. Centralized oiling system
Pull the centralized oiling pump lever and release it
after 2 to 3 seconds and the oil will be supplied.
Pull the lever 2 to 3 times before running the press.
