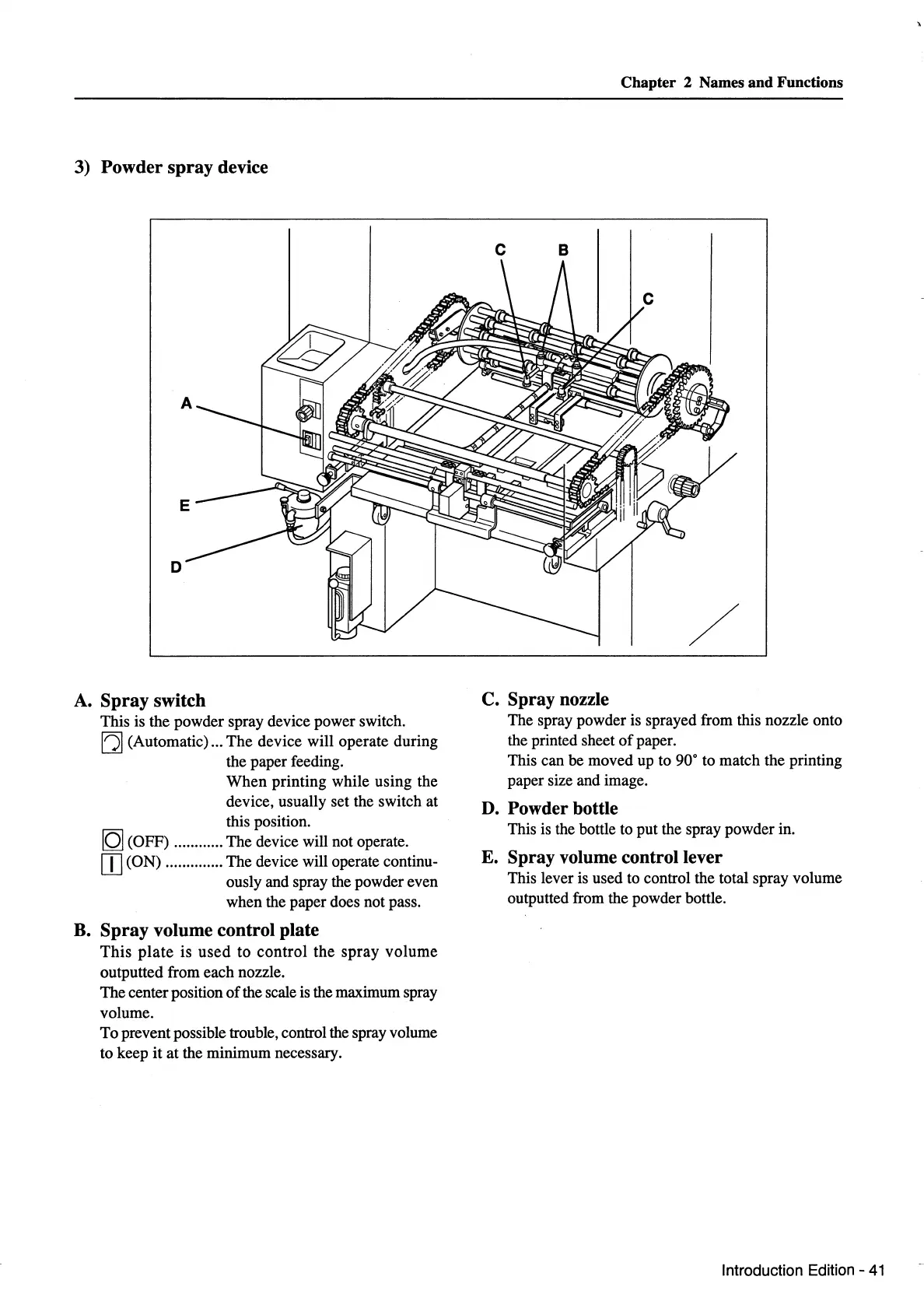

3) Powder
spray
device
D
A.
Spray
switch
This is the powder spray device power switch.
Q]
(Automatic) ...
The
device will operate during
the paper feeding.
When
printing while using the
device, usually set the switch at
this position.
[Q]
(OFF) ............ The device will not operate.
[[](ON)
.............. The device will operate continu-
ously and spray the powder even
when the paper does not pass.
B.
Spray
volume control plate
This
plate
is
used
to
control
the
spray
volume
outputted from each nozzle.
The center position
of
the scale is the maximum spray
volume.
To prevent possible trouble, control the spray volume
to keep
it
at
the minimum necessary.
Chapter 2 Names
and
Functions
C B
/
C. Spray nozzle
The spray powder is sprayed from this nozzle onto
the printed sheet
of
paper.
This can be moved up to 90° to match the printing
paper size and image.
D.
Powder bottle
This is the bottle to put the spray powder in.
E. Spray volume control lever
This lever is used to control the total spray volume
outputted from the powder bottle.
