S-TEC Fifty Five X - Straight-In vor Approach; AP Display, NAV APR Mode Engaged, Track vor Front Course Inbound

To Next Page

To Previous Page

3rd Ed. Sep 30, 06 3-23

S–TEC

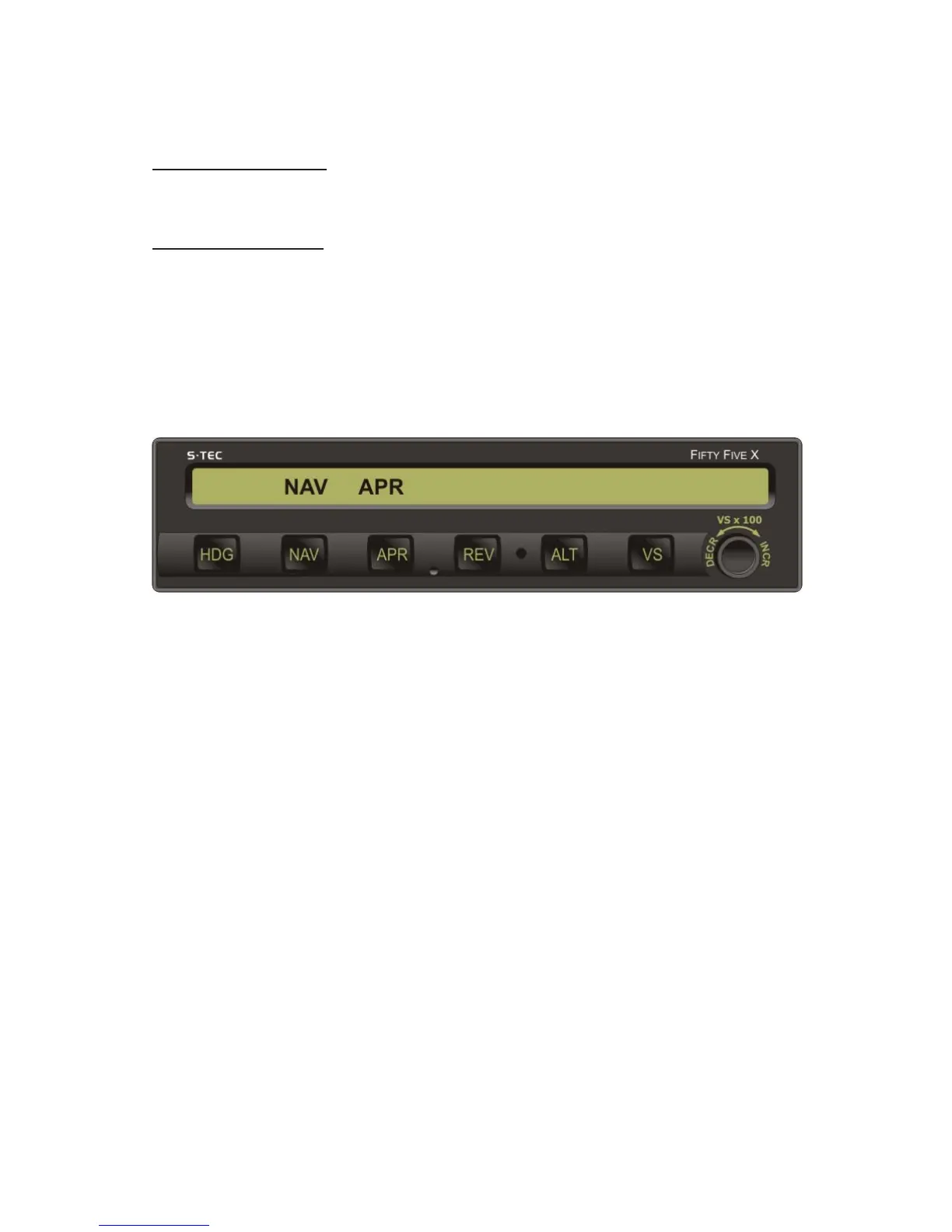

Fig. 3-29. AP Display, NAV APR Mode Engaged, Track VOR Front Course Inbound

3.3.4 Straight-In VOR Approach

Select the VOR frequency on the Navigation Receiver.

Heading System HSI

Set Course Pointer to FRONT INBOUND VOR course on compass card.

Heading System DG

Set Heading Bug and OBS to FRONT INBOUND VOR course on each respective

compass card.

Press the APR mode selector switch to engage the navigation approach mode.

The NAV and APR annunciations will appear as shown in Fig. 3-29, to acknowledge

that this mode is engaged. The autopilot will intercept and track the FRONT

INBOUND VOR course.

A summary pictorial of this procedure is shown in Fig. 3-30.
