S-TEC Fifty Five X - Yaw Damper Operation

3rd Ed. Sep 30, 06 3-33
S–TEC
3.5 Yaw Damper Operation
The optional Yaw Damper serves to dampen excessive adverse yaw. It operates
in either the AUTO mode or ON mode, depending upon the position of the Yaw
Damper Master Switch shown in Fig. 3-43.

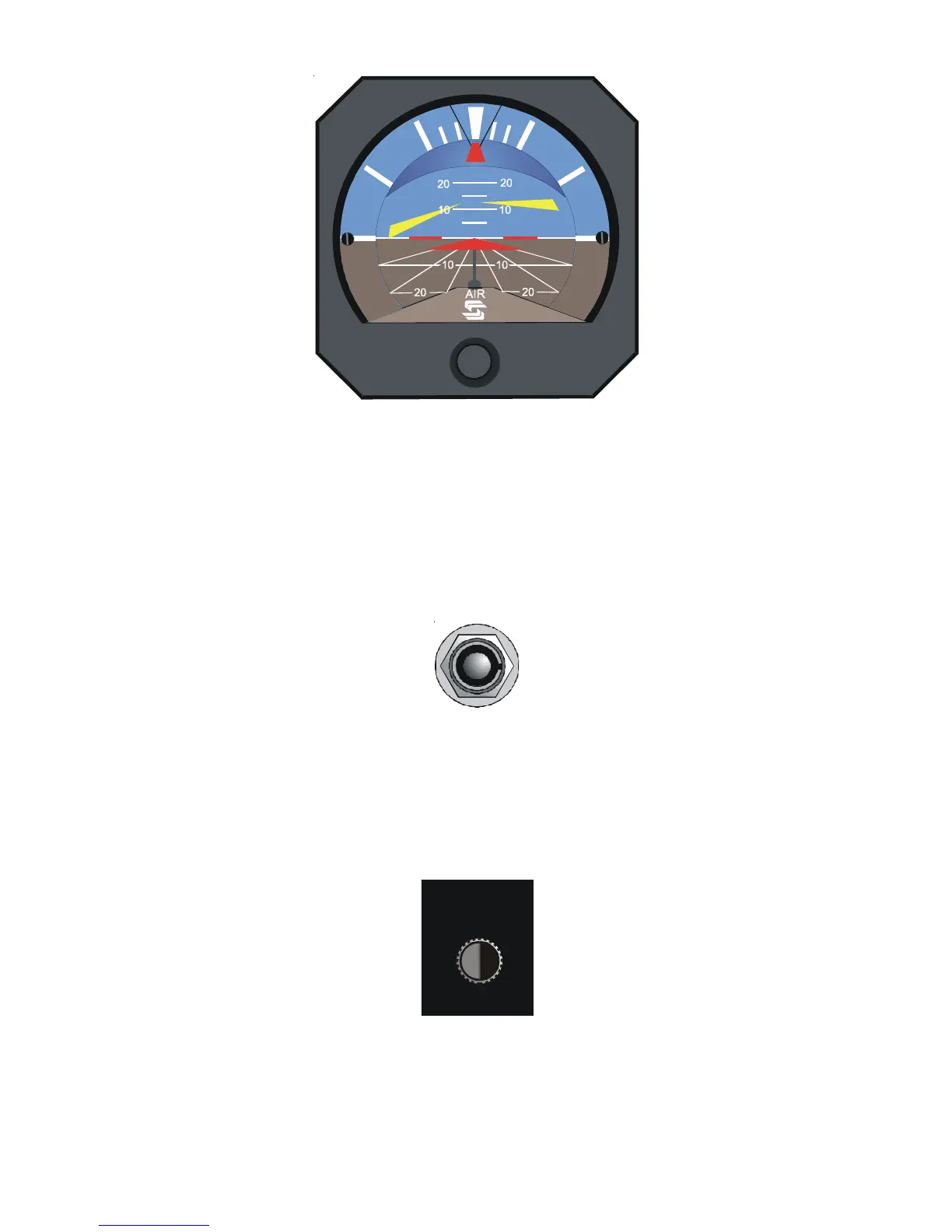

Fig. 3-42. FD Display, FD Mode Engaged
The Yaw Damper Trim Knob, shown in Fig. 3-44, is used to center the slip/skid
ball when the yaw servo is engaged.
Fig. 3-43. Yaw Damper Master Switch
ON
AUTO
OFF
TRIM
YAW
DAMPE
R
Fig. 3-44. Yaw Damper Trim Knob
