S-TEC Fifty Five X - LOC Approach with Procedure Turn

To Next Page

To Previous Page

3rd Ed. Sep 30, 06 3-27

S–TEC

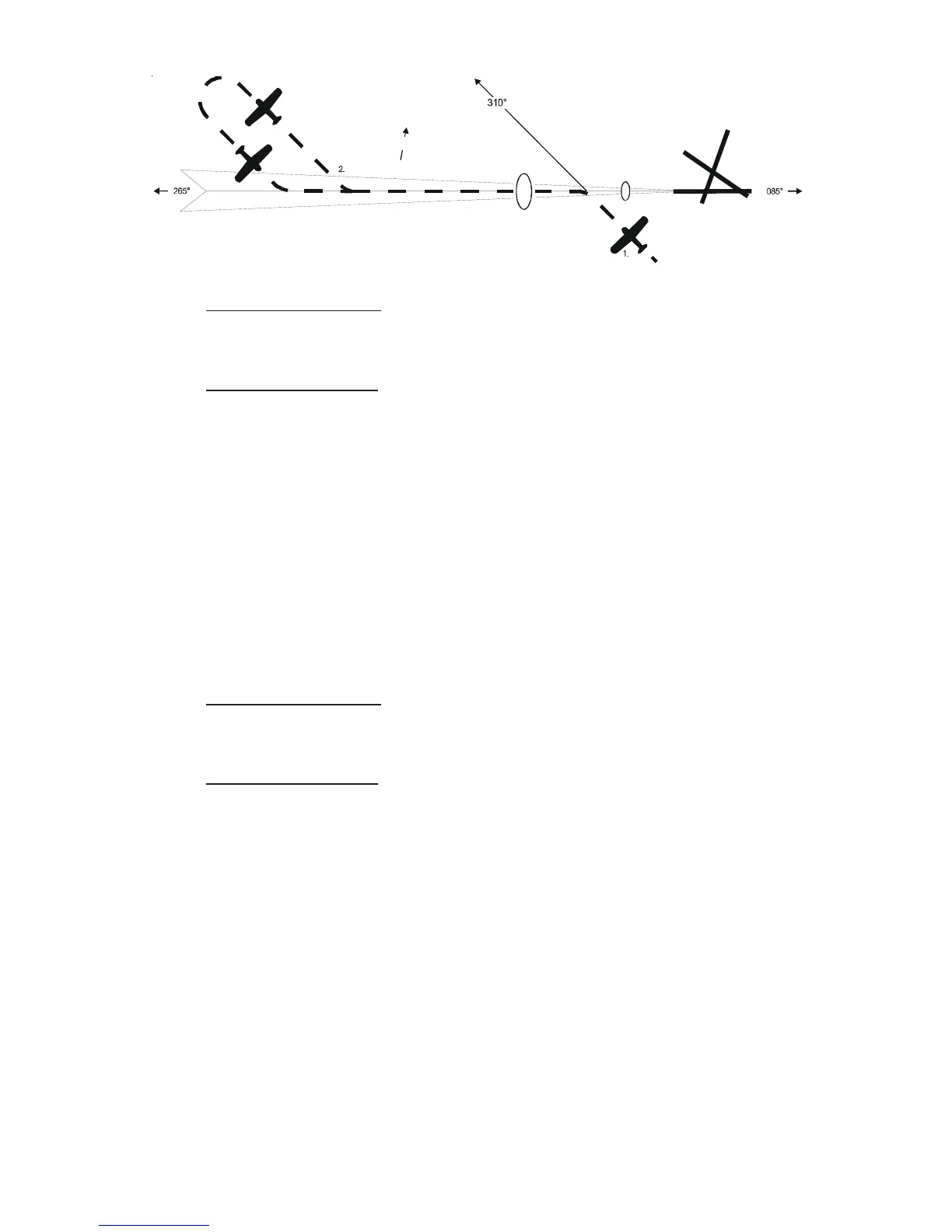

Fig. 3-33. LOC Approach with Procedure Turn

1. a. Select LOC frequency.

Heading System HSI

Set Course Pointer to FRONT INBOUND LOC course.

Heading System DG

Set Heading Bug to BACK INBOUND LOC course.

c. Press REV mode selector switch to engage reverse approach mode.

d. Intercept and track FRONT OUTBOUND LOC course.

2. a. At appropriate time, set Heading Bug to FRONT OUTBOUND PROCEDURE

TURN heading.

b. Press HDG mode selector switch to engage heading mode.

3. a. Turn Heading Bug in two successive 90° increments, to establish aircraft

on FRONT INBOUND PROCEDURE TURN heading.

4. a.

Heading System HSI

Course Pointer remains unchanged.

Heading System DG

Set Heading Bug to FRONT INBOUND LOC course.

b. Press NAV mode selector switch to engage navigation approach mode.

c. Intercept and track FRONT INBOUND LOC course.

d. At middle marker, if missed approach is declared, disconnect autopilot.

e. Stabilize aircraft.

f. Set Heading Bug to missed approach heading.

g. Press HDG mode selector switch to engage heading mode.

310°

130°
