3rd Ed. Sep 30, 06 3-25

S–TEC

3.3.5 LOC Approach with Procedure Turn

Select the LOC frequency on the Navigation Receiver.

Heading System HSI

Set Course Pointer to FRONT INBOUND LOC course on compass card.

Heading System DG

Set Heading Bug to BACK INBOUND LOC course on compass card.

Press the REV mode selector switch to engage the reverse approach mode.

The REV and APR annunciations will appear as shown in Fig. 3-31, to acknowledge

that this mode is engaged. The autopilot will intercept and track the FRONT

OUTBOUND LOC course. If the heading system is a DG, then the autopilot will

fly the aircraft in the direction opposite to that of CDI needle deflection.

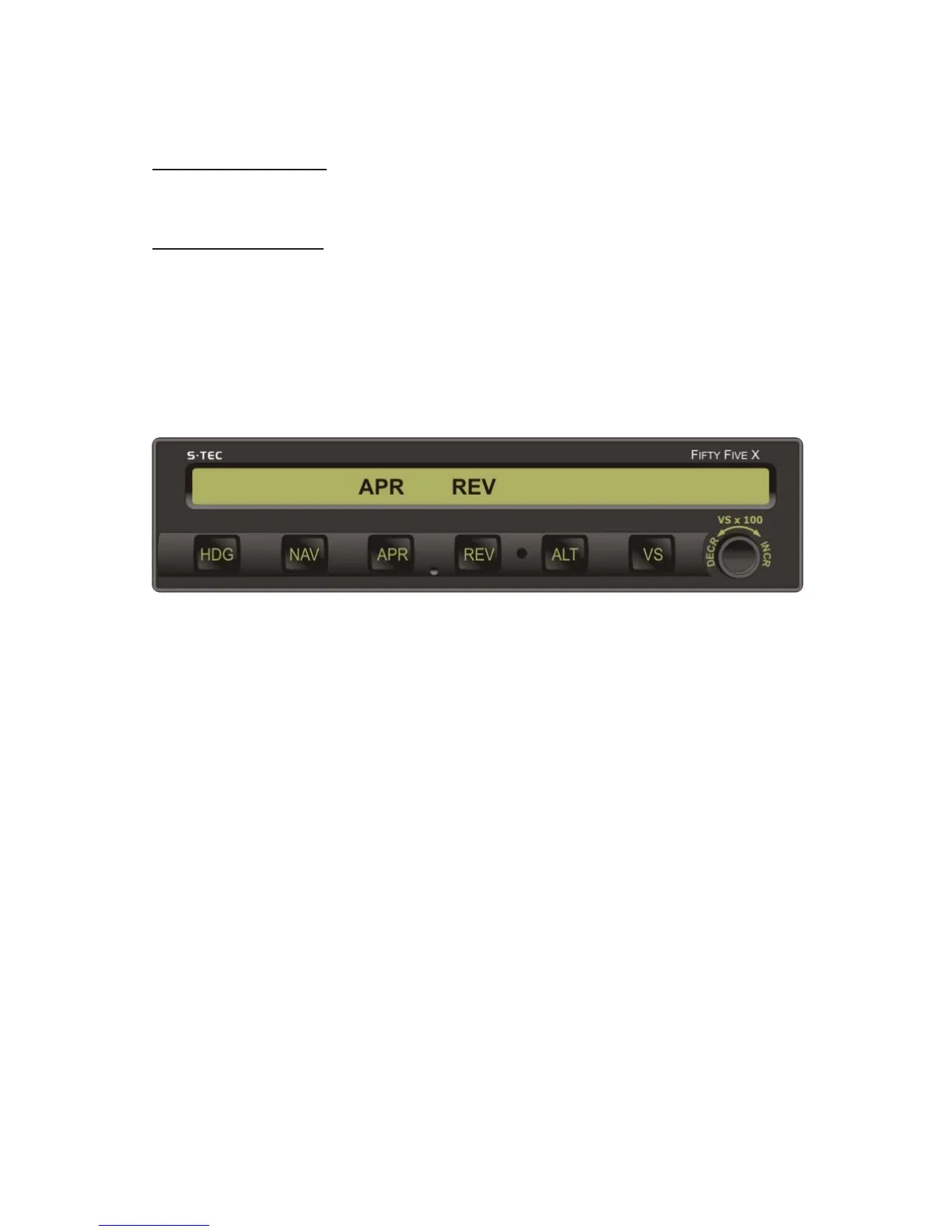

Fig. 3-31. AP Display, REV APR Mode Engaged, Track LOC Front Course Outbound
