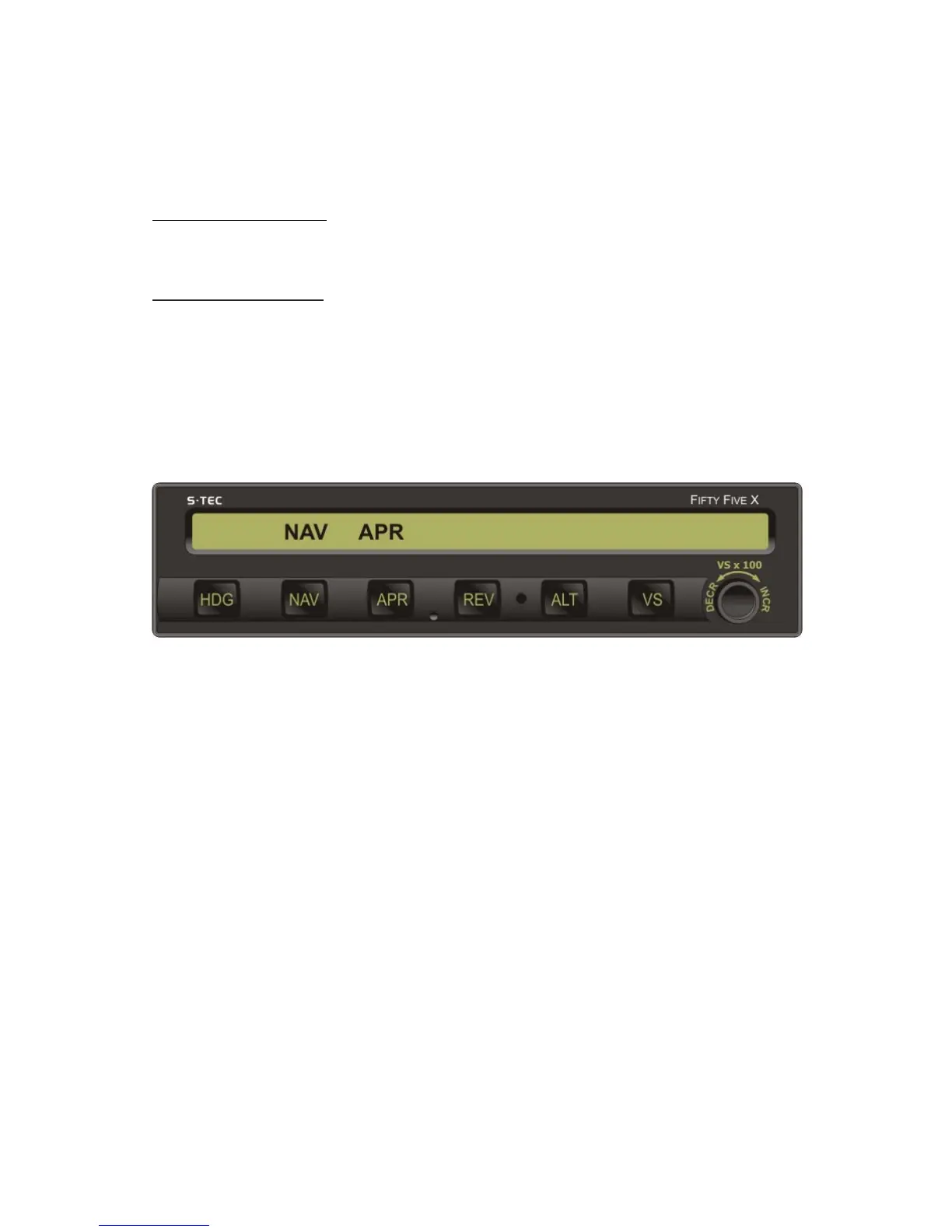

Fig. 3-35. AP Display, NAV APR Mode Engaged, Track VOR Front Course Inbound
A summary pictorial of this procedure is shown in Fig. 3-36.
At the appropriate time, set the Heading Bug to the FRONT OUTBOUND
PROCEDURE TURN heading, and then press the HDG mode selector switch to
engage the heading mode. Hold this heading until the point at which it is time to
turn the aircraft again. At that point, turn the Heading Bug in two successive 90°
increments, to establish the aircraft on the FRONT INBOUND PROCEDURE
TURN heading.
Heading System HSI
Course Pointer remains unchanged on compass card.
Heading System DG
Set Heading Bug and OBS to FRONT INBOUND VOR course on each respective
compass card.
Press the APR mode selector switch to engage the navigation approach mode.
The NAV and APR annunciations will appear as shown in Fig. 3-35, to
acknowledge that this mode is engaged. The autopilot will intercept and track
the FRONT INBOUND VOR course.
