3rd Ed. Sep 30, 06 2-15

S–TEC

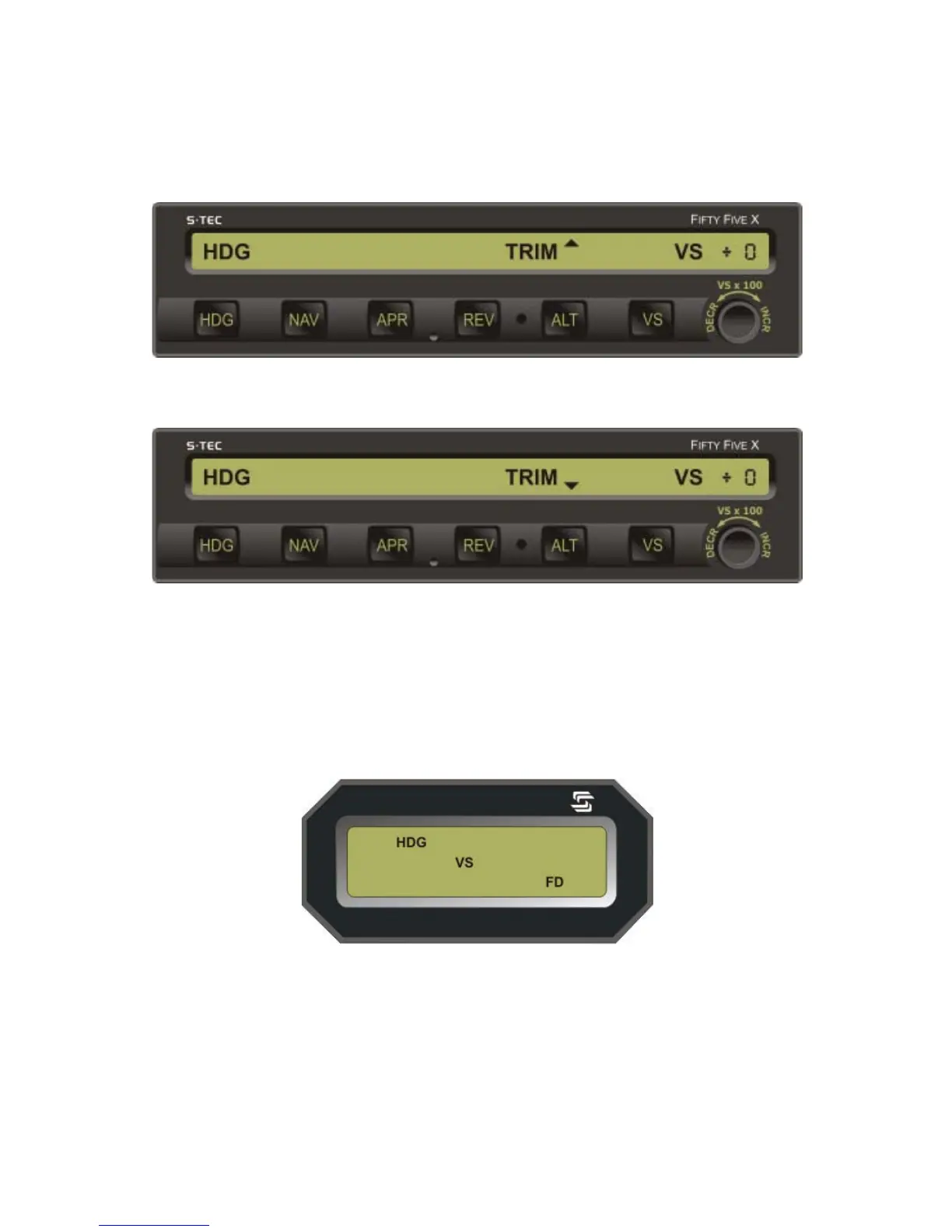

Fig. 2-13. AP Display, Automatic Trim Advisements (Pre-Flight)

a. HDG and VS Modes Engaged, 0 FPM, TRIM UP in Progress

b. HDG and VS Modes Engaged, 0 FPM, TRIM DN in Progress

Fig. 2-14. Remote Annunciator Display, HDG, VS, and FD Modes Engaged (Pre-Flight)
