7. Disassembling the grinder motor
a) If the motor has to be exchanged perform according to description 6.
Disassembling the grinder first. Remove the three fixing screws (1), and set
the doser switch to max position.

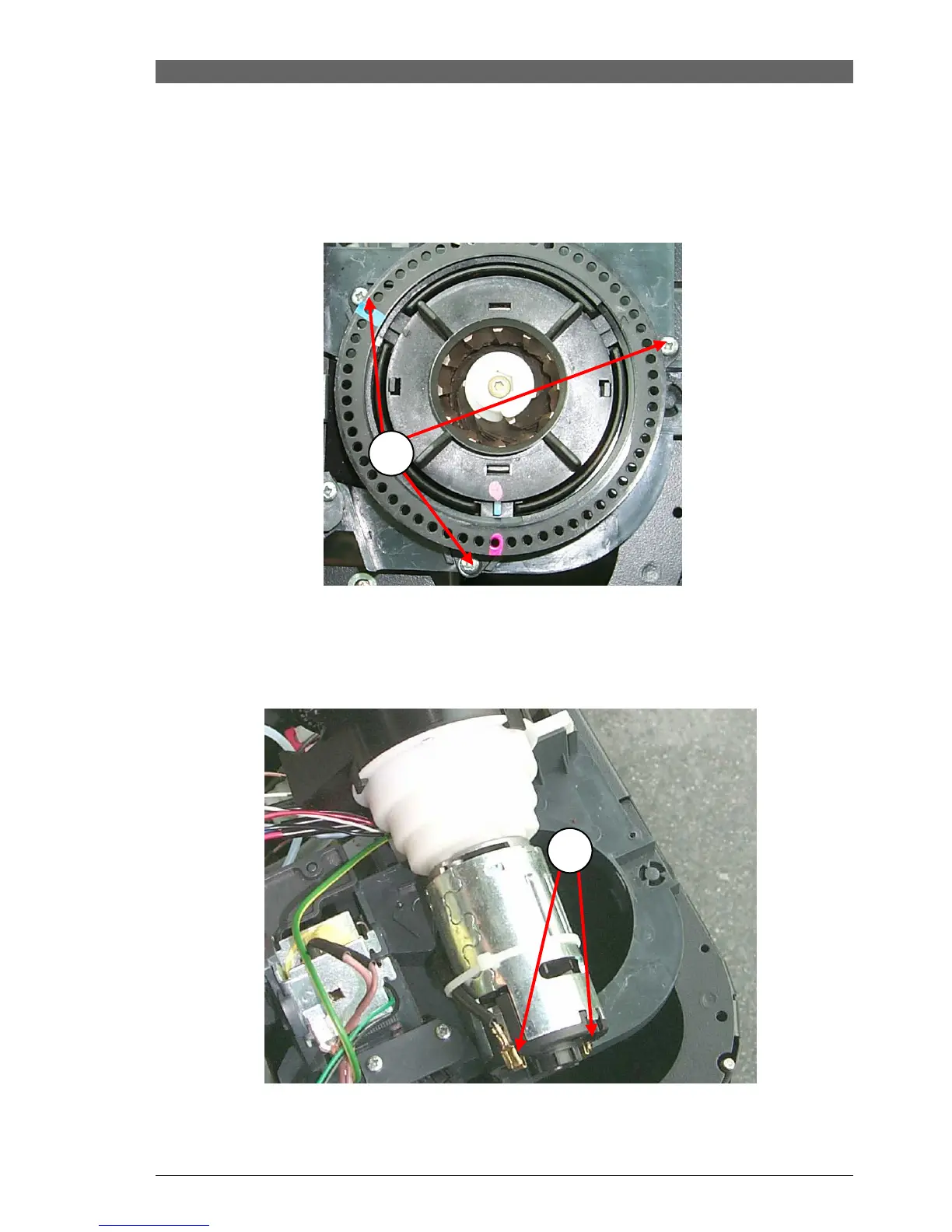

Fig. 17
b) Lift the motor and disconnect the connectors (1).
Fig. 18
