ROYAL 9. DISASSEMBLY
Saeco International Group REV.4 SEPT.2003 Seite 17/20
10. Assembly/adjustment of instantaneous water heater
a) Screw on the instantanous water heater, but do not fasten the screws
completely. Insert the brew unit and drive it into brew position using the test
mode. Fasten the lower fixing screw (1).

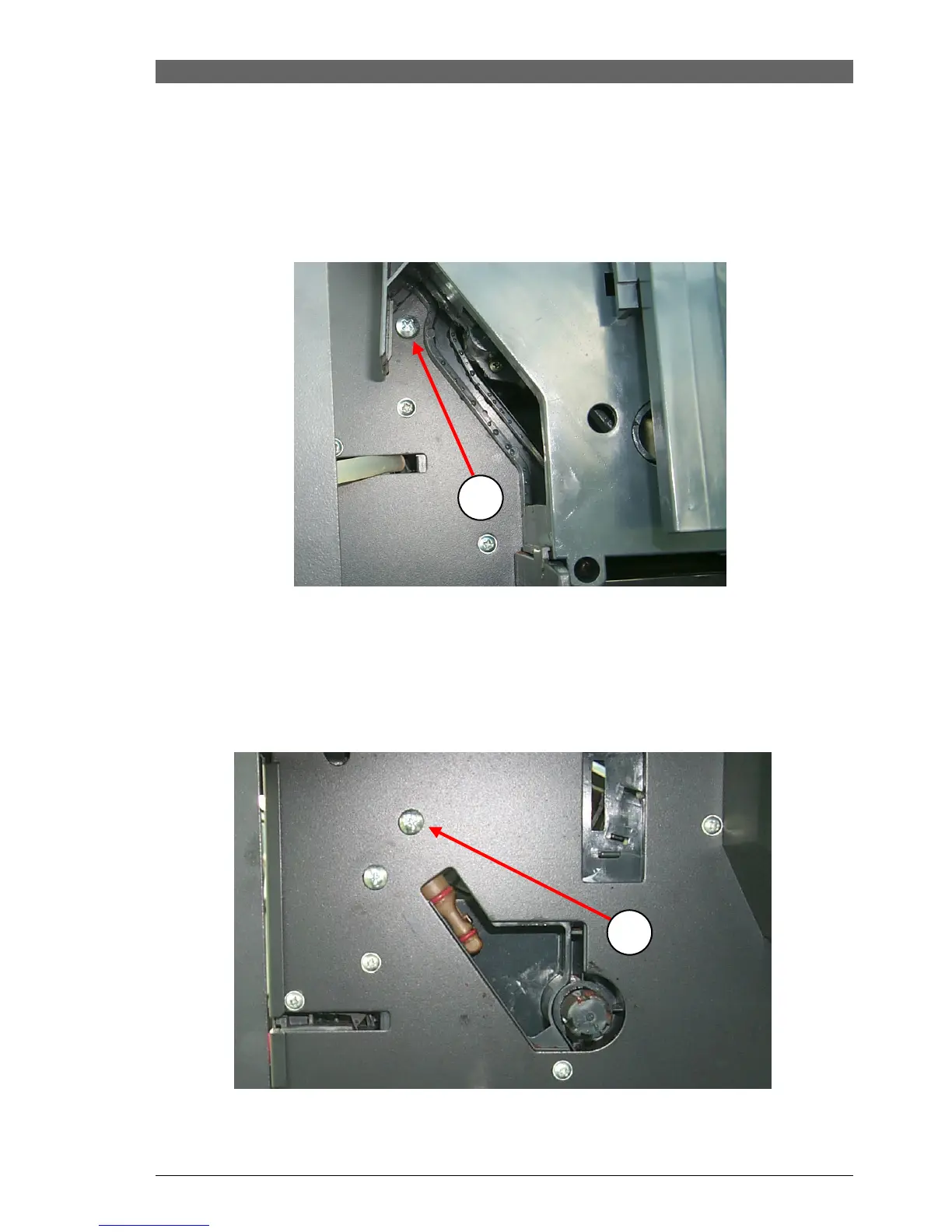

Abb. 28
b) Drive the brew unit into home position, remove the brew unit and fasten the
upper screw (1). (Attention: Boiler J is fixed with three screws)
Abb. 29
