Saeco Classic - Disassembling of the Gear

ROYAL 9. DISASSEMBLY
Saeco International Group REV.4 SEPT.2003 Seite 15/20

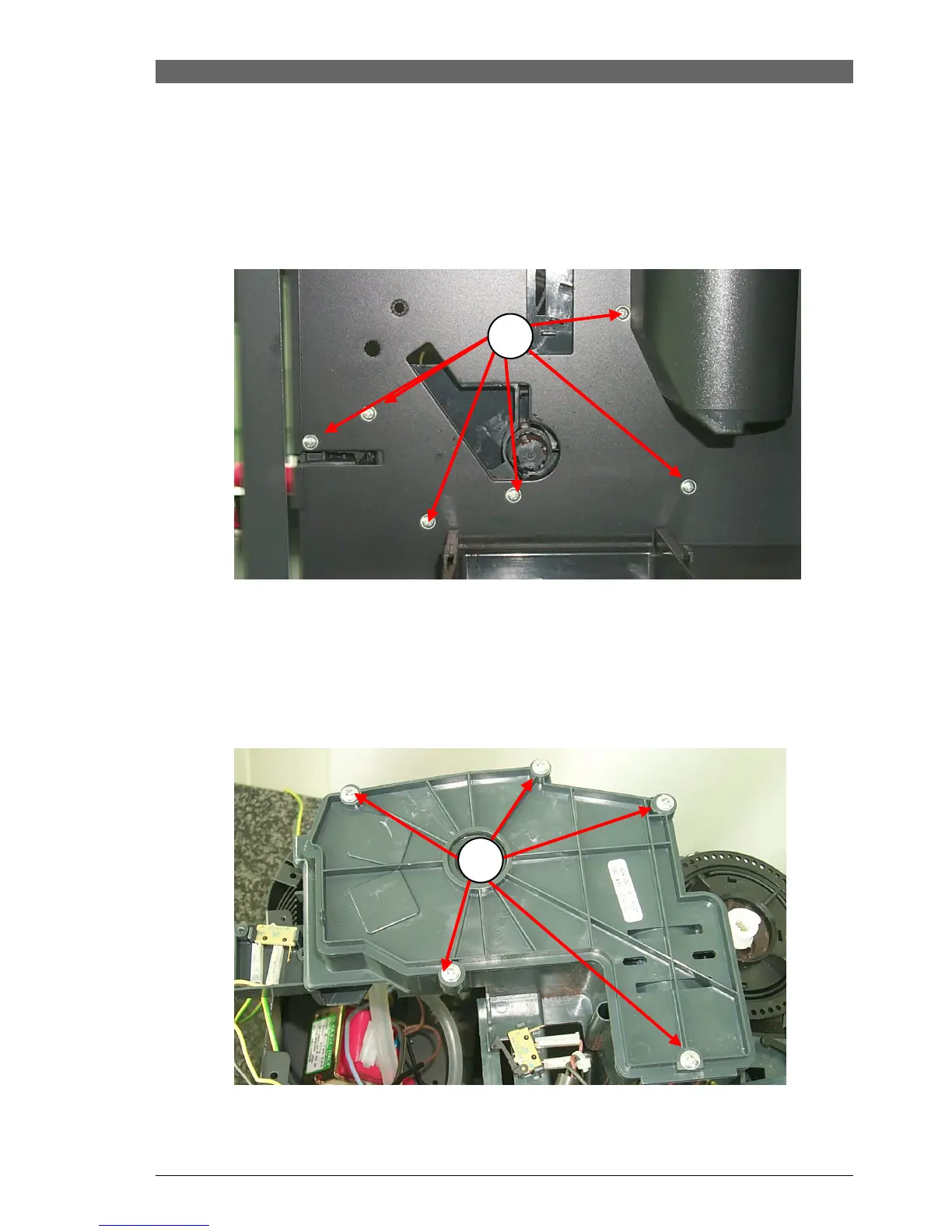

9. Disassembling of the gear
a) Remove the housing
b) Remove loosen the instantaneous water heater
c) Remove the gear fixing screws (1).
Fig. 25
d) Remove the gear by lifting it a bit – pulling out the bottom side of the gear
first, and thereafter the upper side. Unscrew the screws of the gear cover and
remove the cover.
Abb. 26
Fig. 26
1
1
