Saeco Classic - Disassembling the Pump

9. DISASSEMBLY ROYAL
Seite 18/20 REV.4 SEPT.2003 Saeco International Group
11. Disassembling the pump

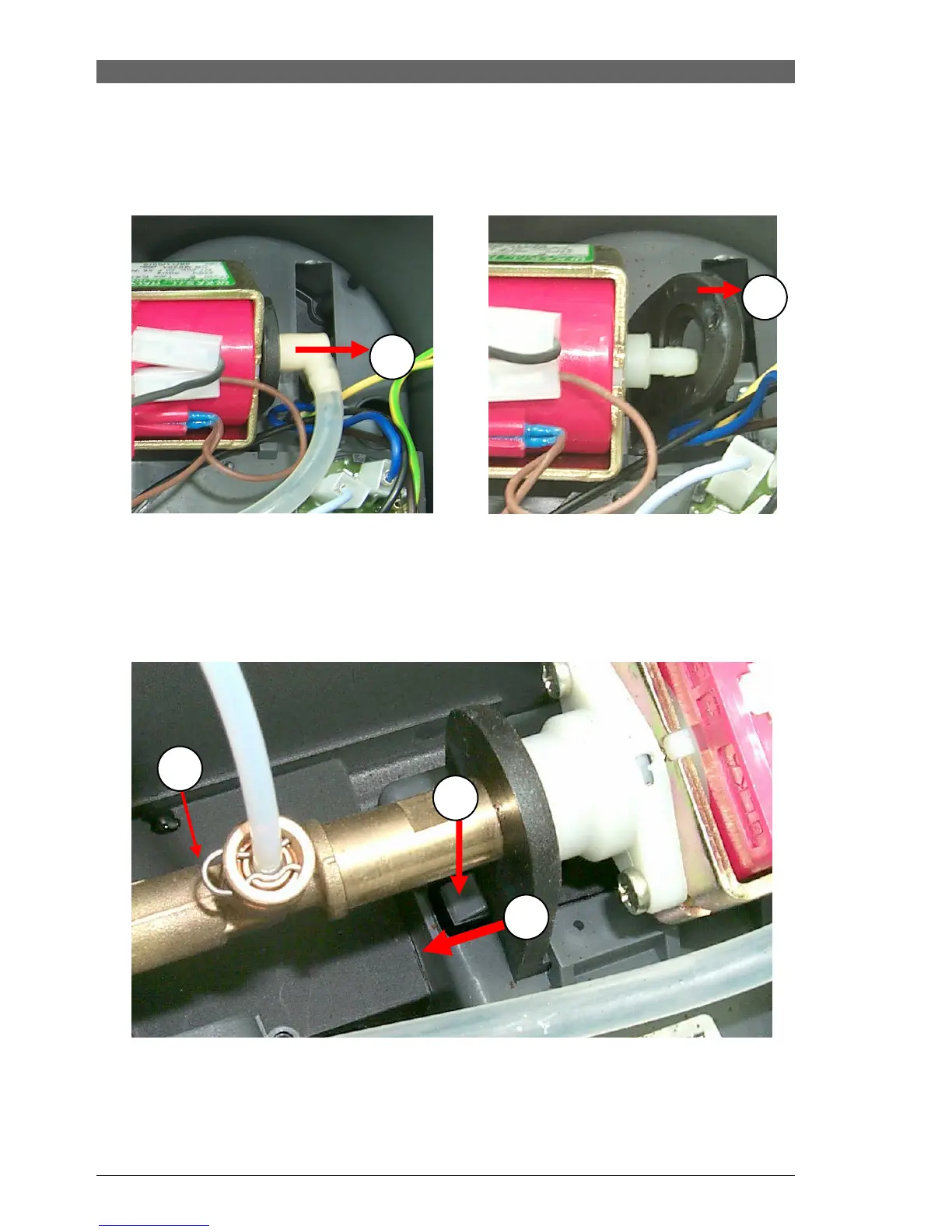

a) Pull off the adapter angle (1) and pump holder (2).
Abb. 30 Abb. 31
b) Remove the locking spring (1).
c) Push down the fixing tab (2) and remove pump and holder (3).
Abb. 32
1
2
2
3
1
