Saeco TALEA - 4.1.1 Odea Go Water System

Saeco Intrnational Group Page 1 / 14
TALEA / ODEA - LINE 04 FUNCTIONAL PRINCIPLES
4.1.1 Odea Go water system
Caldaia 1
Rubinetto
Gruppo
Pompa EP5
Serbatoio
Turbina
Perno Caldaia
con spillo
Valvola
sicurezza
Odea Go
• Conventional water system
• Flowmetre - cup capacity / ventilation display
• Reciprocating piston type pump (13 - 15 bar)
• Overpressure valve (opening pressure 18 - 20 bar).
• Boiler (= continuous-fl ow heater) 1300 W
• Valve pin (mechanical valve opener)
• Hot water / steam valve (switch between coffee / hot water, steam output)

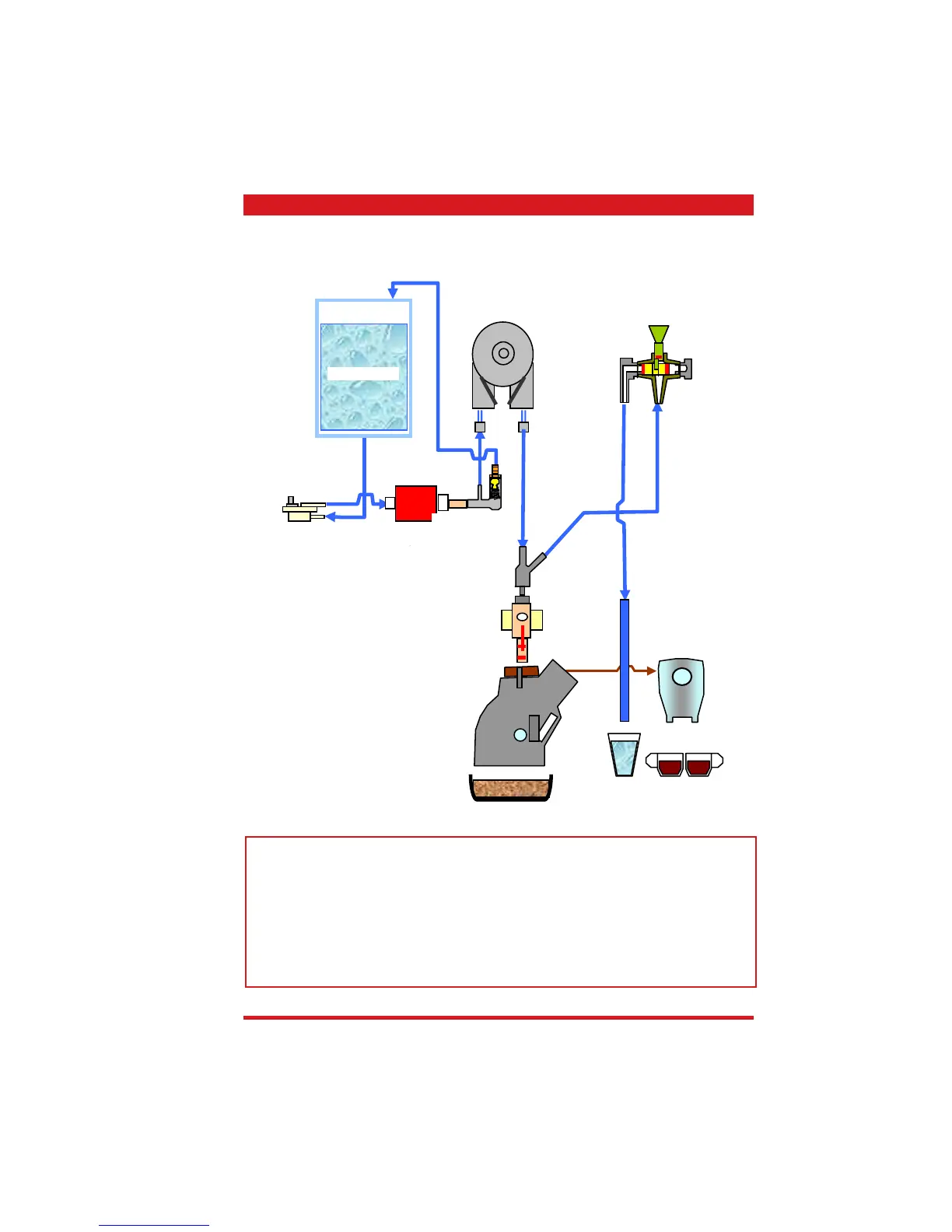

Pump
Flowmetre
Water tank
Boiler
Hot water /
steam valve
Brewing unit
Valve pin
Overpressure
valve
