Saeco TALEA - Gear Motor Device

Page 4 / 13 Saeco International Group
07 DISASSEMBLY TALEA / ODEA - LINE

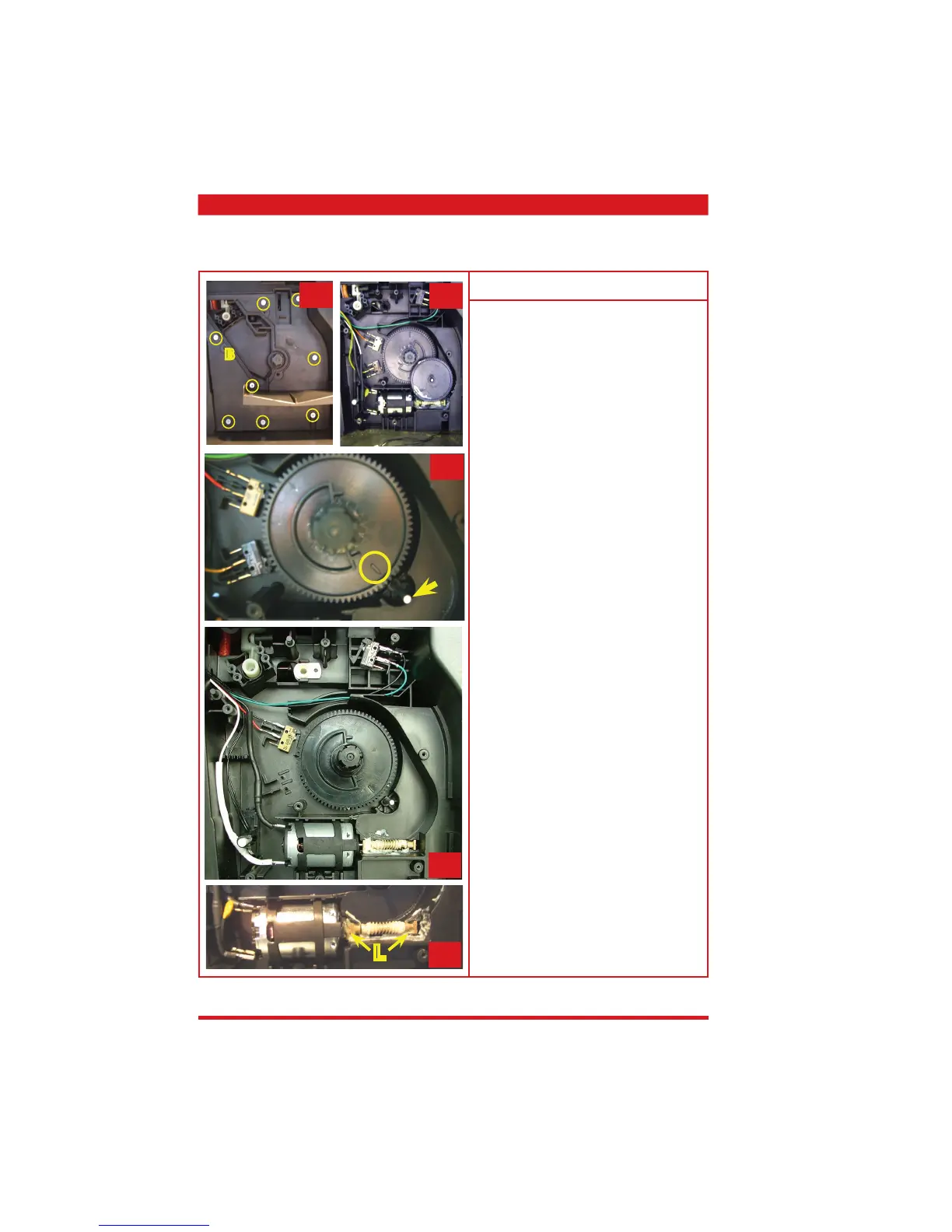

7.5. Gear motor device
To disassemble the gears
B
1
L
5
3
2
Fig. 1
• Remove the screws shown.
• Remove the gear cover.
Caution: The sensor of the residual
water tray is fi tted to the gear cover
(unplug).
Fig. 2
• If one of the gear wheels is damaged,
replace both wheels.
• If one of the microswitches is defective,
always replace both microswitches.
Fig. 3
• Gearing mechanism with 2
microswitches.
• When mounting the large gear wheel,
take care that the arrow on the gear
wheel is aligned to the axis of the
small double toothed gear wheel.
Fig. 5
• When assembling the motor, make
sure the bearing is fi tted correctly (L).
Fig. 4
• Single micro version.
• Install as shown in Fig. 3.
4
