07 DISASSEMBLY TALEA / ODEA - LINE
To disassemble/adjust the grinding disc
7.11. Grinders

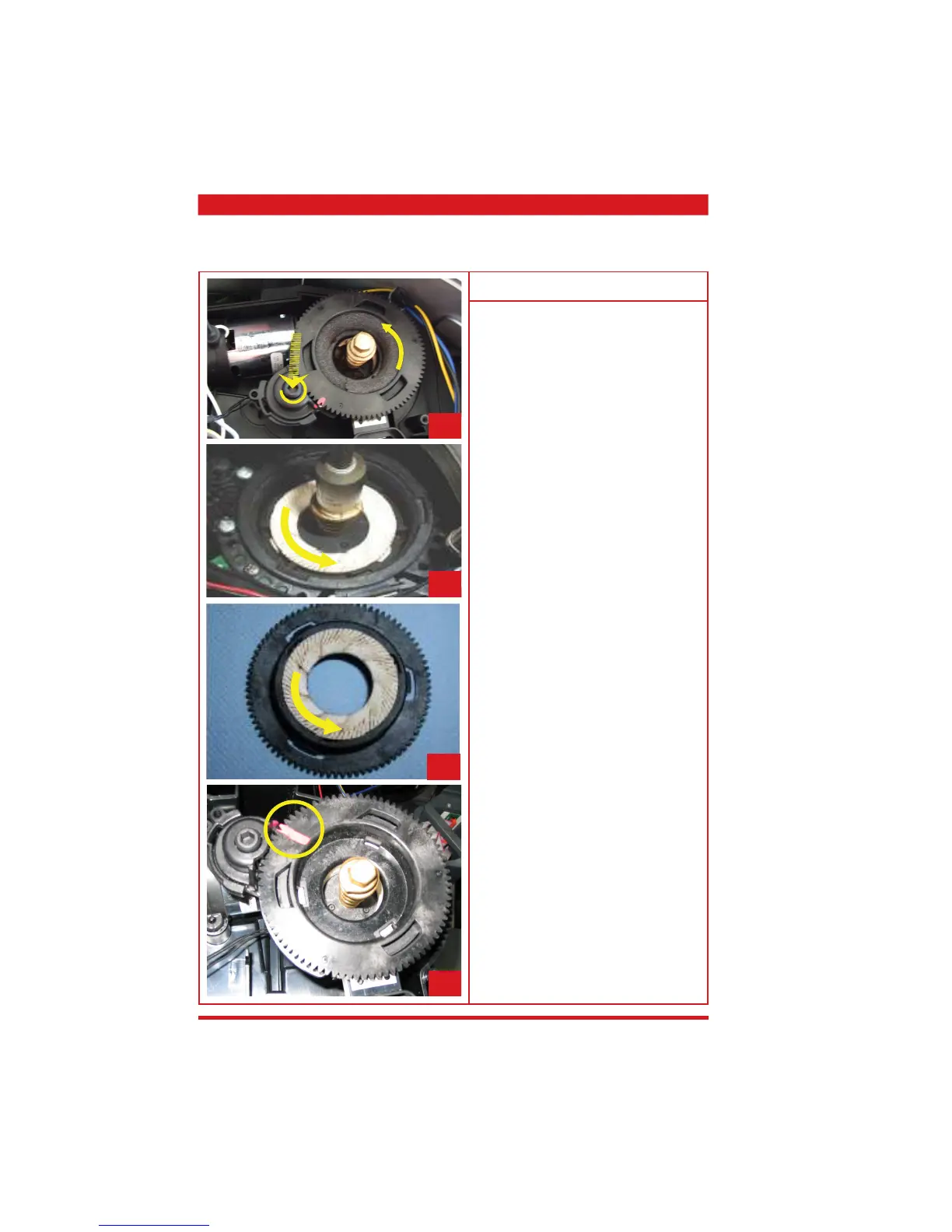

Fig. 1
• Press against the grinding level setting
axis and then turn the grinding disc
support anticlockwise until it stops,
then remove it.
Fig. 2
1. Turn the grinding disc anticlockwise
out of the support.
Fig. 3
• Turn the grinding disc anticlockwise
out of the support. The bayonet con-
nections can be accessed from the rear
side.
Fig. 4
1. In the start position, both markings
must be aligned.
1
2
3
4
